Hakam
Explorer II
Aug 16, 2024 8:38 AM UTC
Question

Web Filtering- Slow page loading.

We are currently experiencing an issue with slow page loading when web filtering is enabled at the policy level. When web filtering is disabled, the page loading speed is normal. The issue occurs on all websites especially first time browsing any websites, with load times ranging from 5 to 20 seconds.

26 replies

jintrah_FTNT
Staff
Staff
Aug 16, 2024 11:35 AM UTC

Hi,

Could you please let know the firmware version used? And also the output of #diag debug rating



Best regards,

Jin

Translate
Hakam
HakamAuthor
Explorer II
Aug 19, 2024 12:58 AM UTC

Hi, Firewall version v7.2.7 build1577

Translate
AlexC-FTNT
Staff
Staff
Aug 16, 2024 11:47 AM UTC

Did you check your DNS server config? (System / DNS)
Make sure you are using a server with low latency. Note also that DOH / DOT server may be slower.

If this doesn't solve it, check the latency to webfiltering server (diag debug rating) Check more here:
Troubleshooting Tip: Unable to connect to FortiGuard servers

Translate
Hakam
HakamAuthor
Explorer II
Aug 19, 2024 1:02 AM UTC

I don,t think DNS. Because when disable the webfilter, The connection speed is normal.

Translate
apFortinet
Staff
Staff
Aug 16, 2024 12:54 PM UTC

Hi Hakam,



Please refer below article as it seems much more similar to issue you have described:

https://community.fortinet.com/t5/FortiGate/Troubleshooting-Tip-Web-pages-not-loading-or-taking-too-long-to/ta-p/31395



Cheers,

Ankit

If you have found a solution, please like and accept it to make it easily accessible to others.



Translate
Hakam
HakamAuthor
Explorer II
Aug 19, 2024 1:18 AM UTC

HI ap,
I already done with option 2.

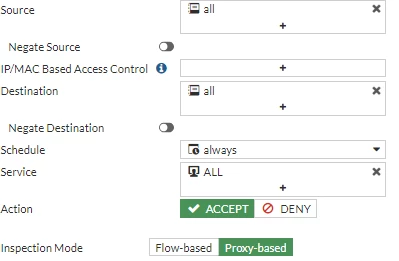

Screenshot 2024-08-19 091421.png



When Proxy based apply, like all websites can't be access..

Translate
kumarh
Staff
Staff
Aug 16, 2024 1:10 PM UTC

Kindly check when issue occur is there any spike in CPU or Memory usage? Also, what is the inspection you are using in web-filter and in firewall policy? Try to change it and check number of session utm is using. You can refer below document : https://docs.fortinet.com/index.php/document/fortigate/6.2.5/cookbook/963365/checking-the-number-of-sessions-that-utm-proxy-uses

Translate
Hakam
HakamAuthor
Explorer II
Aug 21, 2024 2:42 AM UTC

no CPU and memory spike.

Translate
VinayHM
Staff
Aug 17, 2024 9:49 AM UTC

Hi

Please check with flow-based mode on the policy.



Regards,



Translate
Hakam
HakamAuthor
Explorer II
Aug 21, 2024 2:41 AM UTC

Already check.. no issue.

Translate
sw2090
SuperUser
SuperUser
Aug 21, 2024 6:31 AM UTC

I also currently have slow internet and timout issues on some 100F that are on 7.2.9 (but also occured with 7.2.8) in my case it worked normal after I disabled asic offloading on the internet policy.

Since this can only be a workaround I've opened a ticket with TAC on this.

Translate
Hakam
HakamAuthor
Explorer II
Aug 21, 2024 6:54 AM UTC

Hi @sw2090 ,



any link how to disabled asic offloading on the internet policy ?
I go to GUI, but not see the asic offloading.

Translate
sw2090
SuperUser
SuperUser
Aug 21, 2024 6:32 AM UTC

aslo there where several bugs with NPU in 7.2.8 and earlier that were fixed in 7.2.9. Though my issue is obviously not.

Translate
sw2090
SuperUser
SuperUser
Aug 21, 2024 6:58 AM UTC

unfortunately these options are not available on gui. You will have to add the column "ID" to the policy view  in gui to find the policy id and then set it on cli:



config firewall policy

 edit <id>

  set auto-asic-offload disable

end



Maybe you could also set np_acceleration to disable. But not sure if needed.



Translate
Hakam
HakamAuthor
Explorer II
Aug 21, 2024 7:02 AM UTC

Hi @sw2090 ,



Thanks You for the suggestion, I will try later.

Btw, any root cause TAC has given for u issue?

Translate
sw2090
SuperUser
SuperUser
Aug 21, 2024 7:04 AM UTC

no did not yet get any reply from TAC. Just opened the ticket an hour ago :)

Translate
sw2090
SuperUser
SuperUser
Aug 21, 2024 7:38 AM UTC

hm additionally I just noticed on two affected 100F that diag debug rating shows rtt > 50 (or even >100 on the 2nd server). In config system fortiguard these are already configured to use lowest latency location and protocol https with port 443.

But since annother 100F that still is on 7.0.15 and is not affected by this also has such rtts in diag debug rating. So I 'd say the rtt cannot be the reason.

Translate
AlexC-FTNT
Staff
Staff
Aug 21, 2024 7:44 AM UTC

additionally I have also noticed that the paint color of the new Fortigates has a slightly different shade of white. Not sure how this is valuable or related to the topic, but I am leaving it here for the world to investigate :)
