Virtual IP

Hello

I have FortiGate 40F ,it's working fine

but I have NVR Hikvision (IP : 192.168.70.5/24) I Need to login NVR From Anywhere

I have Public Domain But i need Exactly when i put this URL in browser immediately open NVR in Browser

best regards,

7 replies

ozkanaltas
Valued Contributor III
Jul 17, 2024 11:10 AM UTC

Hello @ahmadking22 ,



Do you have a public domain or public IP. If you have a public IP you can configure virtual IP on Fortigate.

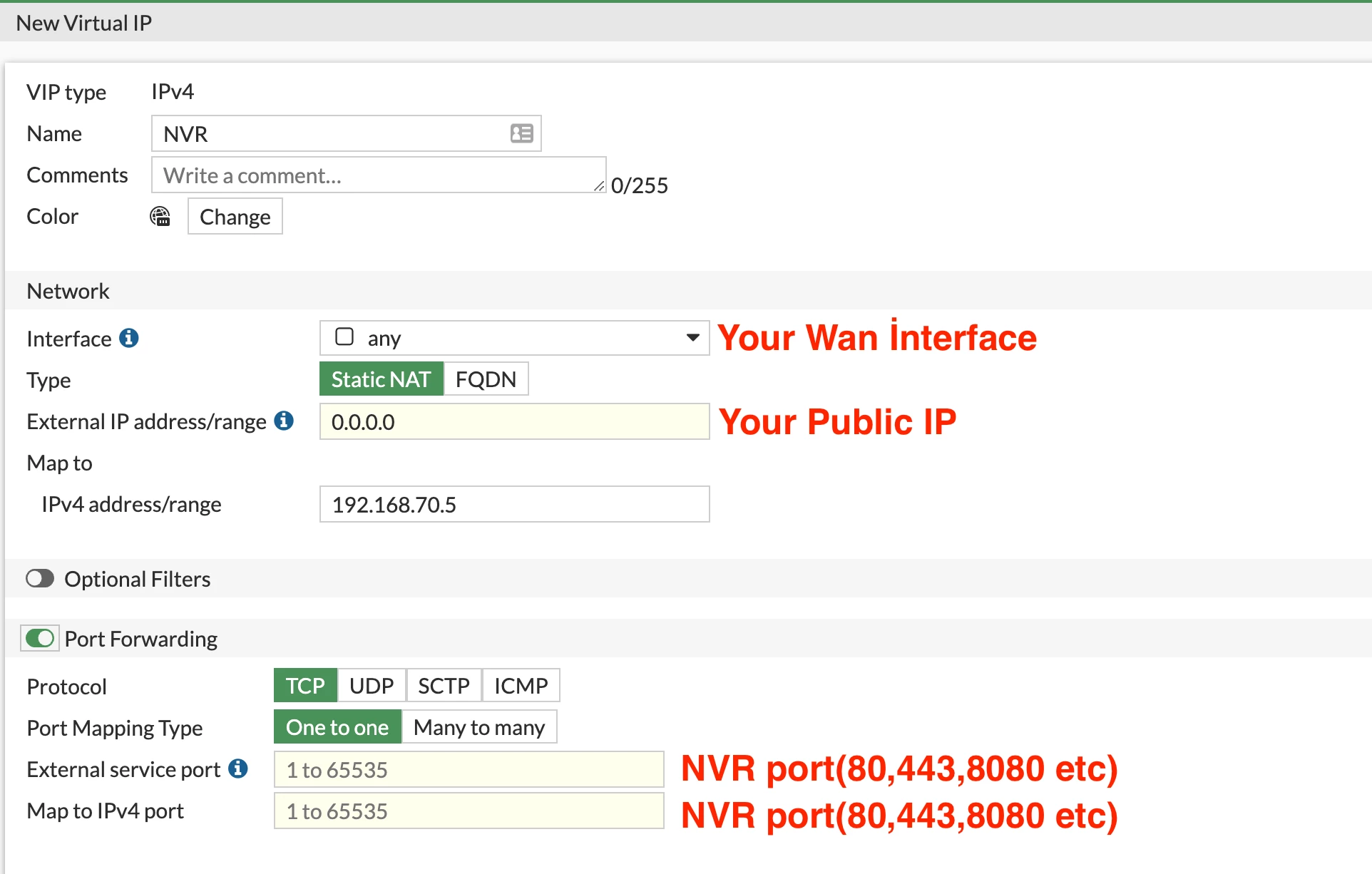

I am sending an example vip configuration image. You can configure it accordingly.



After this configuration, you need to use the vip object you created within the rule.








Also, you can review this document about virtual IPs.



https://community.fortinet.com/t5/FortiGate/Technical-Tip-Using-Virtual-IPs-to-configure-port-forwarding/ta-p/198195



Translate
ahmadking22
Explorer II
Jul 17, 2024 11:12 AM UTC

sir , I have DDNS (public IP it will be changing)

Translate
ozkanaltas
Valued Contributor III
Jul 17, 2024 11:14 AM UTC

Hello @ahmadking22 ,



Then you can configure the external IP address as 0.0.0.0.In this way, even if the rope changes, there will be no problem.
