Upload script via GUI, execute it via CLI.. is this possible?

  • December 16, 2021
  • 3 replies
  • 6801 views

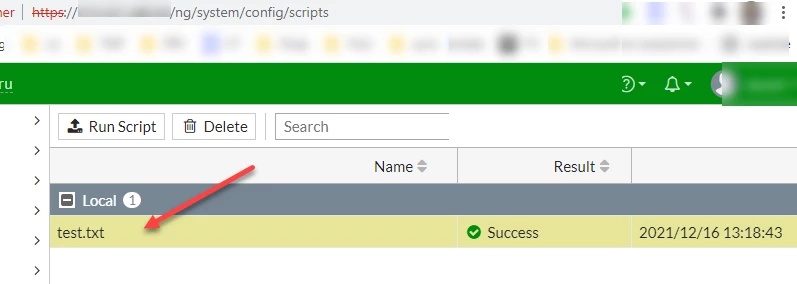

There is a way to upload a script via GUI:




That script ends up here:






Is it possible to execute that script via the CLI?





Thanks

Dan

Best answer by Debbie_FTNT

Hey @dan ,



are you looking to schedule the script, or just execute it?

If scheduling, then you will need to do the 'config system auto-script' configuration Markus outlined above, or set up some kind of automation stitch.


If you are merely looking to execute the script, it will be executed immediately upon upload.

The scripts that end up in that table are NOT reflected in the configuration in any way; they are stored in a folder on the underlying file-system and simply remain there (and in the GUI table) as a record that they were executed.



If you are looking to execute the script on demand (instead of once with the upload), you would need to create an auto-script entry again, and then use this CLI command:



execute auto-script start <script-name>



Let us know if you have any further questions :) .

3 replies

Markus_M
Staff & Editor
Markus_M
Staff & Editor
December 16, 2021

Hi Dan,



not even sure what this script does, I believe though you are looking for something different, automated script execution.



Two ways to do this:

a) config system auto-script

b) an automated script that logs on via SSH and runs commands



a) see here:

https://community.fortinet.com/t5/FortiGate/Technical-Tip-Automated-script-execution/ta-p/193685

A bit different under the 7.0



b) Discussed here already:

https://community.fortinet.com/t5/Fortinet-Forum/Is-it-possible-to-quot-upload-and-run-script-quot-through-CLI/m-p/4945?m=156735



In short, there are programs like "plink" or from this forum a library called Paramiko.

Linux machines bring their own tools with them already.

I wrote for home use to push certificates created on other machines via SSH to FGT with basically:

$FortiSSH < $FGTVAR

Whereas the first variable is the ssh admin@fgt-ip and the second variable is a collection of config lines. For example:

echo "config global" > $FGTVAR
echo "config certificate ca" >> $FGTVAR
echo "edit LETSENCRYPT_CHAIN" >> $FGTVAR
echo "set range global" >> $FGTVAR
echo "set ca \"$(cat $CERTNEW)\"" >> $FGTVAR

Advantage of the latter is that this not only works to update FGT config, but other devices config, like FML, FAZ....



Best regards,



Markus

    Debbie_FTNT
    Staff & Editor
    Debbie_FTNTAnswer
    Staff & Editor
    December 17, 2021

    Hey @dan ,



    are you looking to schedule the script, or just execute it?

    If scheduling, then you will need to do the 'config system auto-script' configuration Markus outlined above, or set up some kind of automation stitch.


    If you are merely looking to execute the script, it will be executed immediately upon upload.

    The scripts that end up in that table are NOT reflected in the configuration in any way; they are stored in a folder on the underlying file-system and simply remain there (and in the GUI table) as a record that they were executed.



    If you are looking to execute the script on demand (instead of once with the upload), you would need to create an auto-script entry again, and then use this CLI command:



    execute auto-script start <script-name>



    Let us know if you have any further questions :) .

      dan
      danAuthor
      Explorer II
      December 17, 2021

      Hi @Debbie_FTNT ,

      Thanks, you come closest to what I was looking for.  I know about auto-script already.



      Actually I just wanted to figure out if there was a simple way to create a kind of library or macros with often used commands for me.

      For example, if I want to check a flow for a particular problem I am working on, I would always use the commands

      diag debug enable diagnose debug flow filter addr 10.5.5.123 diagnose debug flow show function-name enable diag debug flow show iprope enable diagnose debug flow trace start 100

      This is a "lot" of typing, especially if I have a new CLI session and cannot use the history. (btw, Peters list for CLI shortcuts is a big help)



      If I'd be able to put those commands into a macro (or script) and if I would be able to simply execute it on demand, i.e. with

      execute script myspecialflowcheck.txt

      or

      macro myspecialflowcheck.txt    ("macro" of course does not exist (yet?))



      ...then I would save myself from some typing.. Just an idea from a lazy typer... :)



      The ability to define macros would be great...



      Thanks to @Markus_M for the explanations above, too.



      Dan





      Markus_M
      Staff & Editor
      Markus_M
      Staff & Editor
      December 17, 2021

      You can then actually use the alias command.

      https://community.fortinet.com/t5/FortiGate/Technical-Tip-How-to-configure-system-alias/ta-p/189883?externalID=FD45675



      On CLI you then run it as "alias >somethingyouconfigured<"

        dan
        danAuthor
        Explorer II
        December 17, 2021

        Hello @Markus_M , this is exactly what I was looking for.
        Wonderful. Many Thanks!

        Dan
