Description
This article describes how to use the automated scripting on FortiGate.
Scope
FortiGate.
Solution
In FortiOS, it is possible to configure auto-scripts, and this feature can be used for various purposes.
Important note:
The auto-script output is stored in the RAM, so if running multiple scripts with a maximum of 10MB (set output-size), calculate and monitor the RAM usage. Improper use of the auto-script may trigger a conserve mode.
Note:
Some commands will not work with the auto-script on older firmware versions.
Support for further commands like 'diagnose test app xxx', 'diagnose wad xxx', 'diagnose ips xxx' was added in FortiOS 7.6.1 and above.
Note:
If the output size is exceeded, the script will stop. Consider the auto-script as a temporary installation only; it is good for time-based troubleshooting.
Example 1: Auto-script for sending firewall configuration backup to a TFTP server:
config system auto-script
edit "backup"
set interval 120 <----- Interval of time in seconds to execute the task, for example, for 2 minutes.
set repeat 0 <----- Time of repeats, 0 means always. The default is 1.
set start auto <---- If set to auto, the process would start by the system automatically; manual is the default, where it is necessary to start the process.
set script "execute backup config ftp backup.conf 10.10.10.2 test test"
next
end
Whereas in this example:
- 10.10.10.2 is the IP of the FTP server.
- backup.conf is the name of the file.
- test/test is the user and password of the FTP.
Example 2: Auto-script for sending firewall configuration backup to an FTP server:
config system auto-script
edit "backup"
set interval 120
set repeat 0
set start auto
set script "
config global
execute backup config ftp backup.conf 10.10.10.2 test test"
next
end
Where:
- 10.10.10.2 is the IP of the FTP server.
- backup.conf is the name of the file.
- test/test is the user and password of the FTP.
Note: It is possible to add multiple CLI commands in the auto-script.
Example 3: Checking the generic status of the device using multiple commands with the help of Auto-script:
'get system status' and 'get system performance status' are the commands used for this.
config system auto-script
edit "status"
set interval 300
set repeat 0
set start auto
set script " <----- Press enter key here, add the first command.
get system status <----- Press the enter key here and add the second command in the next line.
get system performance status" <----- Make sure that the last command ends with a double quotation mark.
next
end
To check the script output stored in the file.
From GUI:
Go to System -> Advanced -> Scheduled Script.
Select the 'Download' button from the 'Status' field for the selected script and open the file to read the output.
For Newer Version:
This option is moved under Admin -> Configuration -> Scripts.
Note:
From v6.2.2, the System -> Advanced is removed; it is only possible to see the script scheduled via CLI. From v6.2.0, automation action is introduced as an alternative to auto-script.
From CLI.
To view the results of the script named 'status' (with no VDOMs).
From CLI.
To view the results of the script named 'status' (with no VDOMs).
execute auto-script result status
Script status output:
########## script name: status ##########
========== #1, 2019-10-01 14:24:04 ==========
FGT $ get system status
Version: FortiGate-100D v6.2.1,build0932,190716 (GA)
Virus-DB: 72.00005(2019-10-01 03:19)
Extended DB: 1.00000(2018-04-09 18:07)
... output continues ...
########## script name: status ##########
========== #1, 2019-10-01 14:24:04 ==========
FGT $ get system status
Version: FortiGate-100D v6.2.1,build0932,190716 (GA)
Virus-DB: 72.00005(2019-10-01 03:19)
Extended DB: 1.00000(2018-04-09 18:07)
... output continues ...
To view the results of the script named 'status' (with VDOMs, enter it in global):
config global
execute auto-script result status
To stop or restart an auto-script, use the following CLI commands:
execute auto-script start <script name>
execute auto-script stop <script name>
To stop all scripts, use the following CLI command:
execute auto-script stopall
To delete the results of an auto-script, use the following CLI command:
execute auto-script delete <script name>
Modifying a running script will show an output (error) as shown below. So, the script must be stopped from running before making any modifications.
Script can not be changed when it is running.
object set operator error, -14 discard the setting
Command fail. Return code -14
object set operator error, -14 discard the setting
Command fail. Return code -14
Example 4: To get an FSSO user list every 5 seconds for a maximum size of 100MB, filtered for the IP 172.16.17.132.
config system auto-script
edit "firewall-user-list"
set interval 5
set repeat 0
set script "diag firewall auth list | grep 172.16.17.132 -A 7"
set output-size 100
next
edit "auth-user-list"
set interval 5
set repeat 0
set script "diag debug auth fsso list | grep 172.16.17.132"
set output-size 100
next
end
set output-size 100
next
edit "auth-user-list"
set interval 5
set repeat 0
set script "diag debug auth fsso list | grep 172.16.17.132"
set output-size 100
next
end
To start the above-created scripts, below commands can be used:
execute auto-script start firewall-user-list
execute auto-script start auth-user-list
Example 5: To get a session list every 10 seconds for the IP 10.10.10.48.
config system auto-script
edit "session-list"
set interval 5
set repeat 0
set script "diag sys session filter src 10.10.10.48
diagnose sys session list"
set output-size 100
next
end
set repeat 0
set script "diag sys session filter src 10.10.10.48
diagnose sys session list"
set output-size 100
next
end
Example 6: Using an auto-script to restart the WAD process at a specific interval.
config system auto-script
edit "restart-wad"
set interval 3600
set repeat 65535
set start auto
set script "diag test app wad 99"
next
end
Example 7: Using auto-script to capture OSPF routing information.
config system auto-script
edit "OSPF_routing_script"
set interval 5
set repeat 50000
set start auto
set script "
get sys stat
get router info routing-table ospf
get system arp
get router info ospf neighbor
"
end
Example 8: Cleating DHCP lease using auto-script:
config system auto-script
edit "clear_dhcp_lease"
set interval 600
set repeat 65535
set start auto
set script "
execute dhcp lease-list
execute dhcp lease-clear all
"
next
end
Example 9: Clearing the device inventory list from FortiGate in a particular interval:
config system auto-script
edit "clear_dhcp_lease"
set interval 600 <---- interval of choice
set repeat 0
set start auto
set script "diagnose user device clear"
next
end
Example 10: Restarting and killing the IPS monitor process in a specific interval:
config system auto-script
edit "ipsrestart"
set interval 43200 <-- 12 hours.
set repeat 0 <-- Infinite times, no limit.
set start auto <-- Automatic process by the system.
set script " <-- Script to restart the ipsmonitor.
diagnose test application ipsmonitor 99
fnsysctl killall ipsmonitor
"
next
end
set interval 43200 <-- 12 hours.
set repeat 0 <-- Infinite times, no limit.
set start auto <-- Automatic process by the system.
set script " <-- Script to restart the ipsmonitor.
diagnose test application ipsmonitor 99
fnsysctl killall ipsmonitor
"
next
end
Note: The 'diagnose test app xxx' commands might not work on older firmware versions when executed in the auto-script.
In an HA setup, the auto-script configuration is automatically synchronised, so it only needs to be configured on the primary device. However, the script's command output is executed and captured individually on each firewall.

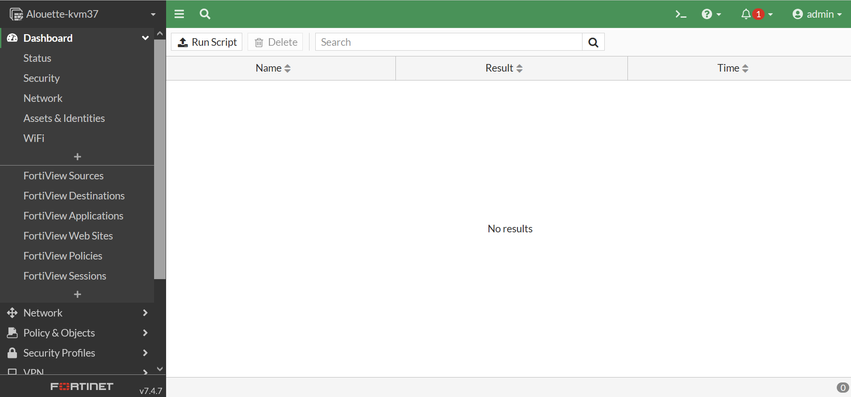

Refer to the screenshots below:
Refer to the screenshots below:
The auto-script will place temporary files on the disk.
To verify if the auto script is still running and also show the current size of the output of a specific script run:
execute auto-script status
auto-script_test <-- Running, output file size: 567.3K.
auto-script_test <-- Running, output file size: 567.3K.
When the configured max output size is reached, the script will stop and change the status from 'running' to 'executed'.
The command will then show the final file size.
The command will then show the final file size.
execute auto-script status
auto-script_test <-- Executed, output file size: 11.1M.
auto-script_test <-- Executed, output file size: 11.1M.
The temporary files of the auto-script are stored in '/tmp/$$auto-script$$/'.
The total size of all auto-script files can be checked with the following commands:
fnsysctl df -k
fnsysctl df -h
fnsysctl ls -al /tmp/$$auto-script$$/
fnsysctl du -aLL /tmp/$$auto-script$$
Example outputs:
fnsysctl df -h
Filesystem Size Used Available Use% Mounted on
none 1.4G 362.2M 1.0G 25% /tmp
... cut ...
fnsysctl ls -al /tmp/$$auto-script$$/
drwxr-xr-x 2 0 0 Tue Jan 7 10:22:52 2025 60 .
drwxrwxrwt 56 0 0 Tue Jan 7 10:30:14 2025 5060 ..
-rw-r--r-- 1 0 0 Tue Jan 7 10:22:48 2025 11617598 auto-script_test.out <- 11,08 MB.
fnsysctl du -aLL /tmp/$$auto-script$$
11348 /tmp/$$auto-script$$/auto-script_test.out
11348 /tmp/$$auto-script$$ <----- 11,08 MB.
