Unable to authenticate radius users

  • March 19, 2024
  • 3 replies
  • 14120 views

Greetings,



I am configuring RADIUS authentication on my Fortigate 101F running FortiOS Version 7.4.3.



The Microsoft NPS Server has been configured according to this guide.



My radius configuration is as follows:



config user radius
edit "RADIUS"
set server "172.16.9.3"
set secret PSK
set nas-ip x.x.x.x
set auth-type ms_chap_v2
set source-ip "x.x.x.x"
next
end



The connection between the Fortigate and the NPS is successful, but test user credentials test fails.



The CLI test output is as follows:



diagnose test authserver radius RADIUS mschap2 user password
authenticate 'user' against 'mschap2' failed, assigned_rad_session_id=1486429090 session_timeout=0 secs idle_timeout=0 secs!

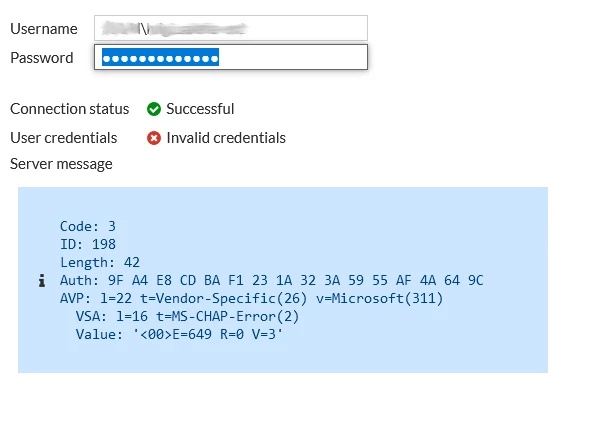

Running a packet capture between the Firewall and the Radius Server I get an access-reject response with the following MS-CHAP error



Code: 3
ID: 190
Length: 42
Auth: 91 C7 F9 28 0A 50 59 33 13 39 B3 75 58 04 AC EE
AVP: l=22 t=Vendor-Specific(26) v=Microsoft(311)
VSA: l=16 t=MS-CHAP-Error(2)
Value: '<00>E=649 R=0 V=3'



Any insight would be much appreciated.



Thanks in advance.

Best answer by pminarik

What does the NPS log on the Windows server say about?

The error code is very specific and should be very clear, so I would rather trust the NPS. No offense intended. :)



On the NPS server: Event Log Viewer > Custom Views > Server Roles > Network and Policy Access Services.

Find the entry/entries for the rejected attempt. Check what it says. Also pay close attention to and check what rule/policy the attempt matched. (if you have multiple, maybe the matching is not as you expect)

3 replies

AEK
SuperUser
AEK
SuperUser
March 20, 2024

Hi

Can you test user credentials by entering "domain\user" as user instead of "user"?

AEK
    turipriv
    turiprivAuthor
    Explorer
    March 25, 2024

    Hi,



    yes I tried that too, but unfortunatelly I got the same error message.


    pminarik
    Staff
    pminarik
    Staff
    March 20, 2024

    From MS-CHAPv2 RFC 2759.

    649 ERROR_NO_DIALIN_PERMISSION

     This is related to the "dial-in" property of AD users.

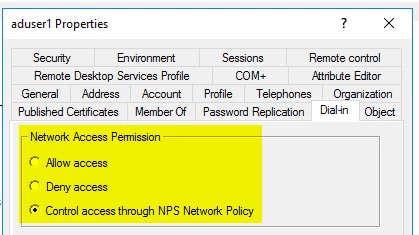

    You can edit that in each user's Properties > Dial-in tab. (allow | deny | control based on NPS policy)

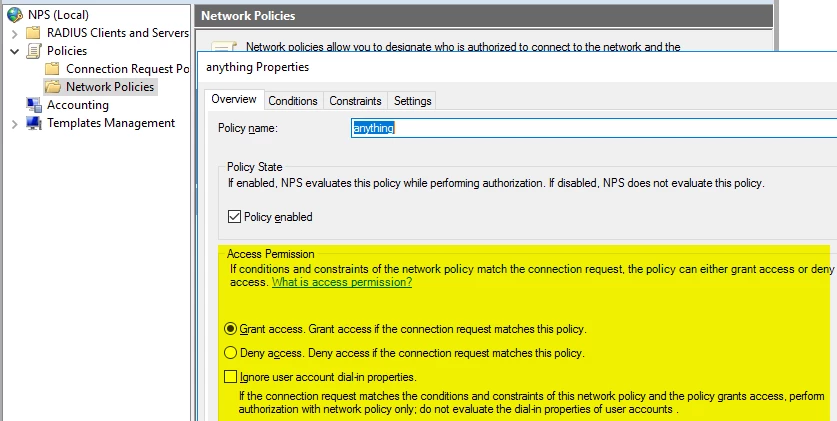

    You can also set the Network Policy in NPS itself to ignore the dialin property. (Overview tab, section "Access Permission").




      turipriv
      turiprivAuthor
      Explorer
      March 25, 2024

      Hi,



      thank you for your feedback and sorry for my late reply. Unfortunately, both the options you pointed out are already selected in the NPS.





      pminarik
      Staff
      pminarikAnswer
      Staff
      March 25, 2024

      What does the NPS log on the Windows server say about?

      The error code is very specific and should be very clear, so I would rather trust the NPS. No offense intended. :)



      On the NPS server: Event Log Viewer > Custom Views > Server Roles > Network and Policy Access Services.

      Find the entry/entries for the rejected attempt. Check what it says. Also pay close attention to and check what rule/policy the attempt matched. (if you have multiple, maybe the matching is not as you expect)

        turipriv
        turiprivAuthor
        Explorer
        April 5, 2024

        Greetings everyone,



        for some reason I fail to understand, the NPS event viewer was not displaying any error messages whatsoever.



        Anyway, what I found out is that there was indeed a mismatch in policy due to an incorrect policy ordering.



        Once the Fortinet-related policy was ranked-up everything warked fine.



        Thanks everyone for your insight.

          amg7
          amg7
          Visitor III
          July 16, 2024

          Hello, can you tell me what you did to solve it? Do you mean the policies in the Fortinet or the NPS policies?

          Thanks
          Regards

            turipriv
            turiprivAuthor
            Explorer
            August 5, 2025

            Sorry for this very late reply. The issue was the policy ordering in the NPS server. Once the appropriate oerder was set up, authentication was succesful.
