Description
This article will be able to guide to set up a FortiGate with Radius using Active Directory (AD) authentication. Here the Radius server configured is the Microsoft NPS server.
Scope
- FortiGate to use the Microsoft NPS as a Radius server and to reference the AD for authentication.
- Microsoft NPS to be joined to the AD Domain for the AD Authentication.
Solution
Below are the screenshots and explanations on how to configure NPS and also the FortiGate RADIUS Attributes.

- Add FortiGate to 'RADIUS Clients' in MS NPS configuration (select 'RADIUS Clients' and select 'New').
- Enter FortiGate RADIUS client details:
- Make sure the 'Enable this RADIUS client' box is checked.
- Enter 'Friendly name', IP address, and secret (same secret as it was configured on FortiGate).
- The rest can bethe default.

- Create a 'Connection Request Policy' for FortiGate(select 'Connection Request Policies' and select 'New').
- Specify 'Policy name' and select next.

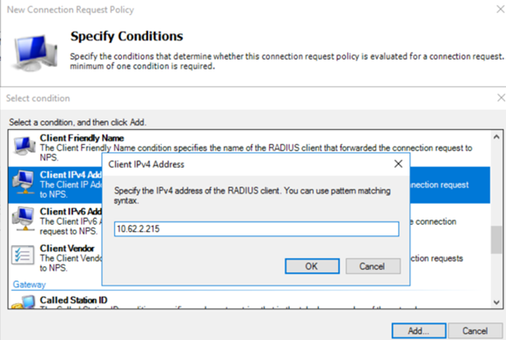

- Under 'Specify Conditions' select 'Add…' and select 'Client IPv4 Address' and specify the IP address from FortiGate.
- When finished confirm the settings with 'OK' and 'Add…'.
- Select 'Next' when done and the rest can be the default. Continue selecting 'Next' and 'Finish' at the last step.

- Create a 'Network Policy' for access requests coming from FortiGate (select 'Network Policies' and select 'New'). NPS -> Policies -> Network Policies.
- Specify 'Policy name' and select next.


Adding Network Policy with AD authentication.

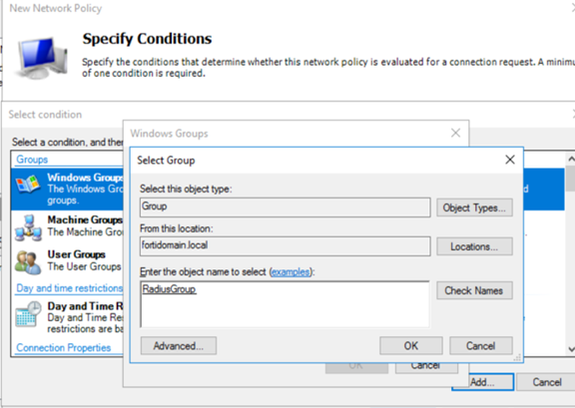

- Under 'Specify Conditions' select 'Add…' and select 'Windows Groups' select 'Add Groups…' and enter AD group name.
- When finished confirm the settings with 'OK' and 'Add…'.
- Select 'Next' when done.

- Specify access permission and select 'Next' when done.

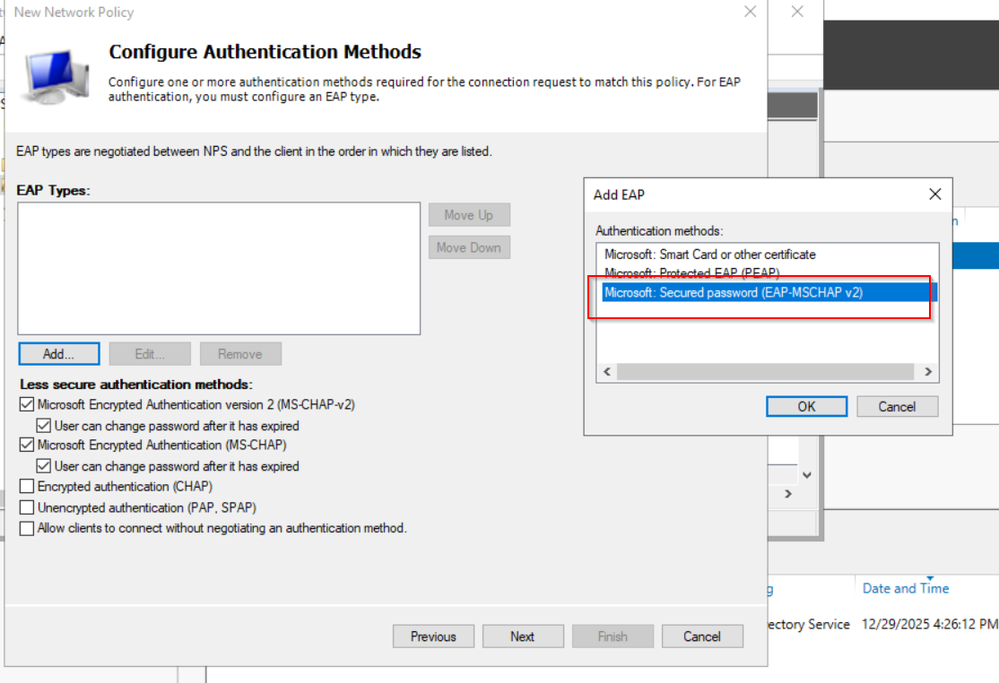

- Configure authentication methods.
- Select 'OK' and 'Next' when done and rest can be default until the below screen to configure Radius Attributes Under Configure Settings.
Note:
To use RADIUS authentication for Wifi SSID, add 'PEAP' in the EAP Types box since SSID deployed by Fortinet only supports PEAP.

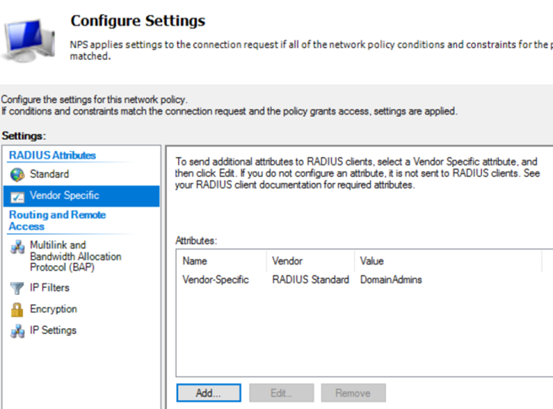

The next steps are to configure the Vendor Specifics for the Radius Attributes
- Select Vendor Specific and then 'Add'.




- Configure Vendor Specific Attribute as shown above, 'Vendor=12356', 'attribute=1' as a string with value 'RadiusGroup'.
There could be whatever value. However, specified radius group name in the local object of FortiGate should match the group name received in VSA (Fortinet-Group-Name), otherwise, authentication fails.


- Select 'Finish' to complete the NPS configuration.
From the FortiGate side:
- Configure RADIUS server connection from FortiGate -> User & Authentication -> RADIUS Servers (Use the same information during step 2 of the NPS configuration above):
- Test Connectivity.
- Test User credentials with the AD group credentials.


Additional Tips:
There could be a user who is a member of multiple domain groups, and FortiGate needs multiple VSA group-name values. As we noticed above, NPS acting as the radius server should provide such information. To achieve it, NPS should be configured as follows:

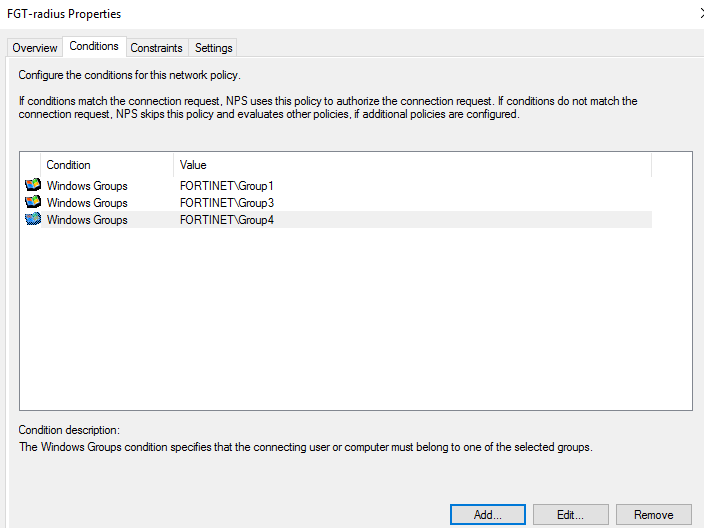

- Radius Policy Conditions: each group should be listed separately:

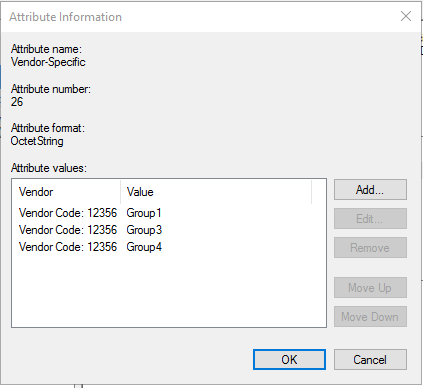

- Settings: add one VSA, and specify multiple attributes. In the example below, there are three group-names specified:


- The user account has to be a member of all listed groups in the 'Conditions' because NPS uses the 'AND' operation. If the user is not a member of at least one group, authentication fails. More about NPS settings with multiple VSA values is in this link.

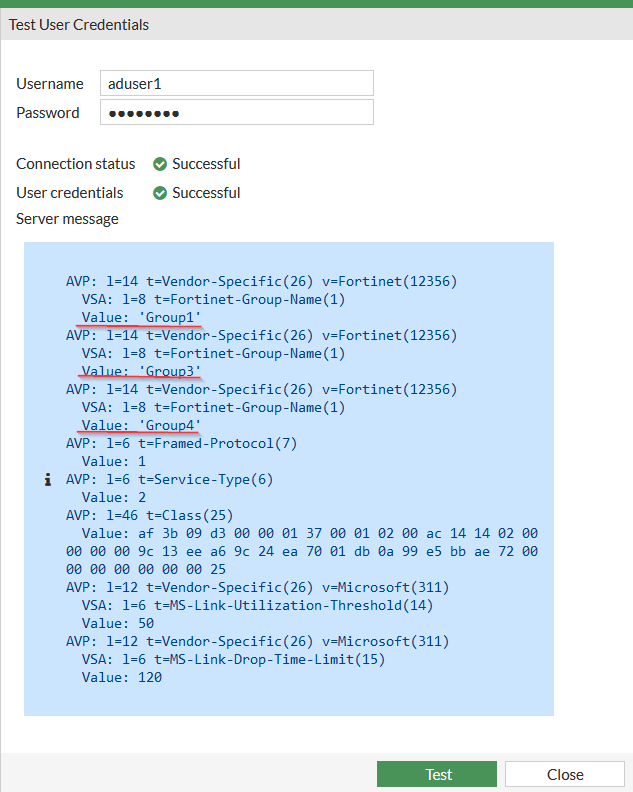

Test result when the testing user 'aduser1' is a member of all three groups:

Test result when the testing user account 'aduser1' is not a member of one of the groups:

The same tests executed on the CLI (recommended option to test):
