Internet Traffic

Hello,

Could you please elaborate whether you are referring to policy route or firewall policy?

Hi Team,

As per your query please follow the below steps:

1. Click on system >> feature visibility and enable advanced routing

2. Under network >> policy routes, click on Add new

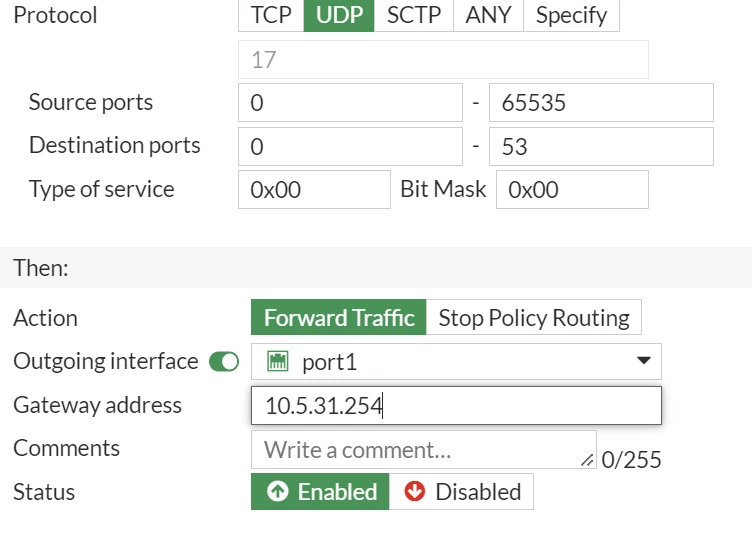

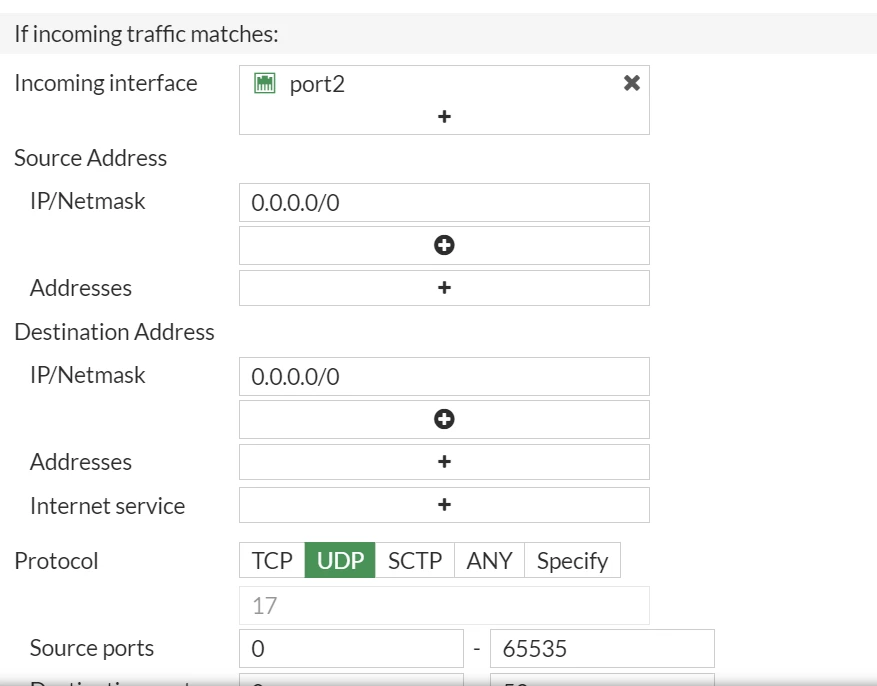

DNS policy route:

Incoming interface: LAN interface

Source: 0.0.0.0/0

Destination:0.0.0.0/0

Protocol: UDP

Destination port:53

Outgoing interface: WAN Interface

Outgoing gateway: Select WAN gateway

You can refer to below screenshots for the same:

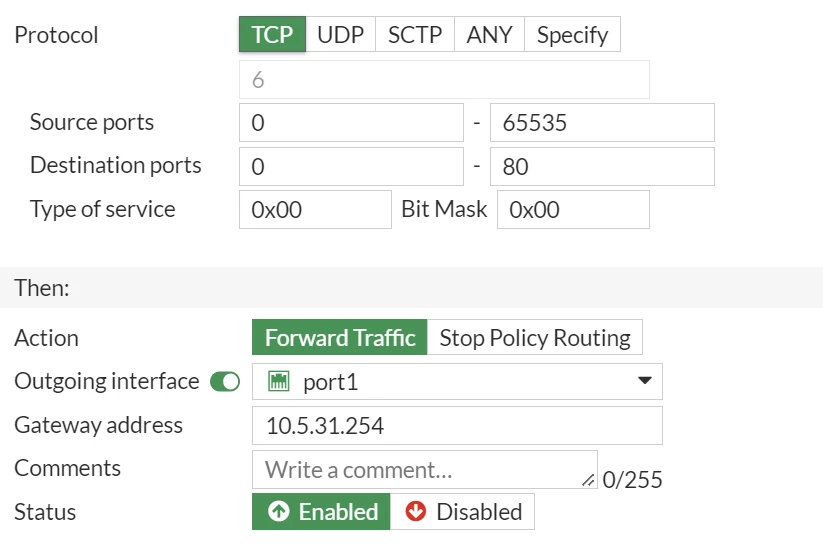

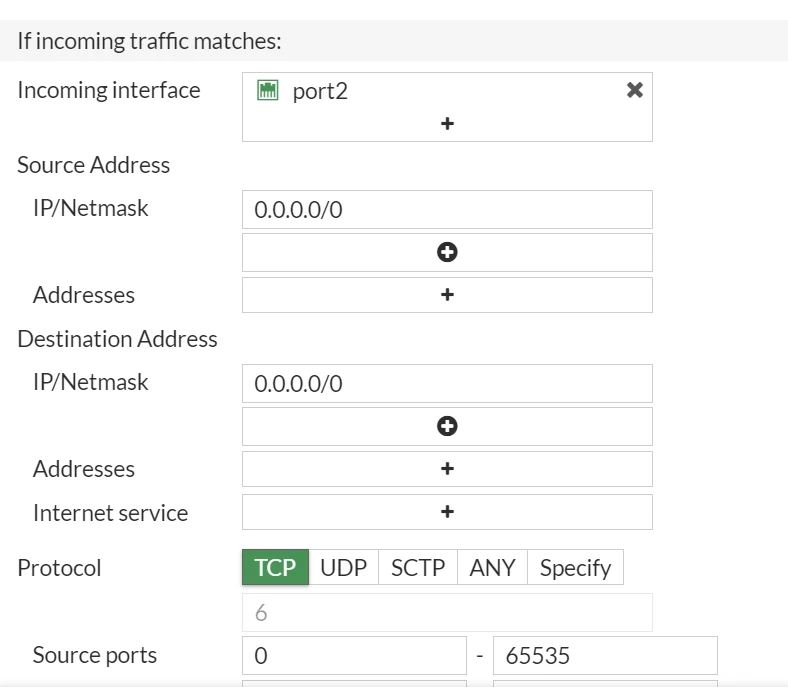

Policy route for HTTP traffic:

Incoming interface: LAN interface

Source: 0.0.0.0/0

Destination:0.0.0.0/0

Protocol: TCP

Destination port:80

Outgoing interface: WAN Interface

Outgoing gateway: Select WAN gateway

You can refer to below screenshots for the same:

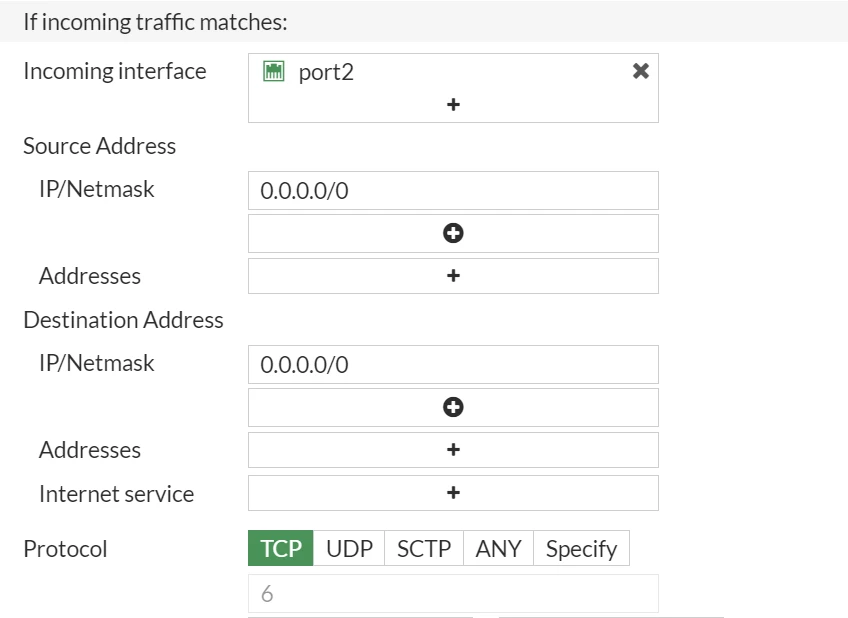

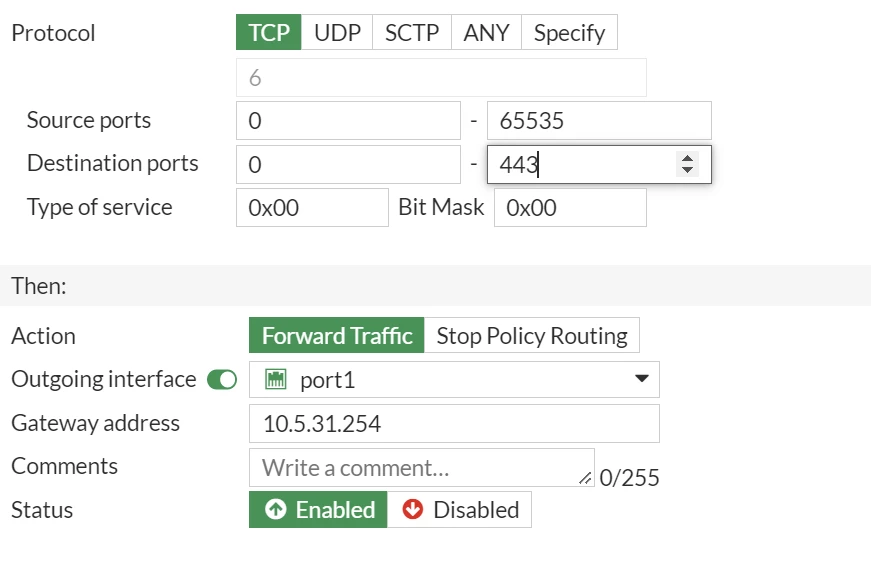

Policy route for HTTPS traffic:

Policy route for HTTP traffic:

Incoming interface: LAN interface

Source: 0.0.0.0/0

Destination:0.0.0.0/0

Protocol: TCP

Destination port:443

Outgoing interface: WAN Interface

Outgoing gateway: Select WAN gateway

You can refer to below screenshots for the same:

Please check and keep us posted
