Question

Gmail for Alert E-Mails

  • June 29, 2010
  • 4 replies
  • 6405 views
Has anyone tried or does anyone know if it is possible to use smtp.gmail.com to send alert emails from the FortiGate (or FortiAnalyzer)? I have tried using ' smtp.gmail.com' and entering my username@gmail.com for smtp user and my gmail password, but still no luck. I have been having trouble getting alert emails to send from both the FortiGate and FortiAnalyzer.

    4 replies

    billp
    billp
    New Member
    June 29, 2010
    We' re running into the same problem with other software configured to send alerts. . . smtp.gmail.com requires an encrypted connection. See: http://mail.google.com/support/bin/answer.py?answer=78799 Specifically, Please note that if your client does not support SMTP authentication, you won' t be able to send mail through your client using your Gmail address. The short answer is no, you can' t use smtp.gmail.com to send alerts because it doesn' t support unencrypted emails, and the Fortigate doesn' t support encrypted emails. We will probably have to build our own in-house smtp server to handle the things like this. Suggestions on work-arounds are welcome
    abelio
    SuperUser
    abelio
    SuperUser
    June 30, 2010
    The short answer is no, you can' t use smtp.gmail.com to send alerts because it doesn' t support unencrypted emails, and the Fortigate doesn' t support encrypted emails.

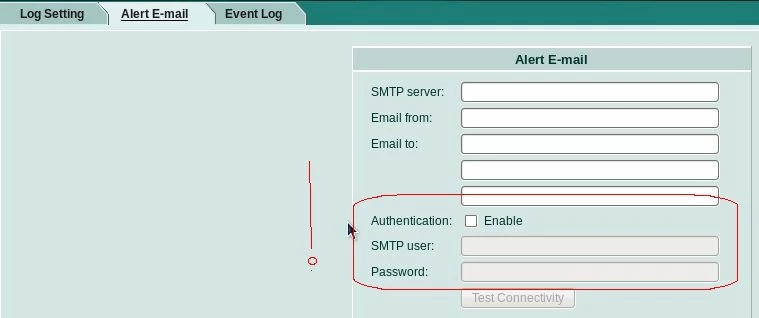

    It' s no matter of encryption or not; it' s a matter of ports. smtp.googlemail.com uses 465/tcp submission port for the connection., and in your fortigate you cannot use (yet) another port than 25/tcp for email alerts BTW, FTG' s email alerts smtp support authentication for years ago, (picture included)
    A
    Anonymous_UserAuthor
    Contributor
    June 30, 2010
    Actually Abel, you can set the FortiGate alert-email SMTP port to anything via the CLI. See: http://kb.fortinet.com/kb/microsites/search.do?cmd=displayKC&docType=kc&externalId=FD31861&sliceId=1&docTypeID=DT_KCARTICLE_1_1&dialogID=7528496&stateId=0%200%207526635 I have tried using smtp.gmail.com with ports 465 and 587 as suggested in the link that billp posted, both with no luck. I instantly receive a " Fortigate was unable to send alert-email" in the event log. Encryption might be the problem. We also have an in-house MS Exchange server that I am unable to send alert emails from.
    abelio
    SuperUser
    abelio
    SuperUser
    June 30, 2010
    ORIGINAL: mike0 Actually Abel, you can set the FortiGate alert-email SMTP port to anything via the CLI. See: http://kb.fortinet.com/kb/microsites/search.do?cmd=displayKC&docType=kc&externalId=FD31861&sliceId=1&docTypeID=DT_KCARTICLE_1_1&dialogID=7528496&stateId=0%200%207526635
    Indeed, thanks for the link!
    billp
    billp
    New Member
    June 30, 2010
    Abel, I quoted the wrong part of the gmail link -- In addition to authentication, the Google SMTP server requires TLS encryption when sending. Fortigate doesn' t support TLS when sending email alert messages. I found this to a be a problem with most systems that are not email clients per-se.
    abelio
    SuperUser
    abelio
    SuperUser
    June 30, 2010
    In addition to authentication, the Google SMTP server requires TLS encryption when sending. Fortigate doesn' t support TLS when sending email alert messages.
    Indeed Bill, it seems that the only way to connect to google is starting tls first, independiently of authentication process; there' s no option for talk smtp with no issuing starttls comand first, and FGT doesn' t send starttls command.
      [abel@ ~]$ telnet smtp.googlemail.com  587  Trying 74.125.45.16...  Connected to smtp.googlemail.com (74.125.45.16).  Escape character is ' ^]' .  220 mx.google.com ESMTP b6sm63037707ani.1  ehlo  250-mx.google.com at your service, [xxx.xxx.xxx.xxx]  250-SIZE 35651584  250-8BITMIME  250-STARTTLS  250 ENHANCEDSTATUSCODES
    regards and my apologies for the misunderstanding.
    SECCON1MC
    SECCON1MC
    New Member
    July 1, 2010
    Here is a different direction. Since you will be sending to your gmail account, just use the MX record for gmail:
    ;; QUESTION SECTION:  ;gmail.com.			IN	MX    ;; ANSWER SECTION:  gmail.com.		1251	IN	MX	40 alt4.gmail-smtp-in.l.google.com.  gmail.com.		1251	IN	MX	5 gmail-smtp-in.l.google.com.  gmail.com.		1251	IN	MX	10 alt1.gmail-smtp-in.l.google.com.  gmail.com.		1251	IN	MX	20 alt2.gmail-smtp-in.l.google.com.  gmail.com.		1251	IN	MX	30 alt3.gmail-smtp-in.l.google.com.
    in this case gmail-smtp-in.l.google.com should work fine. [ul]
  • Set your FortiGate to not to authenticate
  • You may need to provide a valid email address that is not your gmail address to get past the spam filters
  • Make sure you do not try to relay as that will obviously not work and will just make the mighty google mad. [/ul] Good Luck ~Matt
