Visitor III

Question

Error for migrating interface with vlan at software switch (function integrate interface)

Hi,

Il can't use new function for "Integrate interface" in Fortigate 501E (v. 7.2.7)

I create a vlan in a physical interface for the test but it isn't possible to user function.

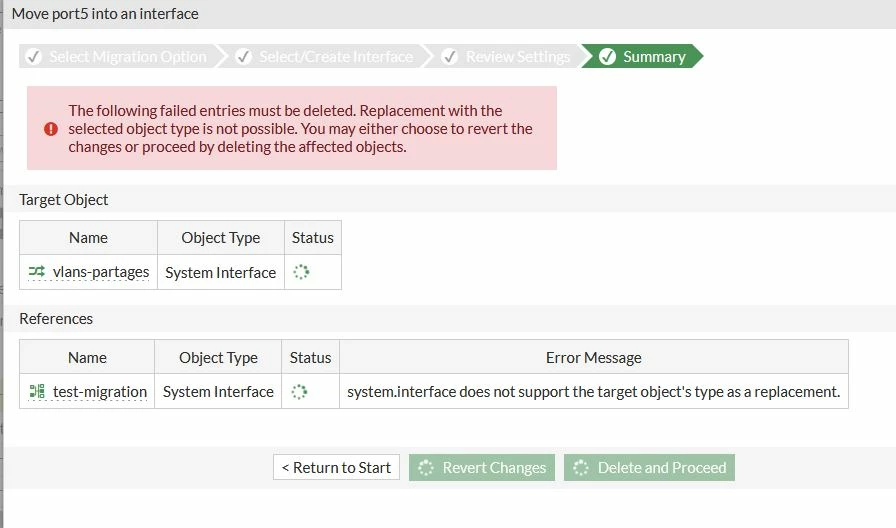

View screen :

Thank and sorry for my bad english.

SuperUser

Hi Reims

It seems you are migrating a hardware/software switch to a VLAN, right?

Probably this is not supported.

AEK

Visitor III

I migrate physical interface (port 5) with vlans (vlan test-migration) :

to software switch with other physical interface (port 6).

Are you understand ?

Visitor III

Hi,

Does anyone have any idea what the problem is?
Fortinet functionality buggy or the problem comes from the technician ?
Thanks !

SuperUser

Hello Reims

Tried the same on FOS 7.0.15 and it seems working fine for me.

Initially I have port6 containing VLAN "test-v", and software switch "test-sw" made from port7 and containing VLAN "test-v2".

As show below migrating port6 to software switch is successful:

The result is shown below:

AEK

SuperUser

For info I have FGT 200F with FOS 7.0.15.

Are there some objects that depend on test-migration VLAN, like IPsec or other?

Can you post full screenshots of the migration operation?

Or is it possible that this operation is not supported on the 501E? You may need to open a ticket to get a a clear response.

AEK

Visitor III

I manage to migrate a physical interface without a vlan but with a simple vlan, it no longer works.
I will create a support ticket.
Thanks again!
