DHCP option problem

Hi 52000cc,

Please refer to the below document for more information:

https://community.fortinet.com/t5/FortiGate/Technical-Tip-DHCP-Options/ta-p/197451

https://community.fortinet.com/t5/FortiGate/Technical-Tip-Configure-DHCP-option-60-66-and-67-FortiGate/ta-p/256176

Regards,
Aman

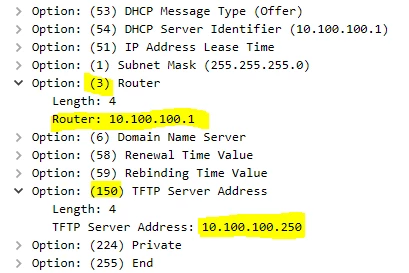

I did some lab tests because I was also curios and it seems that the Router/gateway option can't not be overwritten in the DHCP offer like the other options:

cconfig system dhcp server
..

config ip-range
 edit 2
  set start-ip 10.100.100.101
  set end-ip 10.100.100.109
  set vci-match enable
  set vci-string "udhcp 1.37.0"
next
end
config options
 edit 1
  set code 3
  set type ip
  set vci-match enable
  set vci-string "udhcp 1.37.0"
  set ip "10.100.100.254"
 next
 edit 2
  set code 150
  set type ip
  set vci-match enable
  set vci-string "udhcp 1.37.0"
  set ip "10.100.100.250"
 next
end
set vci-match enable
set vci-string "udhcp 1.37.0"

How can I configure the system to assign a different gateway to a host with a specific MAC address?

since it's only one host, why not assign static IP address on that device instead of obtaining IP address from DHCP?

If I set the IP address manually, it becomes very inconvenient to change it every time the machine is moved. There are several machines that need to use different gateways. I use to use Cisco setup as below..
ip dhcp pool HOSTXXX
host 192.168.1.68 255.255.255.0
client-identifier 01xx.xxxx.xxxx.xx
...

Because I forgot the exact command for this, the command I wrote only reserves the IP address. Either way, does the Fortigate not support assigning IP, gateway, DNS, etc., based on the MAC address?

I am currently using another device as a DHCP server because the Cisco equipment has been replaced. Below is an example where I assigned a different gateway for a specific host. If FortiGate can also achieve this, I can stop using that device as the DHCP server.

Yes, same vlan, like main is using 192.168.10.1, and the specific host will use 192.168.10.2.

OK, thanks!
