Technical Tip: Using the firmware manager CLI and API

This article describes how to use the Firmware Manager CLI and API.

The firmware manager within FortiManager is available for use with the CLI and through an API, as well as from the GUI.

To upgrade a FortiGate using Firmware Manager CLI, follow the steps below:

1. Verify the upgrade path:

In the example below, the device is a VM64 running v5.6.14 and upgraded to v6.4.7.

FMG # diagnose fwmanager show-dev-upgrade-path FGT 6.4.7
platform FGVMK6, upgrade path from 6.0.9-335 to 6.4.7-1911:
[6.0.11-387 --> 6.2.9-1234 --> 6.4.7-1911]
possible path:
[6.0.11-387 --> 6.2.9-1234 --> 6.4.7-1911]
[6.0.11-387 --> 6.2.8-1232 --> 6.4.7-1911]

2. Provided the unit is already registered in FortiManager, it is possible to schedule the upgrade (in a similar way to the GUI):

diagnose fwmanager set-dev-schedule <device name>  <target version>  <flags>  <date in format "YYYY/MM/DD_hh:mm:ss">

The main flags options are as follows:

• Null: Default options (all below options disabled).
• bool_alt: Boot from alternate partition after upgrade.
• skip_retrieve: Do not retrieve the configuration.
• skip_multi_steps: Do not use the upgrade path.
• fortiguard_img: Let the unit download the firmware from FortiGuard.

See the following example:

FMG # diagnose fwmanager set-dev-schedule FGT  6.4.7 null 2021/12/27_01:00:00

platform FGVMK6, upgrade path from 6.0.14-457 to 6.4.7-1911:

[6.2.10-1263 --> 6.4.7-1911]

possible path:

[6.2.9-1234 --> 6.4.7-1911]

Upgrade to image 6.4.7

Do you want to continue? (y/n)y

set_dev_schedule: task id = 66

3. Once the previous command has been run, FortiManager creates a task that can be viewed either in the GUI or CLI.

FMG # diagnose fwmanager get-all-schedule  <-- The command has been removed since v7.0.2.

schedule:

        device_id:      134

        serial:         FGVM010000011238

        boot_alt:       0

        firmware:       06002000

        release:        6.2.10

        buldnum:        1263

        scheduled time: 2021/12/27_01:00:00

        taskid:         66

        sched_seq:      1640604693

        prev_seq:       0

        status:         accepted

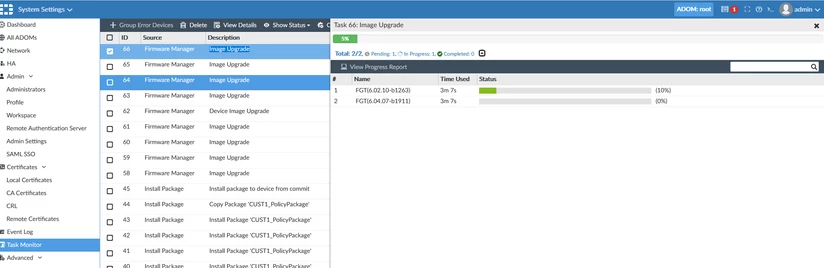

The scheduled task of the upgrade appear at GUI:

New command added via CLI :

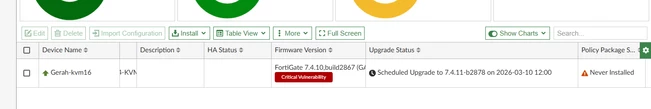

Ertiga-kvm09 # diagnose fwmanager profile list --> To show Schedule Upgrade for one device.

Ertiga-kvm09 # diagnose fwmanager profile list-by-device --> To show Schedule Upgrade for more than one device.

Ertiga-kvm09 # diagnose fwmanager clear --> To delete all Schedule Task Upgrade.

FMG # diagnose dvm task list root running

ADOM: root

ID Source Description User Status Start Time

--------------------------------------------

66 fwm Image Upgrade admin running Mon Dec 27 12:31:29 2021

Note that in a similar way to the CLI, the Firmware Manager API can be used as follows:

{

    "session" : "{{session}}",

    "id" : 1,

    "method" : "exec",

    "params" : [{

        "data": {  "adom": "root", "create_task": "enable", "device": [{ "name": "FGT" }],

"flags": 7, "image": { "release": "6.4.7" }},

        "url": "um/image/upgrade"

    }],

    "verbose" : 1

}

The flags correspond to the CLI flags:

Null=0, skip_retrieve=1, skip_multi_steps=2, fortiguard_img=4, fortiguard=8, preview=16, force=16.

Multiple flags may be added together to combine the different options. For example, fortiguard + skip_retrieve = 9.

Troubleshooting:

If the upgrade fails, run the following log retrieval process while running the upgrade:

diagnose fwmanager fwm-log

Alternatively, restart the service:

diagnose fwmanager service-restart
