Hello Dears

I had setup an ipsec tunnel between two Fortigate Firewalls , the tunnel is UP i am trying to create VTI interface on them so i had added an ip address on both devices on tunnel interfaces but i could not get reachablity (point to point) between them

T1 10.126.0.1 (FG1)

T1 10.126.0.2 (FG2)

where T1 is the tunnel interface on both devices

Best Regards

FortiGate

A

Anonymous_User

Contributor III

Hello,

Can you share the interface route and tunnel details from both devices? Also, you'll need to add the tunnel interface IP in the phase 2 traffic selector if you've configured some specific phase 2 traffic selector.

show system interface <Name>
get router info routing-table details x.x.x.x
diag vpn tunnel list
diag vpn ike gateway list
get vpn ipsec tunnel summary

MustphaBassimAuthor

New Member

Hello Dear

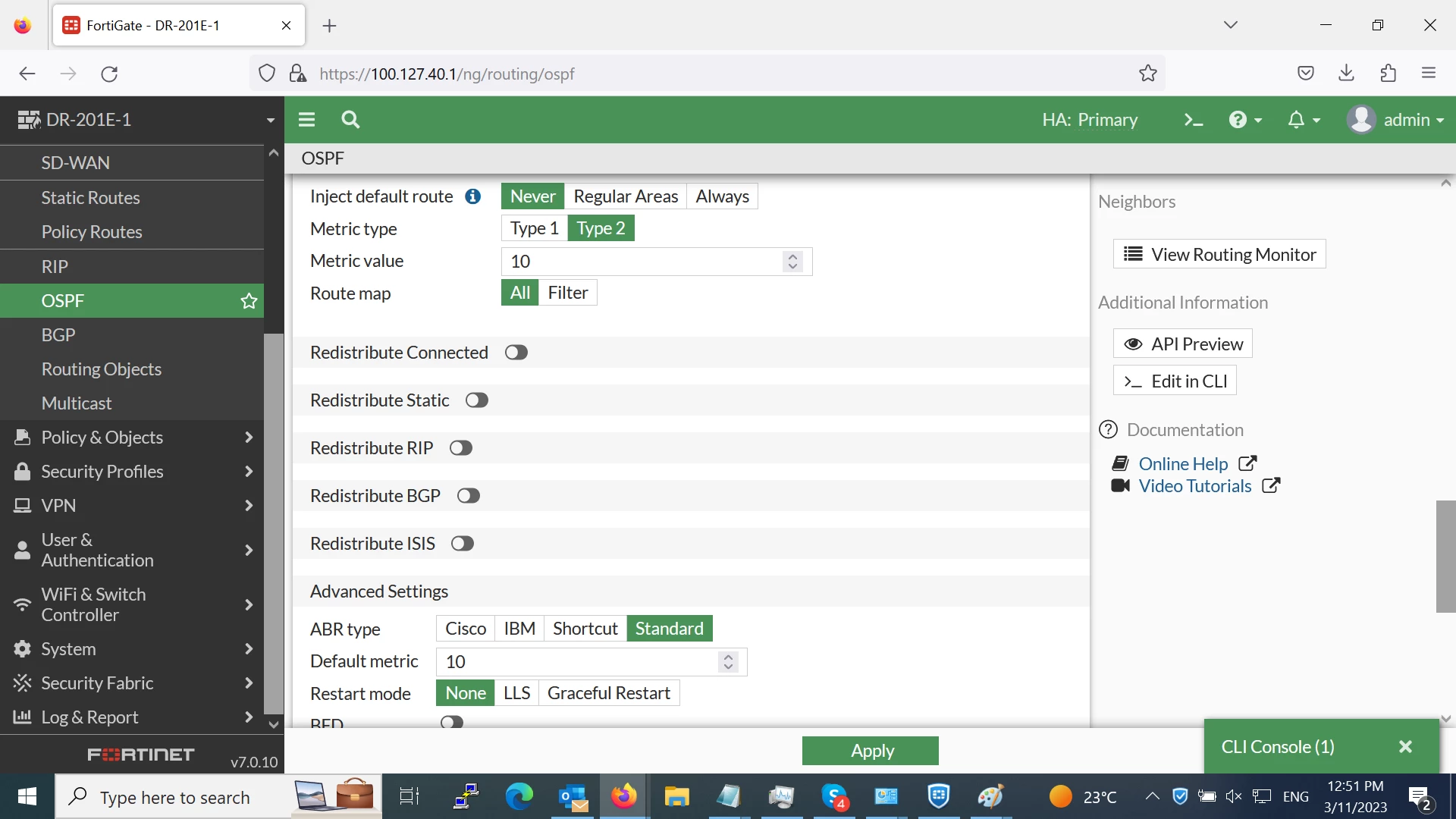

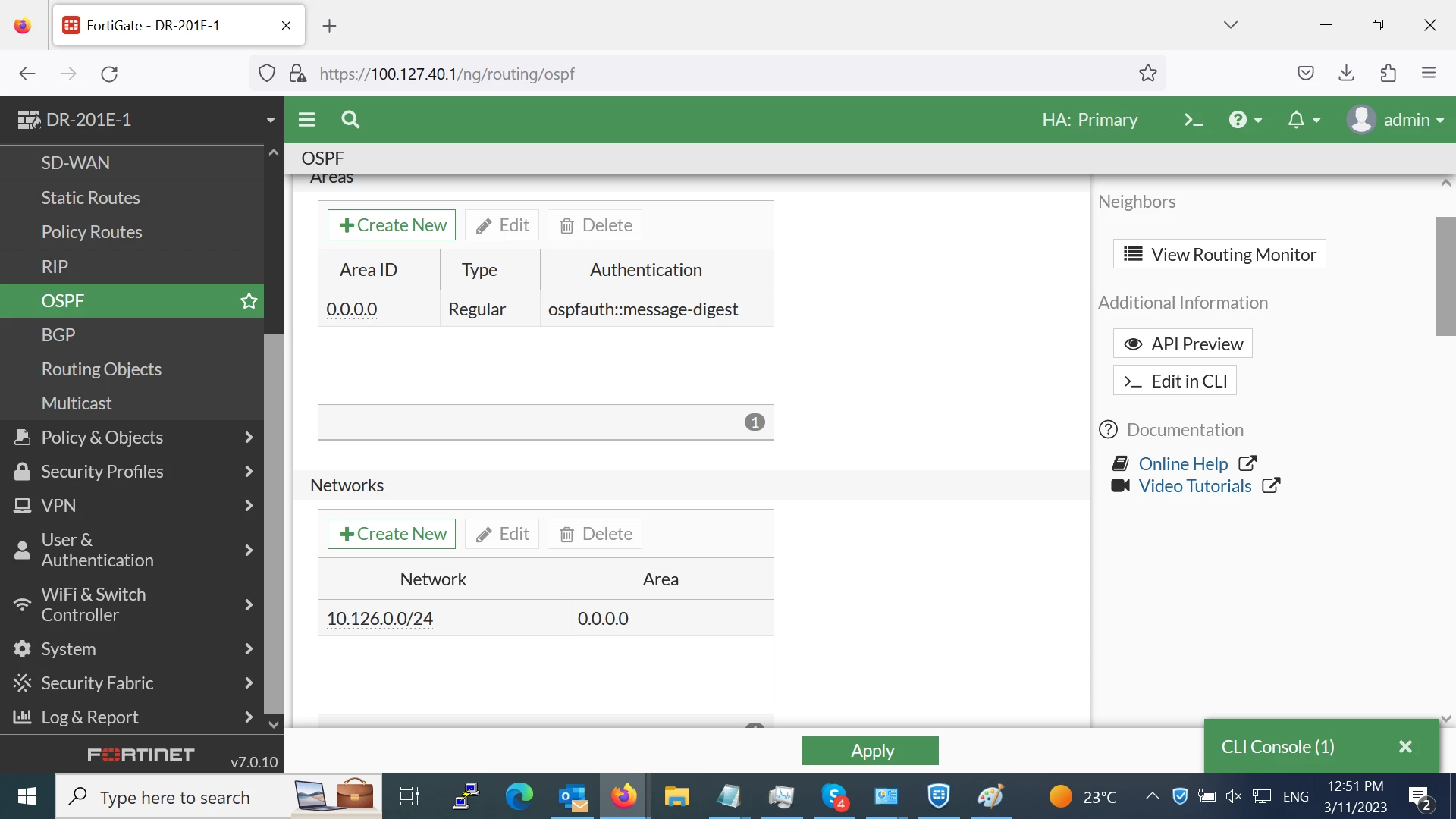

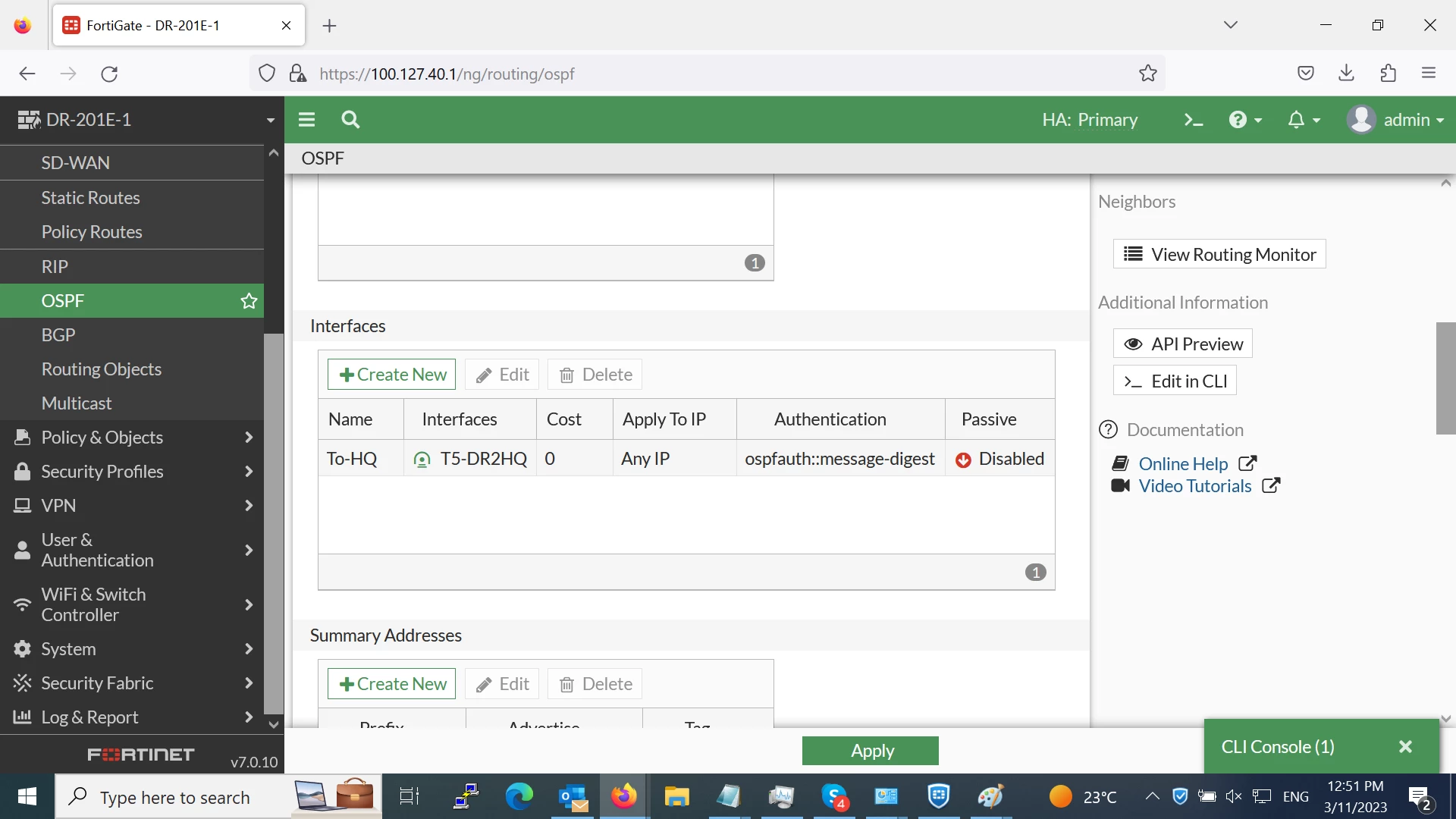

after adding them to selector , now the ping is ok but unable to perferom OSPF adjecancy to the end node,

A

Anonymous_User

Contributor III

Hello,

Please follow the below guide and verify the OSPF configuration.
https://community.fortinet.com/t5/FortiGate/Technical-Tip-OSPF-with-IPSec-VPN-for-network-redundancy/ta-p/190111

If the configuration is fine share the below output:

get router info ospf neighbor
get router info ospf status
get router info ospf interface
