Vlan interfaces on multiple VDOMS

Hi, I am using Multi vdom setup on my Firewall, on the 2nd VDOM I have noticed when I have created the 2nd virtual interface vlan on the new VDOM on the same physical  internal ports as the 1st vdom, I notice the physical ports are greyed out on the 2nd vdom, but green on the 1st vdom. These new virtual interfaces are assigned to the new vdom fine but why are the physical ports greyed out on the 2nd vdom? I manged to establish the BGP neighbors in these new vlan interfaces fine. If I view the Global config on these physical interfaces I see the 1st vdom is configured under the physical interfaces, you cannot assign multi vdoms in the global vdom.

Toshi_Esumi
SuperUser
May 4, 2025 5:29 AM UTC

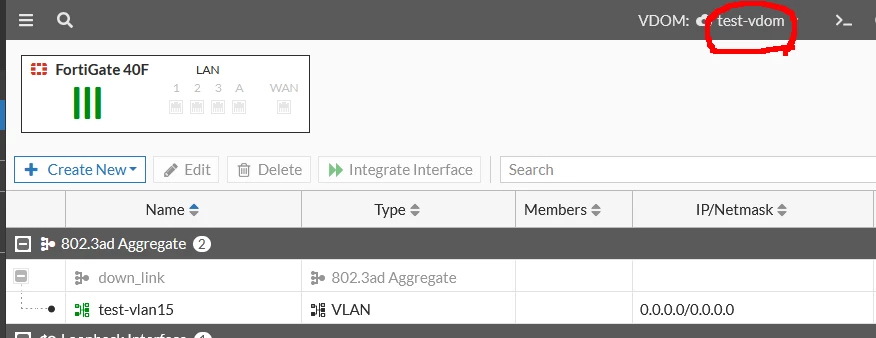

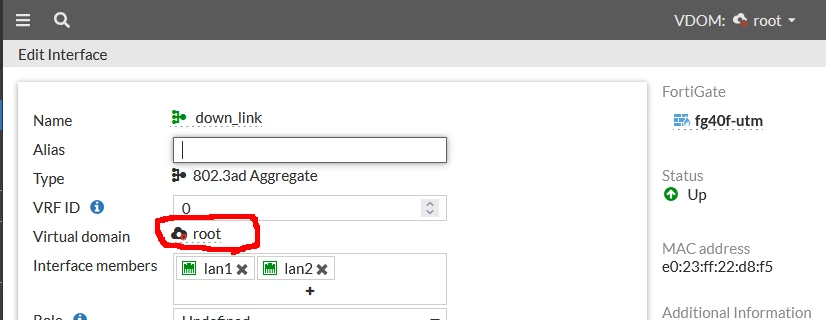

In multi-vdom environment, the default/1st vdom is always "root" vdom. All physical interfaces, by default, belong to the root vdom. When you create a VLAN interface in the 2nd vdom context, the VLAN interface belongs to the same vdom you are in (by default). Since the parent physical interface doesn't belong to the 2nd vdom, it's dimmed when you look them in GUI like below.
If you create a new VLAN in Global context, you can specify which vdom it should belong to.







Toshi

2 replies

Toshi_Esumi
SuperUser
SuperUser
May 4, 2025 5:29 AM UTC

In multi-vdom environment, the default/1st vdom is always "root" vdom. All physical interfaces, by default, belong to the root vdom. When you create a VLAN interface in the 2nd vdom context, the VLAN interface belongs to the same vdom you are in (by default). Since the parent physical interface doesn't belong to the 2nd vdom, it's dimmed when you look them in GUI like below.
If you create a new VLAN in Global context, you can specify which vdom it should belong to.







Toshi

Translate
canoas
canoasAuthor
Visitor III
May 4, 2025 4:14 PM UTC

Perfect! Thanks for the clarification.
