VLan fortigate

  • April 24, 2024
  • 4 replies
  • 3448 views

The goal is to pass vlan 8 and vlan 40 MGMNT without tagging. how i can do it?

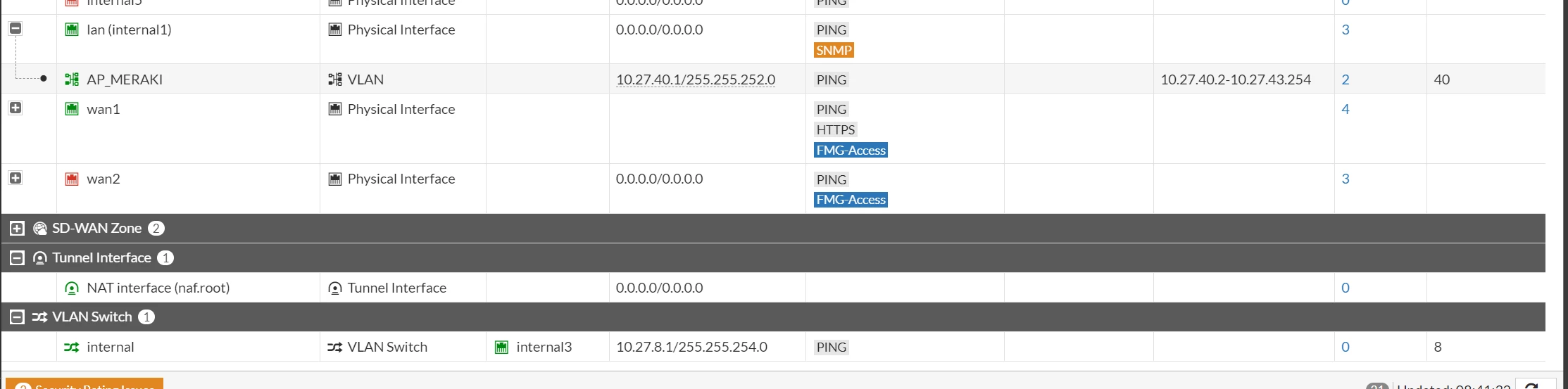

The configuration inside internal port 1, but my suggestion is to be able to use vlan 40, similar to native mgmnt ap, and the vlan 8 pass for the trunk as well.

Vlan 8 is currently fconfigured it on the internal VLAN switch for the purpose of connecting the printer so that port 3 is connected.

There is a conflict if I try to add vlan 8 (such as 8021.q) to port 1 and I wish to provide an IP address because vlan 8 is assigned to an internal vlan switch.

how I am able to accomplish it Connect port 1 to meraki, untag vlan 40 MGMT, and pass vlan 8.



maybe the setup it is not  correct. The AP dosen´t  come up



Meraki ap is now like dhcp











Best answer by AEK

After thinking twice, in case the above solution doesn't suit you then I think you can do with this workaround:

  1. On FG, create a hardware switch of two interfaces
  2. Create a VLAN interface (VLAN 40) inside the hardware switch
  3. In your Meraki AP, set your management VLAN as tagged and user VLAN as untagged
  4. Connect your Maraki AP to the first HW switch port and your printer to your second HW switch port

This way your users can communicate with the printer through the same untagged VLAN.

4 replies

AEK
SuperUser
AEK
SuperUser
April 24, 2024

Hi Anatoli

Can you share the following command?

show system interface internal



AEK
    Anatoli
    AnatoliAuthor
    Explorer III
    April 24, 2024

    Hi @AEK



    show system interface internal
    config system interface
    edit "internal"
    set vdom "root"
    set ip 10.27.8.1 255.255.254.0
    set allowaccess ping
    set type hard-switch
    set stp enable
    set role lan
    set snmp-index 15
    next

    hbac
    Staff
    hbac
    Staff
    April 24, 2024

    Hi @Anatoli,



    What do you mean without tagging? tagging is done by the switch and not FortiGate. To allow traffic between VLANs, you need to create firewall policies. It would be easier to put internal1 under the same VLAN switch as internal3 and put everything in the same VLAN if you don't wan to create a firewall policy.



    Regards,

    Anatoli
    AnatoliAuthor
    Explorer III
    April 24, 2024

    hi @

    Similar to native vlan . I want to utilise vlan 40 for AP management and vlan 8 for users/ printres  when they  user connect to the AP get range vlan 8





    AEK
    SuperUser
    AEK
    SuperUser
    April 24, 2024

    Hi Anatoli

    Tagging VLANs in FortiGate is useful if you want to pass multiple VLANs from a switch to FortiGate via a single link (trunk).

    Can you please elaborate more what you want to accomplish?

    Why do you need the VLAN to be untagged?

    Where do you need it untagged? (at FG hardware switch level? at L2 switch level? ...)

    AEK
      Anatoli
      AnatoliAuthor
      Explorer III
      April 24, 2024

      Hi @AEK


      The purpose is the Meraki AP and printer works .
      The management vlan is often similar to native except that the AP is registered under this mgmn vlan in my case (40).For this reason I need to pass both vlan 8 and vlan 40 .



      Iin this instance, I have two devices connected to fortigate ports: a printer connected to port 3 and a Meraki AP connected to port 1, .
      If i attemp to put the port 1 like trunk and pass vlan 40 and vlan 8 i have a conflict because i set up the internal 3 for printer in vlan switch with ip .

      how i can to put the vlan 8 in two ports ?  for the printers works and the ap works .



      AEK
      SuperUser
      AEK
      SuperUser
      April 24, 2024

      Hi Anatoli

      If I understand well you are connecting devices directly to your firewall and want to put some of these connected devices in the same VLAN, right?

      First I don't think this is a good practice, since FortiGate ports are considered expensive comparing with switch ports, so first I'd use an external manageable L2 switch, with a trunk to FortiGate, and connect all needed devices to the switch.

      On the other hand if we suppose you don't have a L2 switch, I don't know a way to do this with a FortiGate's hardware switch interface, except if your devices can do VLAN tagging (which is not so sure for a printer), and still this seems not like a good practice.

      So if you don't have a L2 switch I think your solution is not to use the same VLAN for printer and user, like you can just plug your printer to some FG port without trying to tag the port. This will still allow users to access the printer but through a firewall policy.

      Hope this helps.

      AEK
        AEK
        SuperUser
        AEKAnswer
        SuperUser
        April 24, 2024

        After thinking twice, in case the above solution doesn't suit you then I think you can do with this workaround:

        1. On FG, create a hardware switch of two interfaces
        2. Create a VLAN interface (VLAN 40) inside the hardware switch
        3. In your Meraki AP, set your management VLAN as tagged and user VLAN as untagged
        4. Connect your Maraki AP to the first HW switch port and your printer to your second HW switch port

        This way your users can communicate with the printer through the same untagged VLAN.
