Two lan, one wan

9 replies
3548 views

Hi, I'm new in Fortinet world.

I have set two lan on two different ports on my Fortigate 60s ,v7.2.8 build1639 (192.168.1.x and 192.168.21.x). But one of them is not able to go in internet. How have I to set the correct gateway on wan1, wich works for one of them?

Thank you a lot

FortiGate

Toshi_EsumiAnswer

SuperUser

somehow I logged on with a different profile. That @TESangoma is me.

Toshi

Mrinmoy

Staff

1. For WAN gateway your ISP shoudl provide you the WAN IP/ Subnet and gateway.

2. You can configure a default route as

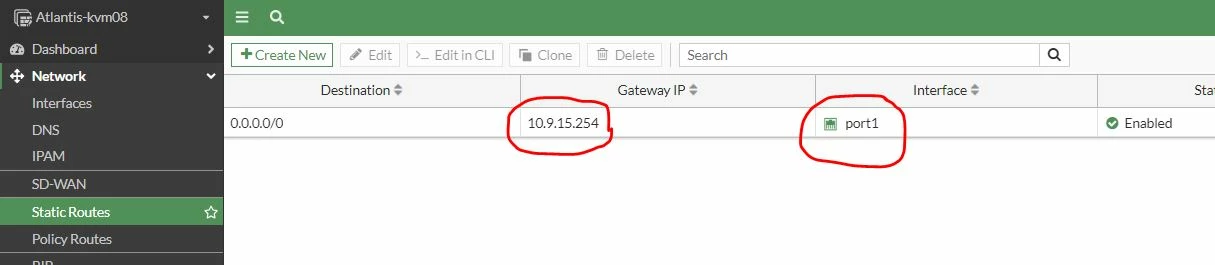

Satic route.JPG

config router static
edit 1
set gateway IP_From_ISP
set device "YOUR_WAN_PORT (May be wan1 for 60e)"
next
end

3. Finally you need 2 firewall policies from your 2 LAN interfaces to the WAN port

https://docs.fortinet.com/document/fortigate/7.0.0/ngfw-deployment/99015/initial-setup

gianlucatsAuthor

Explorer III

I' ve not given all the infomation to you: on wan 1 there is a modem/router giving access to internet (192.168.123.254), sorry.

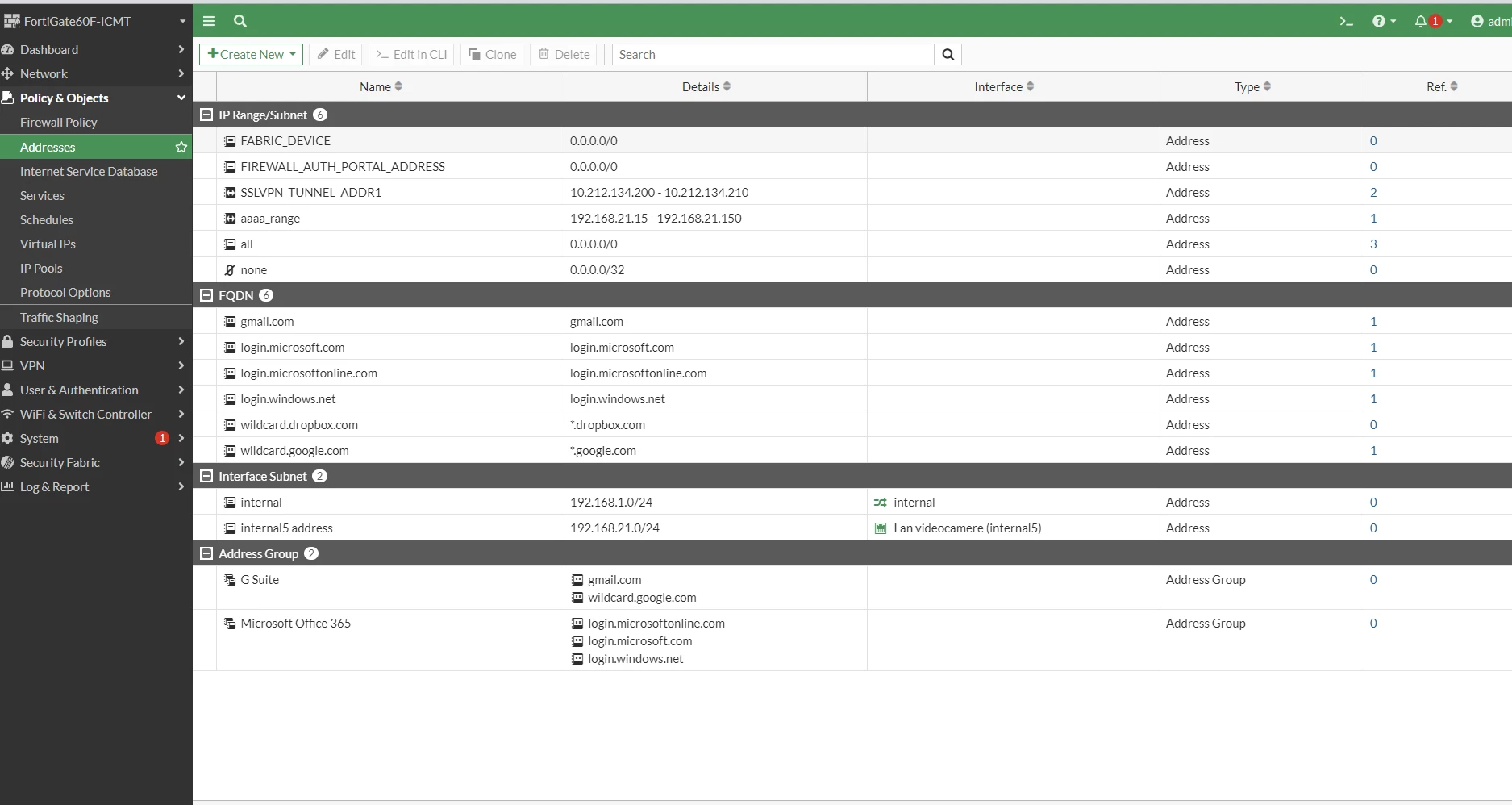

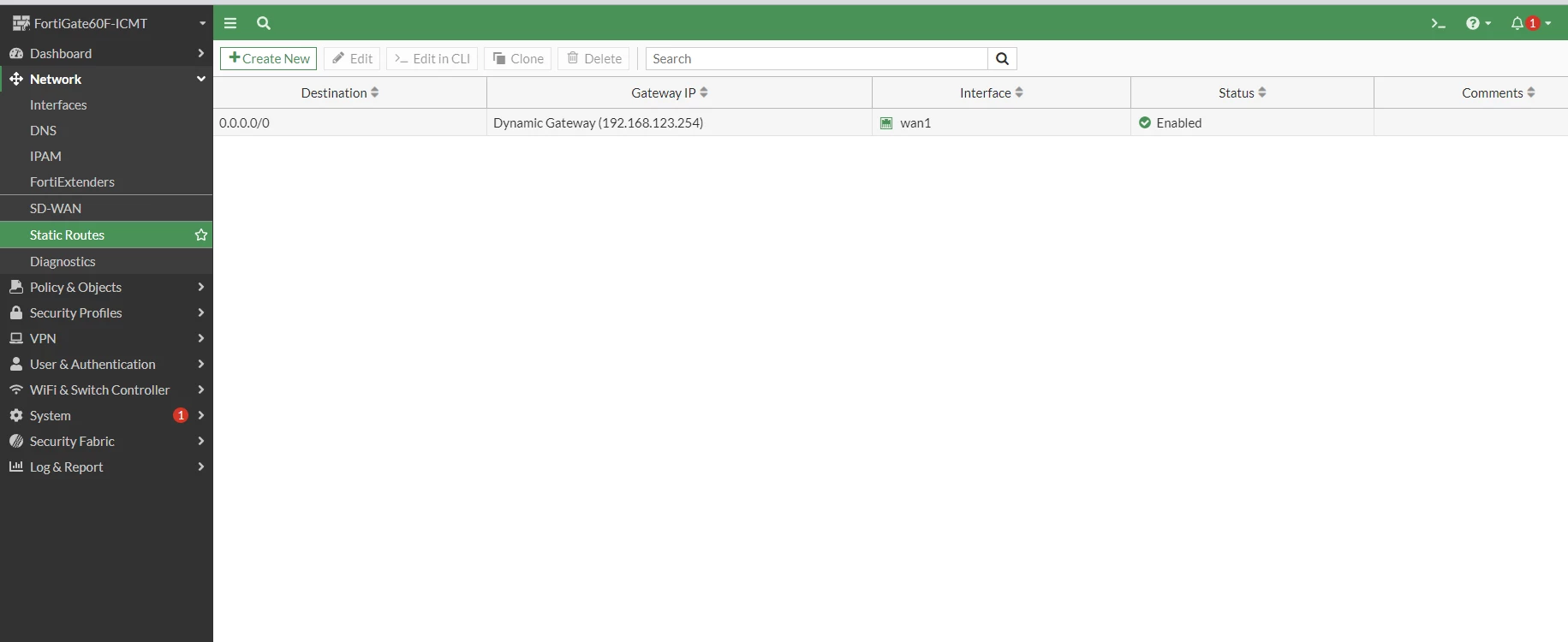

Thank you for be patient with a newbie :) Screenshot 2024-06-01 132559.png Screenshot 2024-06-01 132459.png

Toshi_Esumi

SuperUser

If you have only one circuit on the FG60x and one LAN can get out to the internet, the circuit and the routing/gateway configuration is fine.
Most likely a proper policy doesn't exist for the second LAN.
Please share us your policies if possible.

Toshi

gianlucatsAuthor

Explorer III

Hi, thank you for answer.

Here you have

Screenshot 2024-06-01 132559.png

Hong_FTNT

Staff & Editor

Hi @gianlucats,

I believe Toshi is referring to Firewall Policy. If one lan can get to the Internet, it means wan connection is working. You just need to make sure you have firewall policies to allow outbound traffic from both lan.

Regards,
