Software switch to Hardware switch

  • November 13, 2017
  • 3 replies
  • 15424 views

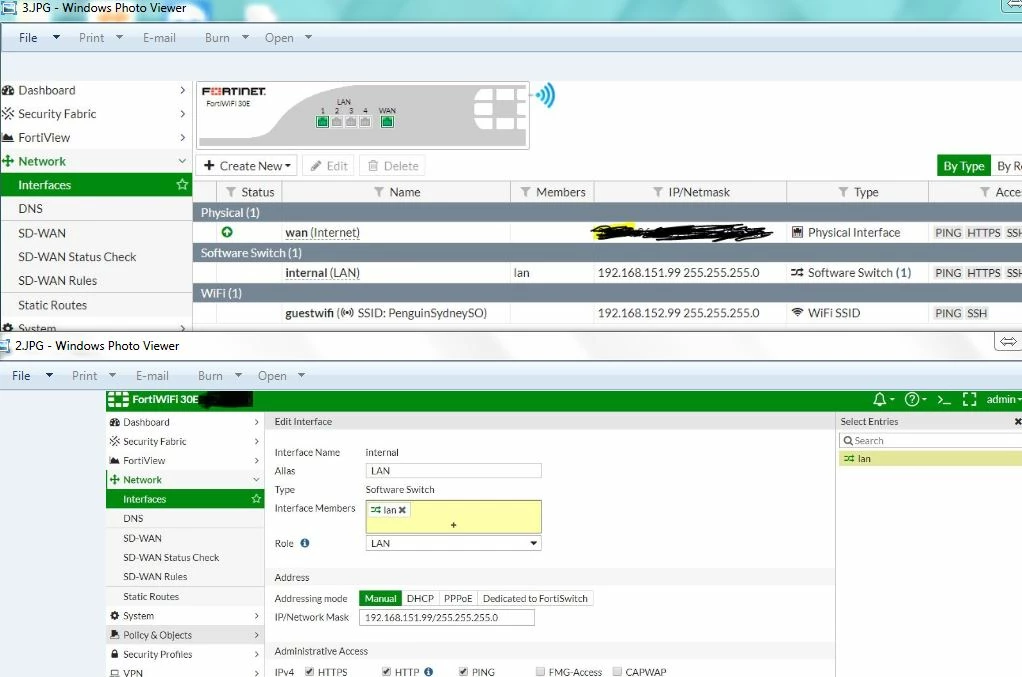

Hi All,   I got this fortiwifi 30E which has LAN interfaces as software switch. I want to have DMZ and use port 4 but not able remove port from LAN member. All ports bind to LAN members. I cannot see any option in GUI.  Anyone got idea? I have attached screenshots below

    3 replies

    Markus
    Markus
    New Member
    November 13, 2017

    Hi Gautam Not sure, no 30E here. Have you tried in CLI? conf sys switch-interface

    Also you have to be sure, that the interfaces aren't bound to something else. Best, Markus

    Steve_Fuller
    Steve_Fuller
    Visitor III
    November 13, 2017

    On 5.4 and 5.6



    conf system dhcp server purge end   conf firewall policy purge end   config system switch-interface purge end
