Question

SD-WAN link Failover delayed

  • March 20, 2025
  • 1 reply
  • 828 views

We have two links configured using the SD-WAN feature for fail-over. Recently, one of our links went down, and the fail-over process took approximately 10 minutes to complete. what is the cause of the delayed failover?



FortiGate

1 reply

sean3
sean3
Explorer II
March 20, 2025

your description is too ambiguous.

what interface selection strategy is used for the sd-wan rule?

how much SLA you used under the SD-WAN rule?

how much consecutive failure times before inactive? And how much for the restorage? this determine when an interface is really considered down in fortigate.

what is the time threshold for a probing to fail?

you'd better paste some screenshot of the sd-wan performance SLA and the rule configuration, otherwise it is hard to say.





    robinh007
    robinh007Author
    Explorer III
    March 24, 2025

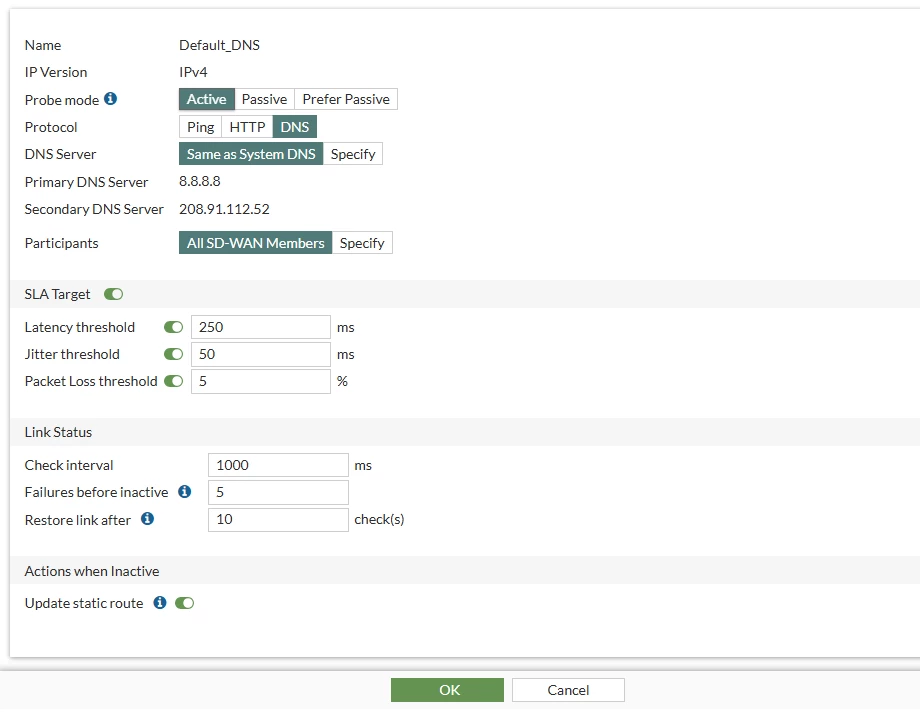

    Hello @sean3 this my current performance SLA.Performan_SLA_Detail.PNG
