Question
IPSec: Why does " phase 2" fail?

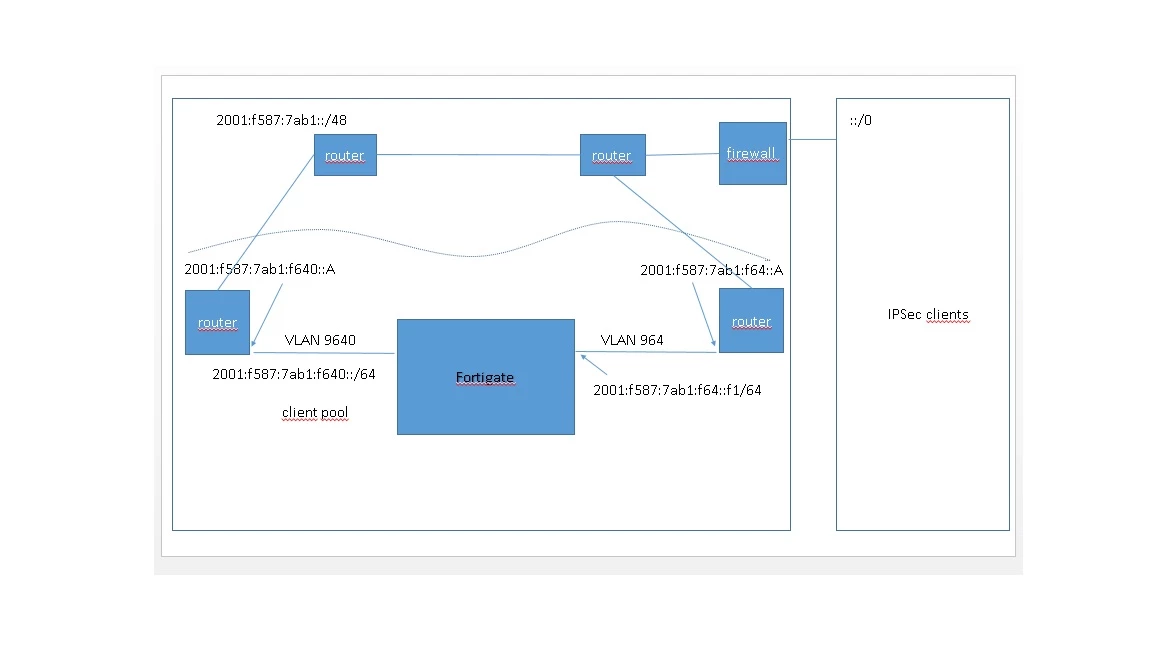

Hello, my goal is to setup an IPSec IPv6 only tunnel for roadwarriors / clients show vpn ipsec phase1-interface
edit " IKE61" set type dynamic set interface " VLAN964" set ip-version 6 set xauthtype auto set mode aggressive set proposal 3des-sha1 aes128-sha1 aes256-sha512 set authusrgrp " RemoteAccessUsers" set psksecret ENC fgkjhdfgkjdfhgkjhgkjhdfgjghdfjkghdkjfghgdkdjgdfjkhgkdghj nextshow vpn ipsec phase2-interface
edit " IKE62" set dst-addr-type subnet6 set keepalive enable set phase1name " IKE61" set proposal aes256-sha512 set src-addr-type subnet6 set dhcp-ipsec enable set dst-subnet6 2001::/16 set src-subnet6 2001::/16 next
edit " VLAN964" set vdom " root" config ipv6 set ip6-address 2001:f587:7ab1:f64::f1/64 set ip6-allowaccess ping fgfm end set interface " port6" set vlanid 964 next
edit " IKE61" set vdom " root" set type tunnel set interface " VLAN964" next

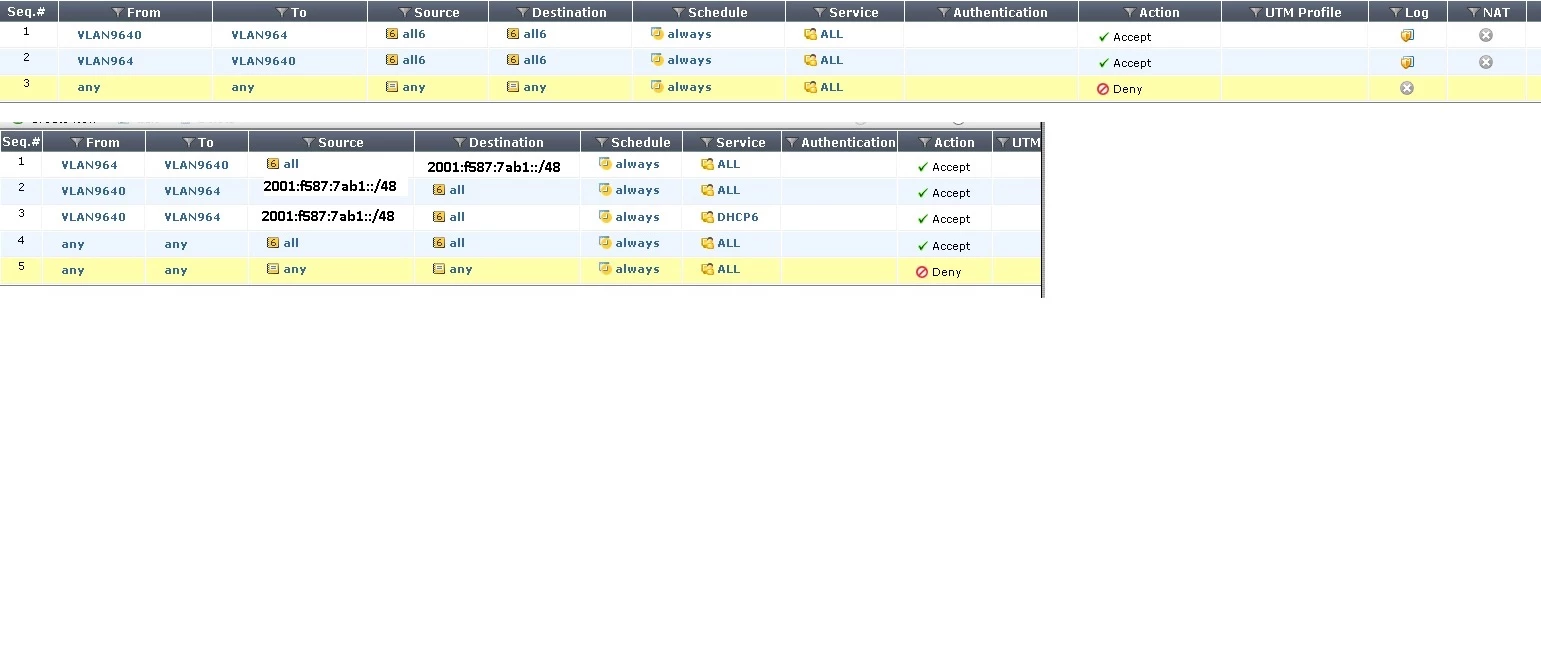

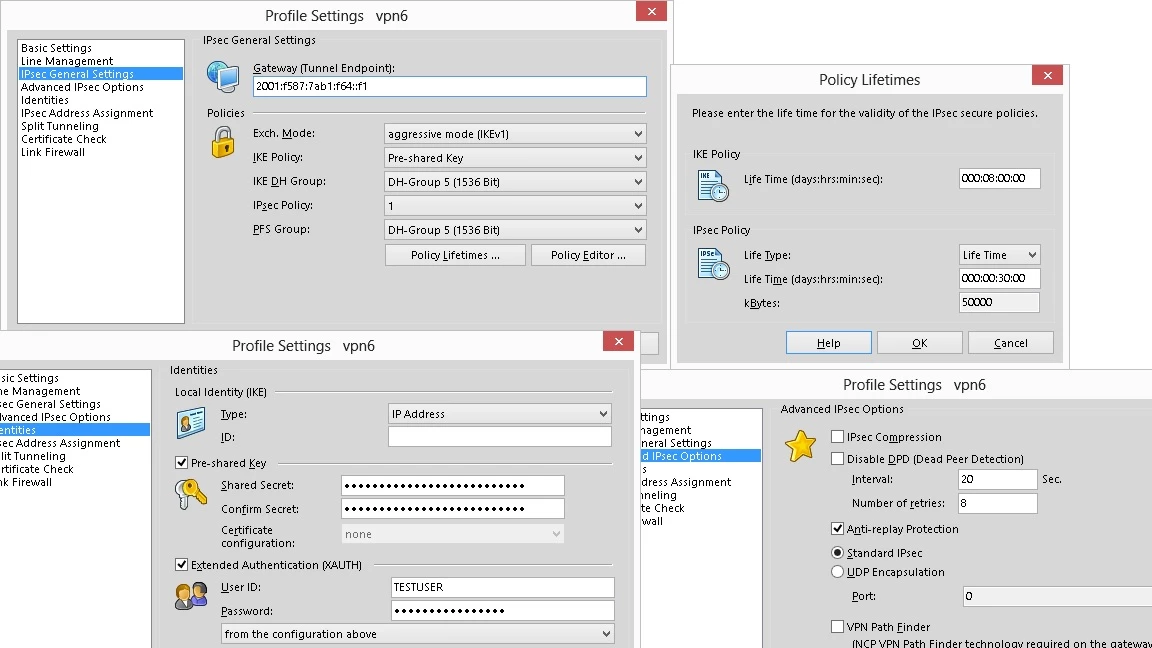

config firewall policy6 edit 1 set srcintf " VLAN964" set dstintf " VLAN9640" set srcaddr " all" set dstaddr " IPSec-IPv6-Pool" set action accept set schedule " always" set service " ALL" set logtraffic all next edit 2 set srcintf " VLAN9640" set dstintf " VLAN964" set srcaddr " all" set dstaddr " IPSec-IPv6-Pool" set action accept set schedule " always" set service " ALL" set logtraffic all next endLet´s debug IPSec and connect with the " NCP Secure Client" IPsec client from 2001:f587:7ab1:1222::f100
ike 0: comes 2001:f587:7ab1:1222::f100:10952->2001:f587:7ab1:f64::f1:500,ifindex=10754.... ike 0: IKEv1 exchange=Aggressive id=bbae340e1df2eeac/0000000000000000 len=648 ike 0: in BBAE340E1DF2EEAC00000000000000000110040000000000000002880400008000000001000000010000007401010003030000240101000080010007800200068003FADD80040005800B0001800C7080800E0100030000240201000080010007800200068003FDE980040005800B0001800C7080800E0100000000240301000080010007800200068003000180040005800B0001800C7080800E01000A0000C4574E5C62FF8DA1291358B282CC39409924B171FFA43CDFFFEDE5596831D51099B1A251F774EA1EA7BBDCF5E3F6C482F3300113152164D568F1CE818DF6799AA1AFD5CAB8CB989413FC70BF3A352944F64F9BC94387A09919618A4E1A9E5F6299604B4AFF109182A329D597177D96CCAAA2C8554A55F63432A9D52CEB0F1C8744608144146F29A58CF4A4BB92B57248A7723CB90B8115DFA0D636DA4FD50BA56939F55799FA81BF3F110CDE68D183FA24B974C95FE5663623B0011C92021B9ADF0500002CBF9AEFF76415F09444F7E618E280BD1D16C34DBDAB146878CA14ED44B81454AA7CBD2458E5D228F80D000018010000002001f58707ab1122200000000000094E20D00000CDA8E9378800100000D00000C09002689DFD6B7120D0000147D9419A65310CA6F2C179D9215529D560D00001490CB80913EBB696E086381B5EC427B1F0D0000144485152D18B6BBCD0BE8A8469579DDCC0D0000144A131C81070358455C5728F20E95452F0D000014AFCAD71368A1F1C96B8696FC775701000D000014EB4C1B788AFD4A9CB7730A68D56D088B0D000014CBE79444A0870DE4224A2C151FBFE0990D000014C61BACA1F1A60CC108000000000000000D0000184048B7D56EBCE88525E7DE7F00D6C2D3C00000000000001512F5F28C457168A9702D9FE274CC0100 ike 0: IKEv1 Aggressive, comes 2001:f587:7ab1:1222::f100:10952->2001:f587:7ab1:f64::f1 10754, peer-id=(null). ike 0:IKE61: check for IP assignment method ... ike 0:IKE61: no IP assignment method defined ike 0:IKE61:12042: responder: aggressive mode get 1st message... ike 0:IKE61:12042: VID unknown (8): DA8E937880010000 ike 0:IKE61:12042: VID draft-ietf-ipsra-isakmp-xauth-06.txt 09002689DFD6B712 ike 0:IKE61:12042: XAUTHv6 negotiated ike 0:IKE61:12042: VID draft-ietf-ipsec-nat-t-ike-03 7D9419A65310CA6F2C179D9215529D56 ike 0:IKE61:12042: VID draft-ietf-ipsec-nat-t-ike-02\n 90CB80913EBB696E086381B5EC427B1F ike 0:IKE61:12042: VID draft-ietf-ipsec-nat-t-ike-00 4485152D18B6BBCD0BE8A8469579DDCC ike 0:IKE61:12042: VID RFC 3947 4A131C81070358455C5728F20E95452F ike 0:IKE61:12042: VID DPD AFCAD71368A1F1C96B8696FC77570100 ike 0:IKE61:12042: DPD negotiated ike 0:IKE61:12042: VID unknown (16): EB4C1B788AFD4A9CB7730A68D56D088B ike 0:IKE61:12042: VID unknown (16): CBE79444A0870DE4224A2C151FBFE099 ike 0:IKE61:12042: VID unknown (16): C61BACA1F1A60CC10800000000000000 ike 0:IKE61:12042: VID FRAGMENTATION 4048B7D56EBCE88525E7DE7F00D6C2D3C0000000 ike 0:IKE61:12042: VID CISCO-UNITY 12F5F28C457168A9702D9FE274CC0100 ike 0:IKE61:12042: peer supports UNITY ike 0:IKE61:12042: negotiation result ike 0:IKE61:12042: proposal id = 1: ike 0:IKE61:12042: protocol id = ISAKMP: ike 0:IKE61:12042: trans_id = KEY_IKE. ike 0:IKE61:12042: encapsulation = IKE/none ike 0:IKE61:12042: type=OAKLEY_ENCRYPT_ALG, val=AES_CBC. ike 0:IKE61:12042: type=OAKLEY_HASH_ALG, val=SHA2_512. ike 0:IKE61:12042: type=AUTH_METHOD, val=PRESHARED_KEY_XAUTH_I. ike 0:IKE61:12042: type=OAKLEY_GROUP, val=1536. ike 0:IKE61:12042: ISKAMP SA lifetime=28800 ike 0:IKE61:12042: selected NAT-T version: RFC 3947 ike 0:IKE61:12042: cookie bbae340e1df2eeac/287a9032ff1c3b3b ike 0:IKE61:12042: ISAKMP SA bbae340e1df2eeac/287a9032ff1c3b3b key 32:27812E827ECF20A2C3D3EA224AEB043379133FF5F80E4F16E6DC88CE26DEFC34 ike 0:IKE61:12042: out BBAE340E1DF2EEAC287A9032FF1C3B3B0110040000000000000002800400003800000001000000010000002C01010001000000240201000080010007800200068003FDE980040005800B0001800C7080800E01000A0000C460297E7CE53B46A9383644A3BE6D13B9721A1F45DC4B74F6DFD90821C9B8E56899AE5863F2478A255D845570371439BB6319F50D25338EE77250FE404B1236E3C7514F6708B5AD68100E3993F241490DA2D43D3AEA130CF1CE8F62756006CD5F3BC9B8D2B1B4184FC601A3954E15C3AD1FB857A5FD7913122F7577CD25FEB64D09213544EE278632BEDD04F5B7733F86F6D8F6F2EC7C02A861F168D15697D82DFA36011B56B96FFBE5FB86C3B5F08E9A71F75815066667DCDF0505FBC3DADCBB050000148AFFA843E6C3149B6303F68B25E3D98208000018050000002001f58707ab1F6400000000000000F10D000044EC5554247234005FAFCA8CD66F879802C18402E4979E50E136C43CBCCFB15135C777D426AD68CC3173547A7B25A2A5FCC184B5646101C0E32E85103E3E9083B2140000144A131C81070358455C5728F20E95452F14000044494A2350EC339BA6B85E647C26BE5FAC838064825DF302D3A97A10E1F8EDAC1E077D615F60ED252D9413788C84526FD1CE0D6F4CBA587BD6812648F9DB77FBCE0D000044091E54B4B44C4052A46109E41CC0DB698AAFD3B8C54D9604F479458CA6E9F9104CDA74F9587C547E8154654AC3B8750E17EDEC8EEF18B92484FA938599CF2F440D000014AFCAD71368A1F1C96B8696FC775701000D00000C09002689DFD6B7120D00001512F5F28C457168A9702D9FE274CC02040D0000148299031757A36082C6A621DE000500B3000000144048B7D56EBCE88525E7DE7F00D6C2D3 ike 0:IKE61:12042: sent IKE msg (agg_r1send): 2001:f587:7ab1:f64::f1:500->2001:f587:7ab1:1222::f100:10952, len=640, id=bbae340e1df2eeac/287a9032ff1c3b3b ike 0: comes 2001:f587:7ab1:1222::f100:10952->2001:f587:7ab1:f64::f1:500,ifindex=10754.... ike 0: IKEv1 exchange=Aggressive id=bbae340e1df2eeac/287a9032ff1c3b3b len=268 ike 0: in BBAE340E1DF2EEAC287A9032FF1C3B3B08100401000000000000010C96F0C437A10CAB78AD41689E76F86C41D594D23077C5808C147EAEBCF4CB76011DE0AFACA6761CC7F47C2E70BFE396E7804D37B55D297C6110893F721EC92AC005873F931FA3ABEF254DB680E60796942E022B75FEF8AE201393F3DA585E17E426594020CC0FEF05F1C5713EFC322671D2FD65B580458EB66F5B6FEEB74BEAA08D10DC9CF1BC035C7D34E99241A6A25C5E948F6E2478187D0253418CF508FEEEC4FD49338E087D003FC0965C887EE14FB1FEF6B83384BEED1570EBB75AFCBA05F773B4DB2BF100425E0EA25082F989AB170E7832C7524CA57ECE221B49CA52C5CB951160D57FFBE9D3DFAF9FA2E9981B ike 0:IKE61:12042: responder: aggressive mode get 2nd response... ike 0:IKE61:12042: dec BBAE340E1DF2EEAC287A9032FF1C3B3B08100401000000000000010C140000447B05E44306C79D474F20EC7C7EDC9630A257CE20DA4D4ECAD34BE655DA4F6838766744A9DBA9CD797DB87FDB7B4BB953D95977CB7B6FE27C6A7218A9A5E2B5CE14000044091E54B4B44C4052A46109E41CC0DB698AAFD3B8C54D9604F479458CA6E9F9104CDA74F9587C547E8154654AC3B8750E17EDEC8EEF18B92484FA938599CF2F440B000044494A2350EC339BA6B85E647C26BE5FAC838064825DF302D3A97A10E1F8EDAC1E077D615F60ED252D9413788C84526FD1CE0D6F4CBA587BD6812648F9DB77FBCE0000001C0000000101106002BBAE340E1DF2EEAC287A9032FF1C3B3B0000000000000000 ike 0:IKE61:12042: received NAT-D payload type 20 ike 0:IKE61:12042: received NAT-D payload type 20 ike 0:IKE61:12042: received notify type 24578 ike 0:IKE61:12042: PSK authentication succeeded ike 0:IKE61:12042: authentication OK ike 0:IKE61:12042: NAT not detected ike 0:IKE61:12042: established IKE SA bbae340e1df2eeac/287a9032ff1c3b3b ike 0:IKE61: adding new dynamic tunnel for 2001:f587:7ab1:1222::f100:10952 ike 0:IKE61_0: added new dynamic tunnel for 2001:f587:7ab1:1222::f100:10952 ike 0:IKE61_0:12042: HA send IKE SA bbae340e1df2eeac/287a9032ff1c3b3b ike 0:IKE61_0:12042: processing INITIAL-CONTACT ike 0:IKE61_0: flushing ike 0:IKE61_0: flushed ike 0:IKE61_0:12042: processed INITIAL-CONTACT ike 0:IKE61_0:12042: initiating XAUTH. ike 0:IKE61_0:12042: sending XAUTH request ike 0:IKE61_0:12042: enc BBAE340E1DF2EEAC287A9032FF1C3B3B0810060145C2B70C000000740E000044A9C39D7658849E8CC226C253B91855263123AF9AE2BECB05014AC7EFBFF7F4B0D63DEC479726857D511F957214E8BDE7DE22299894B152129B28759DE58AEE0F000000140100DEBFC088000040890000408A0000 ike 0:IKE61_0:12042: out BBAE340E1DF2EEAC287A9032FF1C3B3B0810060145C2B70C0000007C6D1D4A8D25E0D077C3DCD8868ACF74C9242249345C3CF7E59DBBD70C2BB3C8E510D5E91DEDB665F4560F71614653B8EA283741539FCFA23B7F0C8FCD6A339976BB5CBFC6A5253C2CC39F61EA453B8132B4229AE0F0766BDCC6A82EA0B60EA915 ike 0:IKE61_0:12042: sent IKE msg (cfg_send): 2001:f587:7ab1:f64::f1:500->2001:f587:7ab1:1222::f100:10952, len=124, id=bbae340e1df2eeac/287a9032ff1c3b3b:45c2b70c ike 0:IKE61_0:12042: peer has not completed XAUTH exchange ike 0: comes 2001:f587:7ab1:1222::f100:10952->2001:f587:7ab1:f64::f1:500,ifindex=10754.... ike 0: IKEv1 exchange=Mode config id=bbae340e1df2eeac/287a9032ff1c3b3b:45c2b70c len=140 ike 0: in BBAE340E1DF2EEAC287A9032FF1C3B3B0810060145C2B70C0000008C3AB59FE6997439091BF8FFC51A6AA8B5692BD686001ECE2D3C1CCC27B482144710DEE9129A0A0789E7FCC2D425ACDADB1280C8FCDF4E1516B87C8A6AB0812B6A3AB50711ADCEAB299E4BAE7DD98F7A81929A62D30F394DCCD0F6EF15E95A11CADF92858980BFBA1ABA1DFE27C80ECFA6 ike 0:IKE61_0:12042: dec BBAE340E1DF2EEAC287A9032FF1C3B3B0810060145C2B70C0000008C0E000044AE78372B3F4E7E51D4AC59C27C9445B42CBCBD33F8399D6A5A49B689580F6B969D72FDEEADE6F9E8EEECCBB6B249B986B6F74D64C231F5B3927D76CA08936A71000000220200DEBFC0880000408900066261727A3634408A0008464265414447342D00000000000000000000 ike 0:IKE61_0:12042: received XAUTH_USER_NAME ' TESTUSER' length 8 ike 0:IKE61_0:12042: received XAUTH_USER_PASSWORD length 16 ike 0:IKE61_0: XAUTH user " TESTUSER" in group ' RemoteAccessUsers' (1) ike 0:IKE61_0: XAUTH 4556 pending ike 0: XAUTH 4556 result 0 ike 0:IKE61_0: XAUTH succeeded for user " TESTUSER" ike 0:IKE61_0:12042: enc BBAE340E1DF2EEAC287A9032FF1C3B3B0810060137F045E20000006C0E000044DEECDBD54B2EDD01C052BFEAC350E7E60E05C0AD3B220996900BC5B2C01B4F20C097499A7870CC9753DF1F93CBF7BF0F27CB5E03C959D38456F9B342936EE0F00000000C0300DEBFC08F0001 ike 0:IKE61_0:12042: out BBAE340E1DF2EEAC287A9032FF1C3B3B0810060137F045E20000007C878113CDD7AF8FCB4C5F1EB0B9A776729F8234CCD33D20B6A0ABA21F946EFB0BA0A23EB73C9559F5F2C53A1C6B365BC46F98CEF2B2D0925DC38A4E9B1D73C5F9BC64E5FCFDE548F91BDBA61D07FB522734185F766D4B483F108F9F708BEBACA8 ike 0:IKE61_0:12042: sent IKE msg (cfg_send): 2001:f587:7ab1:f64::f1:500->2001:f587:7ab1:1222::f100:10952, len=124, id=bbae340e1df2eeac/287a9032ff1c3b3b:37f045e2 ike 0:IKE61_0: HA send XAUTH ike 0: comes 2001:f587:7ab1:1222::f100:10952->2001:f587:7ab1:f64::f1:500,ifindex=10754.... ike 0: IKEv1 exchange=Mode config id=bbae340e1df2eeac/287a9032ff1c3b3b:37f045e2 len=108 ike 0: in BBAE340E1DF2EEAC287A9032FF1C3B3B0810060137F045E20000006CFC190CBAA5FE34219A36906E8B69E0E341470D42F09EA0AFB3B04529AE479302217ab1928CF47A0DE221987E3100F441D4B52B82BC2D532310E2419134687BBD4D5A91A42CA34A4D2A4699191ADF47031 ike 0:IKE61_0:12042: dec BBAE340E1DF2EEAC287A9032FF1C3B3B0810060137F045E20000006C0E00004497ECD03318F9942B0FCA83B3FF728FF7EA0A827CA76654870E664196E730A42AFF2A68A28924069B1532FAEFC136430F3EAC89AAE3B7356DCC99CB6BBE974CF30000000C0400DEBF408F0000 ike 0: comes 2001:f587:7ab1:1222::f100:10952->2001:f587:7ab1:f64::f1:500,ifindex=10754.... ike 0: IKEv1 exchange=Quick id=bbae340e1df2eeac/287a9032ff1c3b3b:95f810ea len=428 ike 0: in BBAE340E1DF2EEAC287A9032FF1C3B3B0810200195F810EA000001AC0C73AA26556D7FCFC9265354CFD74E45B934B11B18889CD10C0F14C4A799F96FAA317228E99E7642FFA76C9A87616EF0E156A243760246D2DCA891D0182137922680306C9CB766DF9F5FFC3EA4F3D5C7B72B12B74424CE095AC87641F089096599E2541129D12DFC5368CF321AFEFA66E4822858931FDF328EE70E0F02E1FDB1B1517631C0472CEA9FC590414D0F5489899225EF5982FC7B350A2B774A4227FBBAEBB11A8FEDA2937388D27C7F98D979C77D09264799974F39992A36F44BD940AC91493BDDBB626DE5A98B04C7DD6FEF8DD94CDA30485D0E279E26106AA577F8579D2BDFFCF3D1834EB7245BAA37425AA9C3F54133125829DCC8DE2013C291CC4D56630AEA0DFCDB81C82CB3ACD30D39A129799BF63F8FA6FF68584DD192C0C08F482FEC7B459D28DBEDC574363C463A02977C64715E53E5D379DD8287EE04FAF5AD48D98264D8B31562A947CC39861676E2C7D612BE73964E9F803357DD46EB044323B23D1186061819A7F9A2A5587BA39167F3412B6AD1AC2EDF156CE76B2D8C653FA96360BA7B515F1DE963E1FBFC ike 0:IKE61_0:12042:896294: responder received first quick-mode message ike 0:IKE61_0:12042: dec BBAE340E1DF2EEAC287A9032FF1C3B3B0810200195F810EA000001AC01000044DE31F6A7D3D187050B9D8EA8BD4B40C2DEB4F6957D31F6D69FC3FC4DD0F627C10E059BCDC00169A372BDD665672E0A0FD0F986FECFFD0B692D79FE4603A01FA70A00003800000001000000010000002C010304010A8AB15400000020010C00008005000780040001800100018002070880030005800601000400002CE4A6289DCADD9B573DCDEE70DA396212560327970632CE4057C3AFBD088D73655E9CEF72726891E8050000C4338F714A1F38F6AFD8AF01A90B9A63F1B27A46821DD440B9BC1619303B904A71D195E1FA1E1966B75D5E2A3E57C58818F94275BF942E00F044E206AB010C1519450ADE05F960312FE4B1EDC9549C39F3D8310108EBFAD519B7EE2BF5F14993683BBA09917ED062AF4BB1190F44EB676A89B4DDAB0EE66ECEF847C2B315A30D89232EAA920C67A9D06CD336B62BD8B4C58AB3531CEC78FC82B2C793E602F1A36E40F9445B5BB5BC2BB57609574C550FF0A1853C1EA5C75AB57D28E8113B9F077D0500000C011100442001f587000000100411004300000000000000000000000000000000 ike 0:IKE61_0:12042:896294: peer proposal is: peer:17:32.1.6.56-32.1.6.56:68, me:17:0.0.0.0-255.255.255.255:67 ike 0:IKE61_0:12042:IKE62:896294: trying ike 0:IKE61_0:12042:896294: no matching phase2 found ike 0:IKE61_0:12042:896294: failed to get responder proposal ike 0:IKE61_0:12042: error processing quick-mode message from 2001:f587:7ab1:1222::f100 as responder ike 0:FClient-RAS_3:12030: send IKEv1 DPD probe, seqno 435 ike 0:FClient-RAS_3:12030: enc 2B2C7EC3D0CD8FBE090BD7AB17D2EDFC0810050179E8997C000000540B000018E3C679CC33F3F5F50080796B1727F1BEC110A3DC000000200000000101108D282B2C7EC3D0CD8FBE090BD7AB17D2EDFC000001B3 ike 0:FClient-RAS_3:12030: out 2B2C7EC3D0CD8FBE090BD7AB17D2EDFC0810050179E8997C0000005C0DEEEA82B422C088313A80148057551EA15C58C9733B5961CE91551EBB1AB828FFABFBE3776EFBB744EC01303B8893D6A53D97BA530E619041D39AF9906E36ED ike 0: IKEv1 exchange=Informational id=2b2c7ec3d0cd8fbe/090bd7ab17d2edfc:c324acb6 len=92 ike 0: in 2B2C7EC3D0CD8FBE090BD7AB17D2EDFC08100501C324ACB60000005C51092F506CF4C990B83909605DA0974E6964A1AFDB75EF787B41087B6105791F1516D0CF39B9E7EF59D69FE743B87ED55C925BDCC2333B412A17387D610D4F18 ike 0:FClient-RAS_3:12030: dec 2B2C7EC3D0CD8FBE090BD7AB17D2EDFC08100501C324ACB60000005C0B000018F9C461E39D7281327AEAE8A52208F9C6A23EBD76000000200000000101108D292B2C7EC3D0CD8FBE090BD7AB17D2EDFC000001B3E68A9FD882EB9C07 ike 0:FClient-RAS_3:12030: notify msg received: R-U-THERE-ACK ike 0:IKE61_0: link is idle 10754 2001:f587:7ab1:f64::f1->2001:f587:7ab1:1222::f100:500 dpd=1 seqno=1 ike 0:IKE61_0:12042: send IKEv1 DPD probe, seqno 1 ike 0:IKE61_0:12042: enc BBAE340E1DF2EEAC287A9032FF1C3B3B08100501D390A9DE000000800B000044F7A2576B9C98001ABA9969E1C3B82BB7AC761484F8A494D7A12F3C3459304FB6BECF4A8BB5B5B7752815EECD17C77798873D6895E9DB483F93A1917C9F79B8BB000000200000000101108D28BBAE340E1DF2EEAC287A9032FF1C3B3B00000001 ike 0:IKE61_0:12042: out BBAE340E1DF2EEAC287A9032FF1C3B3B08100501D390A9DE0000008C54A8E699C0A554A64A3DB27DFA369FC34A226FE1C1BD1F47BC5A804F88983DD3D9E82975F461523ADB514E4ECCCFDBDE586F67B03503FAAB63CB5BBD2957B7B8BD4683A240D5D3E35AE110107A5A1ECD088B0242215799C6F449BA50B568C7F0B62F22939CF22D5E7B9CDCCBF8C771D3 ike 0:IKE61_0:12042: sent IKE msg (R-U-THERE): 2001:f587:7ab1:f64::f1:500->2001:f587:7ab1:1222::f100:10952, len=140, id=bbae340e1df2eeac/287a9032ff1c3b3b:d390a9de ike 0: comes 2001:f587:7ab1:1222::f100:10952->2001:f587:7ab1:f64::f1:500,ifindex=10754.... ike 0: IKEv1 exchange=Informational id=bbae340e1df2eeac/287a9032ff1c3b3b:04cd019e len=140 ike 0: in BBAE340E1DF2EEAC287A9032FF1C3B3B0810050104CD019E0000008CD98F39F3F22DD846B119ABB93CC78EDDE408CFAC97AEE0D0F7B07E087E756F53CE3F519768D1850902F41FC03AA6A64786503FE929A582DF2E656F81456ADFE9734EE56292DB8362DD973EB95EA173E28A1C1CC516DDE26695959A47A82610E60BD0C21696FCDE608E3A28E974F2BE1A ike 0:IKE61_0:12042: dec BBAE340E1DF2EEAC287A9032FF1C3B3B0810050104CD019E0000008C0B00004493FC1E34AFD766DE6B2ABB99833735909DA8747D8D5F1591E7378204DC4D0F8F524E707641FF74E165ED2ECEA8858BA69BFD1CFEF6F163434B6B56F069121680000000200000000101108D29BBAE340E1DF2EEAC287A9032FF1C3B3B00000001000000000000000000000000 ike 0:IKE61_0:12042: notify msg received: R-U-THERE-ACK ike 0: comes 2001:f587:7ab1:1222::f100:10952->2001:f587:7ab1:f64::f1:500,ifindex=10754.... ike 0: IKEv1 exchange=Quick id=bbae340e1df2eeac/287a9032ff1c3b3b:95f810ea len=428 ike 0: in BBAE340E1DF2EEAC287A9032FF1C3B3B0810200195F810EA000001AC0C73AA26556D7FCFC9265354CFD74E45B934B11B18889CD10C0F14C4A799F96FAA317228E99E7642FFA76C9A87616EF0E156A243760246D2DCA891D0182137922680306C9CB766DF9F5FFC3EA4F3D5C7B72B12B74424CE095AC87641F089096599E2541129D12DFC5368CF321AFEFA66E4822858931FDF328EE70E0F02E1FDB1B1517631C0472CEA9FC590414D0F5489899225EF5982FC7B350A2B774A4227FBBAEBB11A8FEDA2937388D27C7F98D979C77D09264799974F39992A36F44BD940AC91493BDDBB626DE5A98B04C7DD6FEF8DD94CDA30485D0E279E26106AA577F8579D2BDFFCF3D1834EB7245BAA37425AA9C3F54133125829DCC8DE2013C291CC4D56630AEA0DFCDB81C82CB3ACD30D39A129799BF63F8FA6FF68584DD192C0C08F482FEC7B459D28DBEDC574363C463A02977C64715E53E5D379DD8287EE04FAF5AD48D98264D8B31562A947CC39861676E2C7D612BE73964E9F803357DD46EB044323B23D1186061819A7F9A2A5587BA39167F3412B6AD1AC2EDF156CE76B2D8C653FA96360BA7B515F1DE963E1FBFC ike 0:IKE61_0:12042:896297: responder received first quick-mode message ike 0:IKE61_0:12042: dec BBAE340E1DF2EEAC287A9032FF1C3B3B0810200195F810EA000001AC01000044DE31F6A7D3D187050B9D8EA8BD4B40C2DEB4F6957D31F6D69FC3FC4DD0F627C10E059BCDC00169A372BDD665672E0A0FD0F986FECFFD0B692D79FE4603A01FA70A00003800000001000000010000002C010304010A8AB15400000020010C00008005000780040001800100018002070880030005800601000400002CE4A6289DCADD9B573DCDEE70DA396212560327970632CE4057C3AFBD088D73655E9CEF72726891E8050000C4338F714A1F38F6AFD8AF01A90B9A63F1B27A46821DD440B9BC1619303B904A71D195E1FA1E1966B75D5E2A3E57C58818F94275BF942E00F044E206AB010C1519450ADE05F960312FE4B1EDC9549C39F3D8310108EBFAD519B7EE2BF5F14993683BBA09917ED062AF4BB1190F44EB676A89B4DDAB0EE66ECEF847C2B315A30D89232EAA920C67A9D06CD336B62BD8B4C58AB3531CEC78FC82B2C793E602F1A36E40F9445B5BB5BC2BB57609574C550FF0A1853C1EA5C75AB57D28E8113B9F077D0500000C011100442001f587000000100411004300000000000000000000000000000000 ike 0:IKE61_0:12042:896297: peer proposal is: peer:17:32.1.6.56-32.1.6.56:68, me:17:0.0.0.0-255.255.255.255:67 ike 0:IKE61_0:12042:IKE62:896297: trying ike 0:IKE61_0:12042:896297: no matching phase2 found ike 0:IKE61_0:12042:896297: failed to get responder proposal ike 0:IKE61_0:12042: error processing quick-mode message from 2001:f587:7ab1:1222::f100 as responderReading some blogs, the reason for failing could be the IPv6 range for " Quick Mode Selector" This one: peer proposal is: peer:17:32.1.6.56-32.1.6.56:68, me:17:0.0.0.0-255.255.255.255:67 seems to be the reason, right? But as we are living within IPv6 world, that part doesn´t belong here? So why is phase 2 failing? It would be great if someone could give me a hint..
