IPsec tunnel uptime proxy

I am looking for an indicator of uptime for my IPSec tunnel.

I find these 3 commands but I can see nothing that can act as such.

Any ideas greatly appreciated

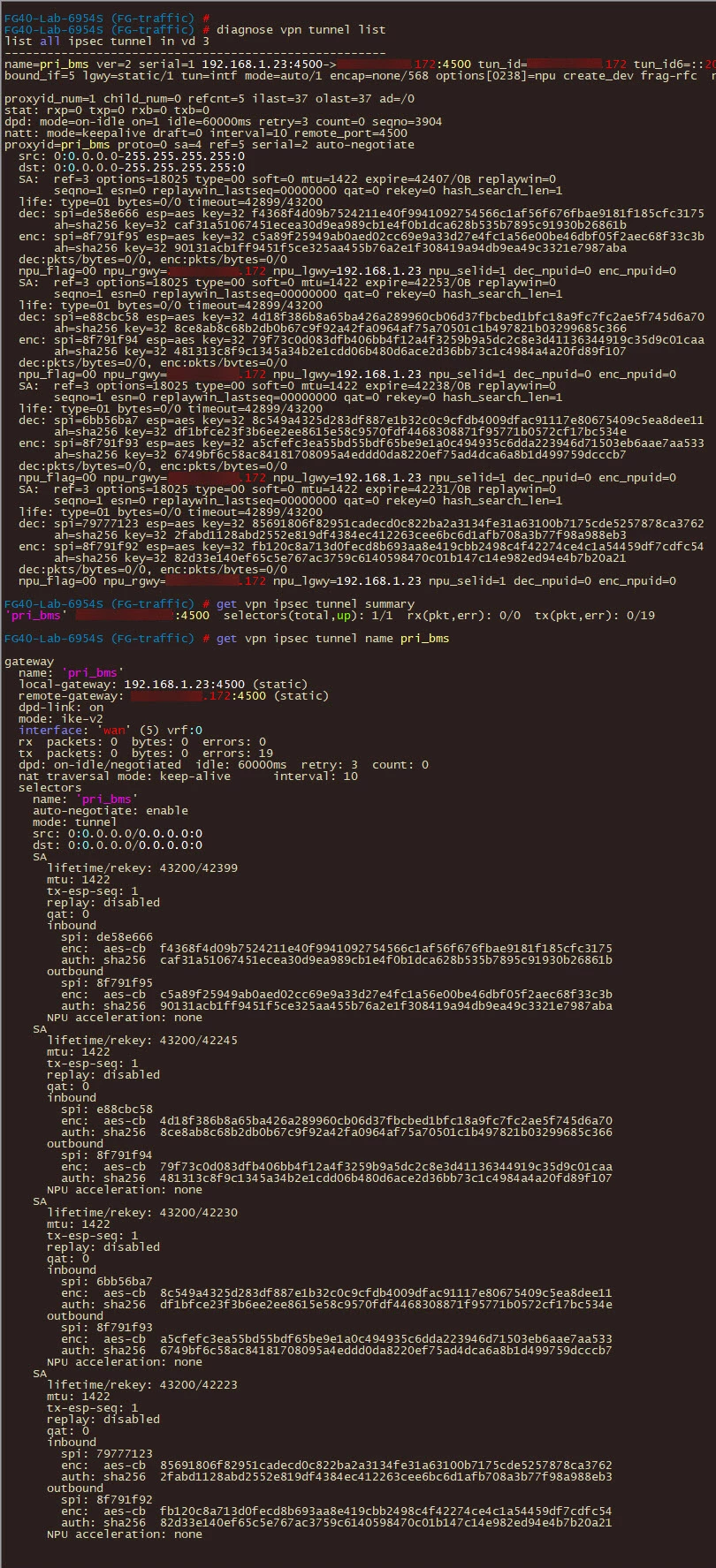

2023-11-07 08h34m24s0011 Uptime proxy.jpg

 

slouw
slouwAnswer
Explorer III
November 7, 2023

@kaman thnaks.....got what I needed here:

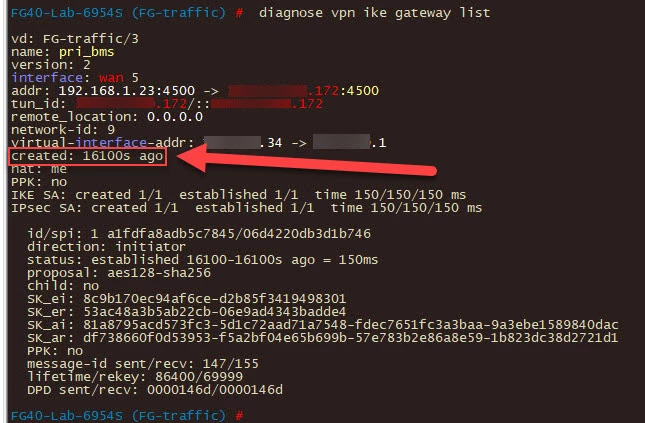

2023-11-08 06h53m12s62 uptime.jpg

 

2 replies

kaman
Staff
Staff
November 7, 2023

Hi slouw,

From the CLI you should be able to see the creation time and other statistics by running the following commands:



diag vpn ike gateway list
diag vpn tunnel list



-To view details of all IPsec tunnels:
#get ipsec tunnel details



-To list IPsec tunnels by name:
#get ipsec tunnel name



-To view a summary of IPsec tunnel information:
#get ipsec tunnel summary



The IPsec monitor page has been flatten to list tunnels only in the way they
are configured - by phase1. Phase2s are still listed, but are listed as an optional column. A tunnel is treated as "up" if at least one phase2 selector is active. The Uptime column has been removed from the monitor page

slouw
slouwAuthorAnswer
Explorer III
November 7, 2023

@kaman thnaks.....got what I needed here:

2023-11-08 06h53m12s62 uptime.jpg

 
