Inter VLAN routing

  • December 20, 2023
  • 2 replies
  • 5481 views

Hi everyone,



I have a Fortigate 30E and zyxel GS1900 switch in my office.

We have two VLANs and the routing is 'Router on a Stick' mode.

Recently we found the inter-VLAN is slower than speed inside the same VLAN.

Here are our test results using iPerf3 (using NAS as the iPerf server to do speed test)



  1. From PC in VLAN3 to NAS in VLAN3: 950M
  2. From PC in VLAN1(wired) to NAS in VLAN3: 550M
  3. From PC in VLAN1(WiFi) to NAS in VLAN3: 350M

We are wondering it is a routing problem.   Could you please advise what we can do to improve the inter-VLAN connection speed?

Thank you.

Best answer by ebilcari

The link aggregation may help to increase the throughput in case you don't apply any security feature for that traffic. For the Fortigate model you can refer to this matrix and choose one of the new models that have support for "Virtual Hardware Switch".

2 replies

ebilcari
Staff
ebilcari
Staff
December 20, 2023

Same VLAN communication is done through the switch that usually works in wire speed so it can not be compared directly. Since you are using an entry level of the FGT family I guess you are reaching its limits. Kindly refer to the Datasheet of this product to have a better understanding of the capabilities of this model and the features that may have been enabled that may affect the overall throughput. This doesn't look like a routing problem.

Regarding the point 3 that should be investigated on the WiFi part and the connection speed of the end host.

Emirjon
    YHC
    YHCAuthor
    Explorer
    December 20, 2023

    Thanks ebilcari.

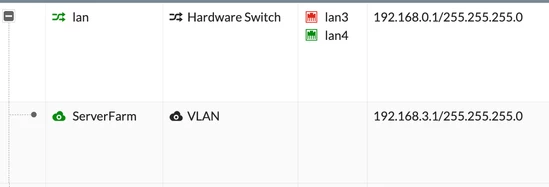

    Actually VLAN1 is the default 'hardware switch' lan.  And our VLAN3 is attached to the 'hardware switch' lan.  See below screen shots.

    Will it be helpful (increase connection speed) by attaching VLAN3 to wan interface?

    Or will it be helpful if I use link aggregation to connect Fortigate and our GS1900 switch (making the stick b)?



    If both above will not work, could you advise us what model of Fortigate should we use to improve the inter-VLAN speed?

    Thank you.




    截圖 2023-12-21 00.18.25.png

    ebilcari
    Staff
    ebilcariAnswer
    Staff
    December 22, 2023

    The link aggregation may help to increase the throughput in case you don't apply any security feature for that traffic. For the Fortigate model you can refer to this matrix and choose one of the new models that have support for "Virtual Hardware Switch".

    Emirjon
      AEK
      SuperUser
      AEK
      SuperUser
      December 20, 2023

      You can try remove all security profiles from the related policy and redo the test.
