Incorrect Message on bandwidth report

  • April 25, 2018
  • 1 reply
  • 4216 views

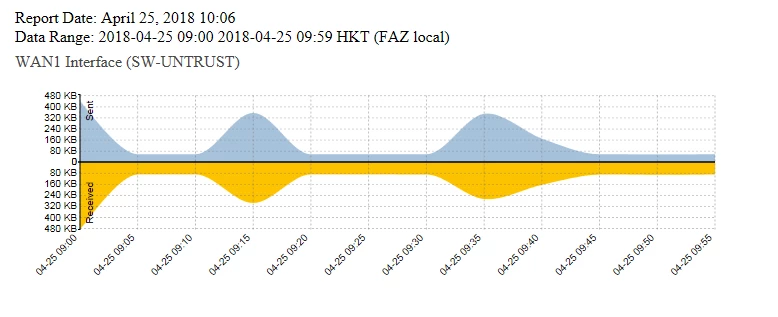

Dear All,   Actually, I'm working as IT company and owned many of Forit device, their traffic log is being totally stored in FAZ. FAZ is using 5.4.2.   I have a few question on how to generate a standard bandwidth usage report that y-axiz must be represented ISP bandwidth but not calcualated by dataset itself. Means, most of dataset is sumed the traffic on specific interface.   For example, if I have 100M ADSL bandwidth and monitor one of source interface on WAN port in FAZ,  maximum bandwidth in y-axiz should be appeared as 100M.  But, it is not true.





It is because I knew and proved a set of dataset existing but not compatible with me.   Anyone can help me. Please share.   Thank you so much.   Frankie

    Best answer by Toshi_Esumi

    Technically FortiAnalyzer never shows "bandwidth" usage in bps. The number showing there is data amount  through the interface in a given time period in KBytes or MBytes reported by log messages. Only way to see bandwidth information on an FG is to get in the FG via GUI and add usage (or bandwith, name differs depending on version) gadget to your dashboard.

    1 reply

    Toshi_Esumi
    SuperUser
    Toshi_EsumiAnswer
    SuperUser
    April 25, 2018

    Technically FortiAnalyzer never shows "bandwidth" usage in bps. The number showing there is data amount  through the interface in a given time period in KBytes or MBytes reported by log messages. Only way to see bandwidth information on an FG is to get in the FG via GUI and add usage (or bandwith, name differs depending on version) gadget to your dashboard.

    mcu1102
    mcu1102Author
    New Member
    April 25, 2018

    Thank you for your helping.
