Fried 61E

  • July 4, 2025
  • 2 replies
  • 1358 views

Hello:

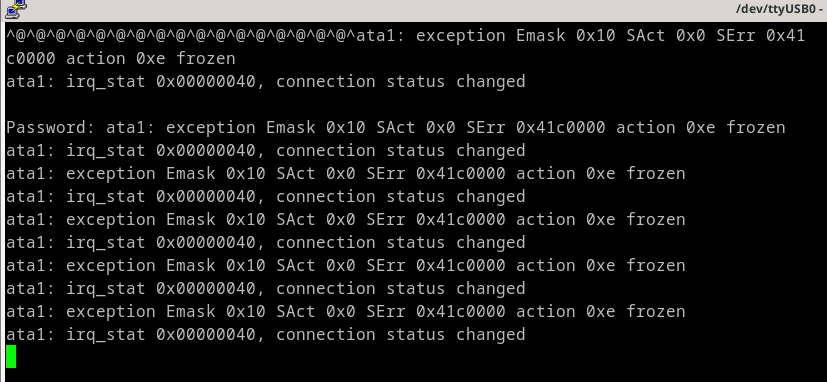

I recently lost power to my FG-61E and it did not "come back up". The console scrolls the following error:



ata1: exception Emask 0x10 SAct 0x0 SErr 0x41c0000 action 0xe frozen
ata1: irq_stat 0x00000040, connection status changed



I performed a factory reset to no avail. Is my emmc fried? If so, should I even keep the unit?



#diagnose hardware deviceinfo dis

Disk SYSTEM(boot) 3.6GiB type: EMMC [EMMC] dev: /dev/mmcblk0
partition 247.0MiB, 152.0MiB free mounted: Y label: dev: /dev/mmcblk0p1(boot) start: 0
partition 247.0MiB, 152.0MiB free mounted: N label: dev: /dev/mmcblk0p2(boot) start: 0
partition ref: 3 2.9GiB, 2.8GiB free mounted: Y label: dev: /dev/mmcblk0p3 start: 0



# get hardware status

Model name: FortiGate-61E
ASIC version: SOC3
ASIC SRAM: 64M
CPU: ARMv7
Number of CPUs: 4
RAM: 1866 MB
EMMC: 3662 MB(MLC) /dev/mmcblk0
Hard disk: not available
USB Flash: not available
Network Card chipset: FortiASIC NP6LITE Adapter (rev.)




Thanks in advance

Best answer by Yurisk

EMMC is the flash drive, and if it was fried I don't think you would get that far in the boot. But it does seem like FGT lost the harddisk (122 Gb) with the reasons may be many - harddisk failure, FGT disk controller (ATA?) failure. Anyway, if you have Forticare - ticket and most probably RMA would be in line. If you don't - worth detaching the aforementioned harddisk, and attaching it somewhere else to know if its him who failed or FGT (not that it would help in either case any further).

2 replies

BillH_FTNT
Staff
BillH_FTNT
Staff
July 4, 2025

Hi RComb,

If you need to resolve this issue as soon as possible, I recommend contacting Fortinet TAC.  I think the issue may be related to hardware or a cable connection between components. Please try powering off the device, wait for about 30 seconds, and then power it back on. In addition, I will also discuss this with our engineering team. Thank you

Regards

Bill

    RComb
    RCombAuthor
    New Member
    July 6, 2025

    Thank you, Bill. I have performed the steps you have suggested, however, I am still receiving the error. I suspect that the SSD drive has failed.

    Yurisk
    SuperUser
    YuriskAnswer
    SuperUser
    July 4, 2025

    EMMC is the flash drive, and if it was fried I don't think you would get that far in the boot. But it does seem like FGT lost the harddisk (122 Gb) with the reasons may be many - harddisk failure, FGT disk controller (ATA?) failure. Anyway, if you have Forticare - ticket and most probably RMA would be in line. If you don't - worth detaching the aforementioned harddisk, and attaching it somewhere else to know if its him who failed or FGT (not that it would help in either case any further).

      RComb
      RCombAuthor
      New Member
      July 6, 2025

      Thank you and good point. If the EMMC had failed, it would not boot at all. I removed the SSD and re-seated it,  however, I am still receiving the error. I suspect that the SSD drive has failed. I will attempt to replace it and see if that resolves the issue.



      On the 61E data sheet, it mentions the LiteOn 128Gb M.2 2280 SSD. Do you know: is that the only compatible or recommended M.2 SSD for use with the 61E? Or, am I able to use a SanDisk 128G M.2 2280 SSD? Or even a 256G Samsung 2280 M.2?



      Thank you, again
