Forward interfaces directly to ISP modem

  • March 21, 2020
  • 1 reply
  • 3583 views

I'm from Belgium and I'm a client of Telenet. Here does the digirecorder need a direct IP from the ISP itself. This is done by directly connecting the digirecorder with the ISP Modem.



This isn't possible, because the modem has only one port. I use that port to directly connect to my Fortigate firewall. So my question is: is it possible to connect my digirecorder to an interface port of the Fortigate firewall and let it still directly connect with the ISP Modem?

1 reply

sw2090
SuperUser
sw2090
SuperUser
April 2, 2020

I don't think this is possible.



What you could do is make a policy for your recorder and enable dnat (i.e. use ip of destination interface) via the port you modem is connected. Then traffic from your recorder will go into the internet with the external ip of your modem.



localhost
localhost
Visitor III
April 24, 2020

Sure.

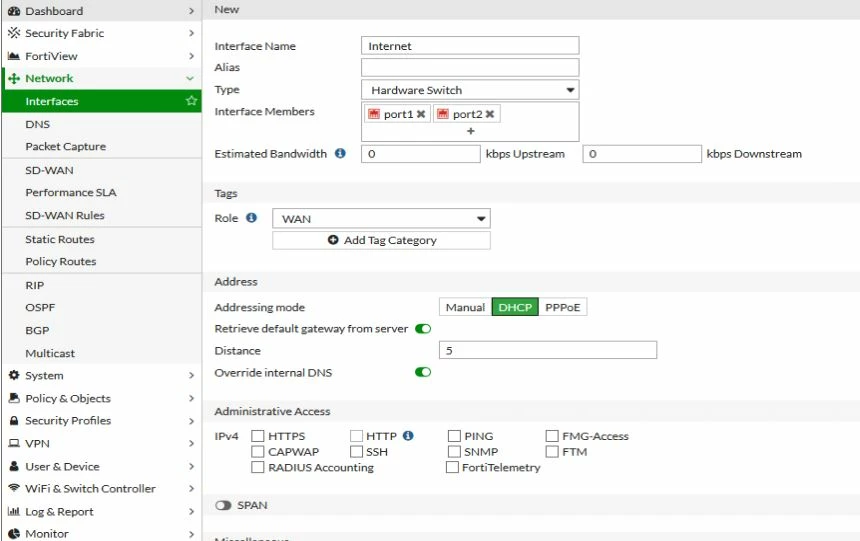

You'll have to create a virtual or hardware switch (depending on the hardware) on your fortigate. And connect the Internet and your Recorder to this 'virtual switch'.

Than both your fortigate and your recorder are connected to your modem.





This would probably mean some decent amount of work to reconfigure everything on your Fortigate. Getting an additional 5-port switch might be an easier option
