Fortiweb Deploy Design

  • May 11, 2026
  • 1 reply
  • 28 views

Hello Community,



I hope you're well



I stay in process to  deploy  Fortiweb 400 F, but I have doubts about whether it is advisable to place the Frontend and Backend interfaces in separate VLANs, and if you recommend this topology for a future deployment of Adoms, or if the design should be rethought.

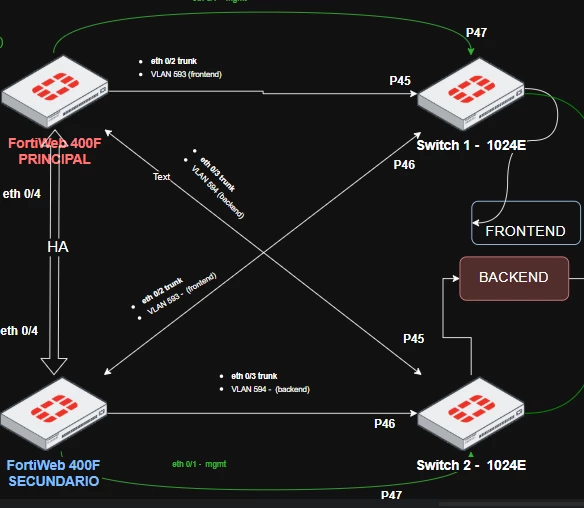

I attach the Topology.

Greetings!!!!





1 reply

Anthony_E
Staff
Anthony_E
Staff
May 12, 2026

Hello Rodrigo,

I hope you are doing well too :)!



You can find here an interesting document:

https://docs.fortinet.com/document/fortiweb/6.4.3/administration-guide/211763/planning-the-network-topology



I hope it is helpful.



Anthony

Best Regards
    AEK
    SuperUser
    AEK
    SuperUser
    May 12, 2026

    Hi Rodrigo

    As described on the doc shared by Anthony you can because FWB is a firewall and as a perimeter device it is correct to connect it to both FE and BE networks.

    And also like any router/firewall, it is also possible to set it up as a one arm firewall.

    So both are correct. But sometimes the first or second option is preferred depending on the global context.

    AEK
