Fortinet lab setup

Forum|Forum|3 years ago
July 7, 2022
2 replies
2855 views

Hi everyone,

I have come here for doubt clearing a simple lab setup. I just want to understand how to configure LACP ( Etherchannel) between Fortinet and cisco switch along with what else configuration should I configure for better service.

In my lab setup, there are around four subnets and Vlans that belong under the LAN zone.

10.1.1.0/24

10.1.2.0/24

10.1.3.0/24

10.1.4.0/24

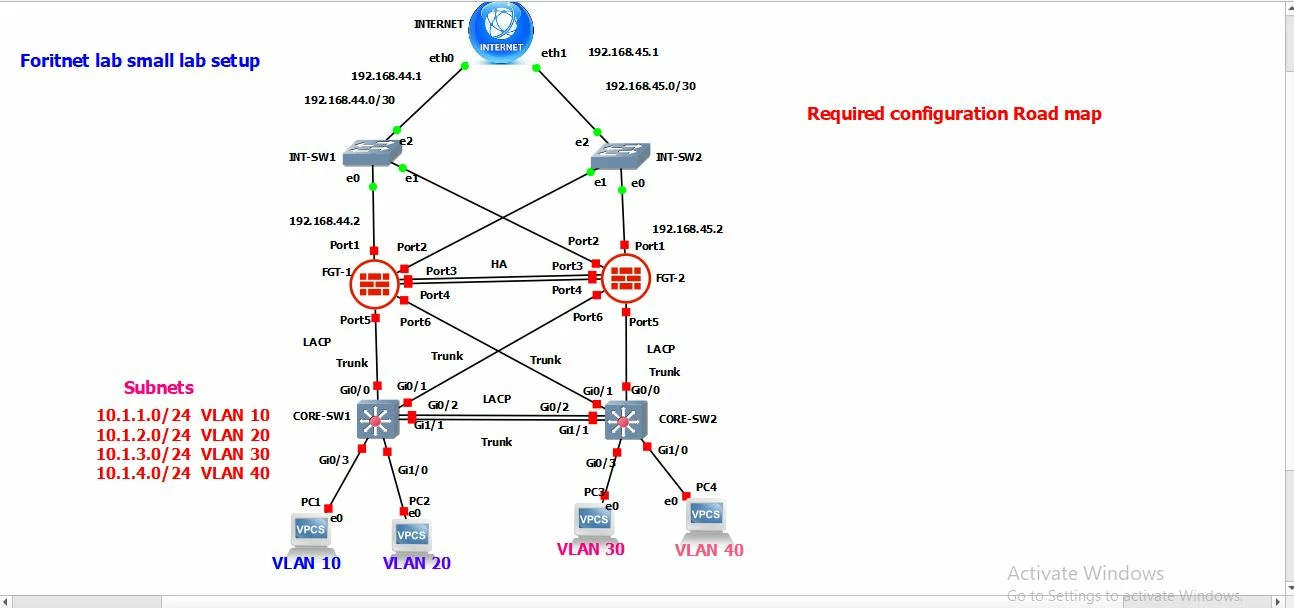

here is the LAB digram-

forinet lab.JPG

Request you to please recommend me how to configure LACP and trunking between the Fortinet FW and cisco switches.

As you can see that there are HA concepts -

Fortinet FW 1 & Fortinet FW2

Core-SW1 and Core-SW2

Thank you

Umesh

FortiGate

jintrah_FTNT

Staff

Hi Umesh,

On FortiGate end, the lacp bundle is bound to each Fortigate device, therefore you must bundle the port G0/0 of core-sw1 and G0/1 of Core-sw2 together and likewise. Please refer Technical Note : FortiGate HA A-P (Active-Passive)... - Fortinet Community for some additional info.

Best regards,

Jin
