Question

Fortigate Same Mac Address

I have 2 firewalls, lan and wan. there is also 1 cisco backbone in between. my problem is this: when I make 802.3ad from 1g 2 fiber ports of the firewall, the connection between 2 firewalls is provided. However, when I do 802.3ad with 10g, there is no connection between the two firewalls. The part I pay attention to is this. When I make 802.3ad in 1g connection, the mac address is different in 2 ports. However, when I do 802.3a with 10g, the virtual mac address on 2 ports is the same and only one device appears in the mac address table of the backbone. what is the reason for this?

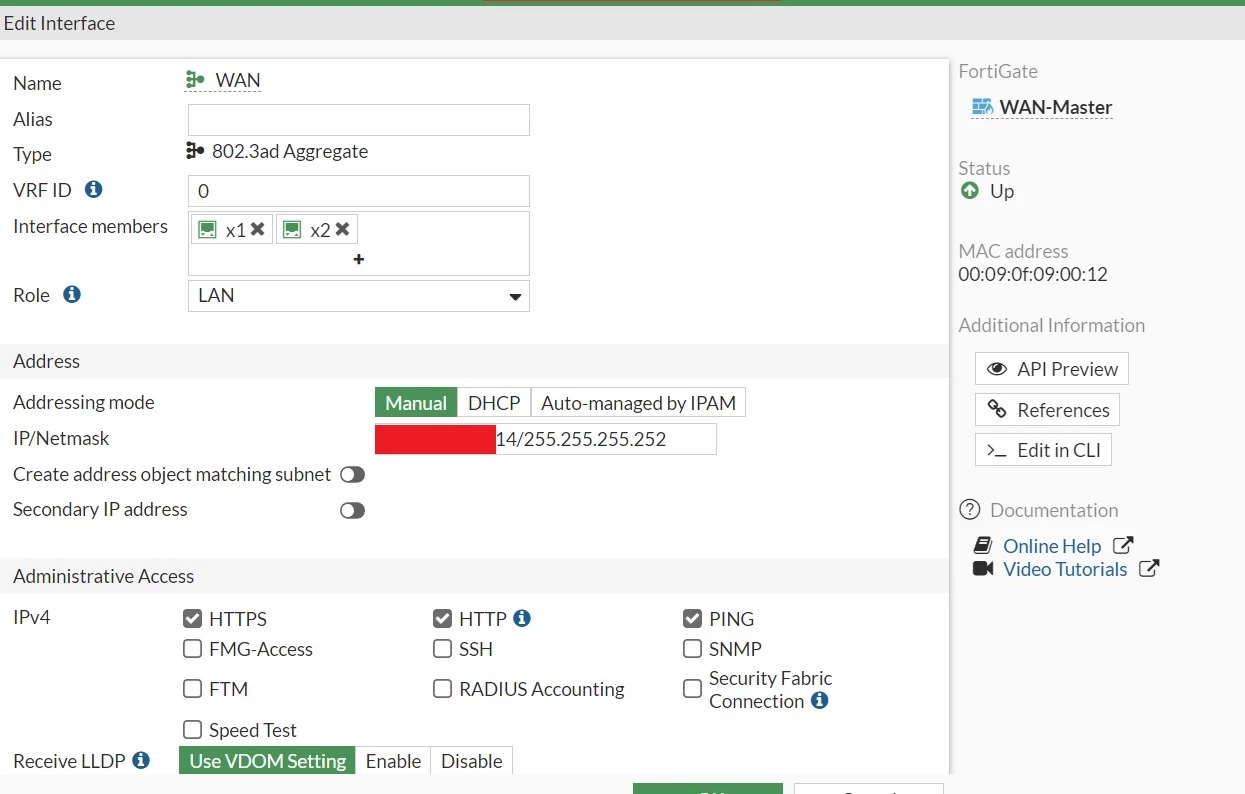

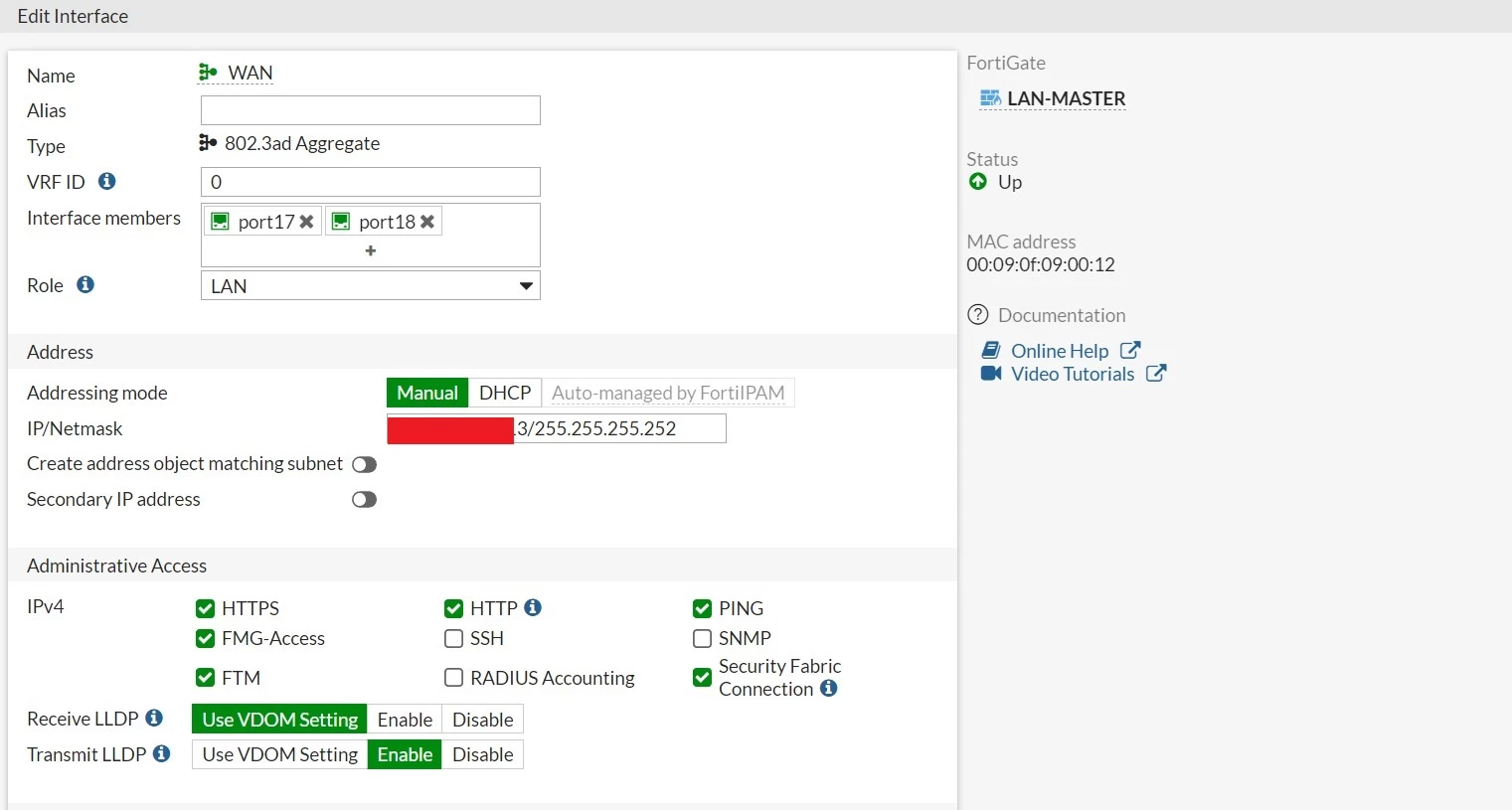

WhatsApp Image 2024-02-06 at 17.55.04.jpegWhatsApp Image 2024-02-06 at 17.55.04 (1).jpeg

5 replies

AEK
SuperUser
SuperUser
Feb 6, 2024 10:37 PM UTC

I don't know why such LACP interface has this kind of MAC, but you should fix it by changing the MAC address with the below command to avoid MAC conflict:



conf sys interface

  edit WAN

    set macaddr xx:xx:xx:xx:xx:xx

  end

Translate
AEK
rcpdkc
rcpdkcAuthor
Explorer II
Feb 7, 2024 4:50 AM UTC

This command does not work

Translate
smaruvala
Staff
Staff
Feb 7, 2024 5:43 AM UTC

Hi,



- Are the LAN and WAN firewalls are part of 2 different HA cluster? The MAC address looks same as the virtual MAC address of the interface as Hex value of 12 is nothing but 18 in integer terms which is your interface in the port channel.

https://community.fortinet.com/t5/FortiGate/Technical-Tip-HA-Cluster-virtual-MAC-addresses/ta-p/194239



Regards,

Shiva

Translate
