fortigate 200D wrong credential

Hello everybody,
i have fortigate 200D, i connect it to Computer with usb cable because i have no connection with lan cable.

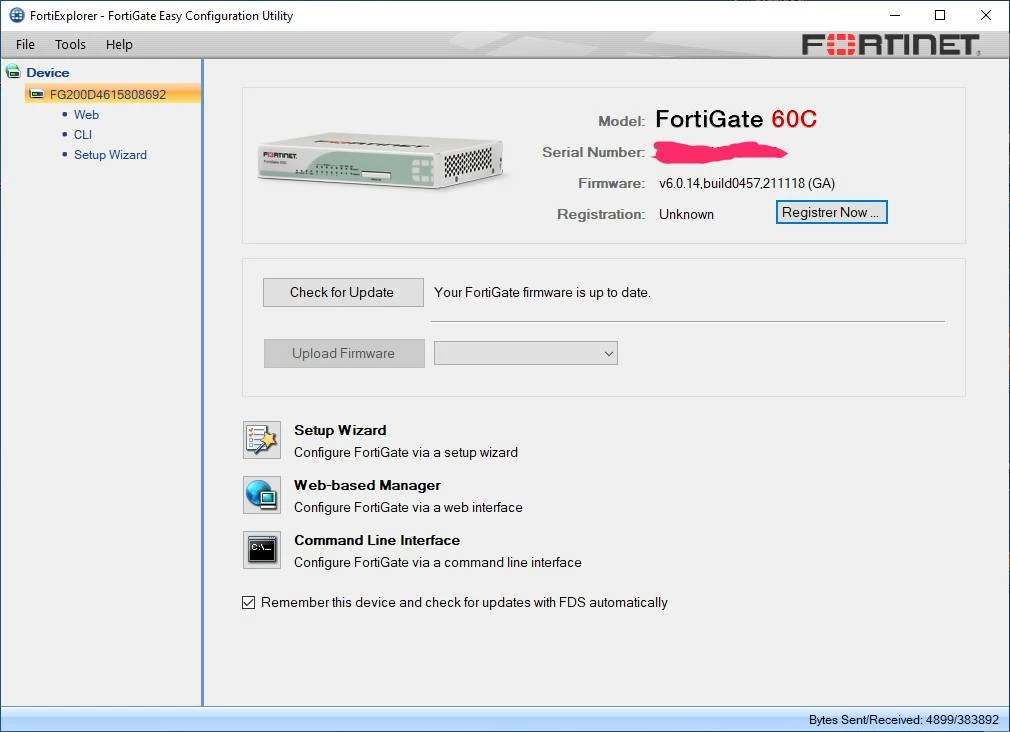

Forti-explorer shows 60C, and i enter username: admin, password is empty, whatever i use web, cli, setup wizard or putty it says wrong credentials!
what should i do?
thank you for your help299607060_1473290426482912_4549935838427334535_n.jpg

4 replies

ede_pfau
SuperUser
SuperUser
Aug 21, 2022 2:56 PM UTC

Why do you state that you don't have a connection via LAN cable? access denied?

Never used the FortiUSB thing, why don't you use a simple serial connection? serial cable with RJ45 (FGT side) and DB9 (notebook), or USB if using a serial-to-USB converter. Start up PuTTY, 9600-8-N-1, and you will get a prompt.

If you now try to log in, and are denied, you can try again as many times as you wish - there is no penalty on failed logins.

If you still cannot log in, reset to factory defaults, and then use 'admin' with no password. For this, you can log in as 'maintainer'. Google or Fortinet KB will give you the details.



Translate
Debbie_FTNT
Staff & Editor
Staff & Editor
Aug 22, 2022 8:56 AM UTC

Hey arabisk,

the FortiExplorer tool has been discontinued for a few years now, there may be compatibility issues that are interfering, for example (that could also explain why a FortiGate 200D is identified as a 60C model).

As Ede mentioned, I would suggest connecting on the console port, and if you can't login from there for whatever reason, go through 'maintainer' procedure and factory reset.

Translate
nithincs
Staff & Editor
Staff & Editor
Aug 23, 2022 4:13 AM UTC

Hi,



Try to do factory reset and you will be able to access the device with 192.168.1.99 and username as admin with no password.

Translate
anikolov
Staff
Staff
Aug 24, 2022 2:33 PM UTC

Hello @arabisk,



Please don't do any of these drastic measures above before trying this KB below: https://community.fortinet.com/t5/FortiGate/Technical-Tip-Reset-a-lost-admin-password-on-a-FortiGate-unit/ta-p/194937



Please let me know if it works.



Regards,

Aleksandar

Translate
