Question

FortiADC Form Based authentication

  • December 9, 2021
  • 1 reply
  • 3948 views

Hi all,

I want to configure a form based auhtentication for MS Exchange OWA. Is it possibile in FortiADC?

If it is not possibile, where is the Fortinet appliance that permit this function? FortiWeb?



Thanks

ac1

#FortiADC #FormBased

1 reply

ddsouza_FTNT
Staff
ddsouza_FTNT
Staff
December 10, 2021

Yes, you can configure FortiADC to authenticate OWA users by using the client authentication method as the HTML Form.

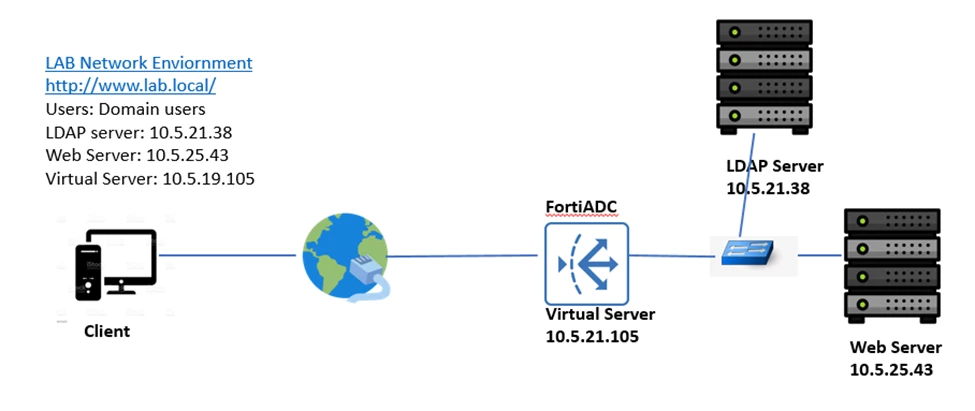

I have shared a sample configuration.  In this example, I am using the LAB  Network Environment mentioned below. Unfortunately, I don't have an Exchange server in the lab, but the configuration steps are similar.

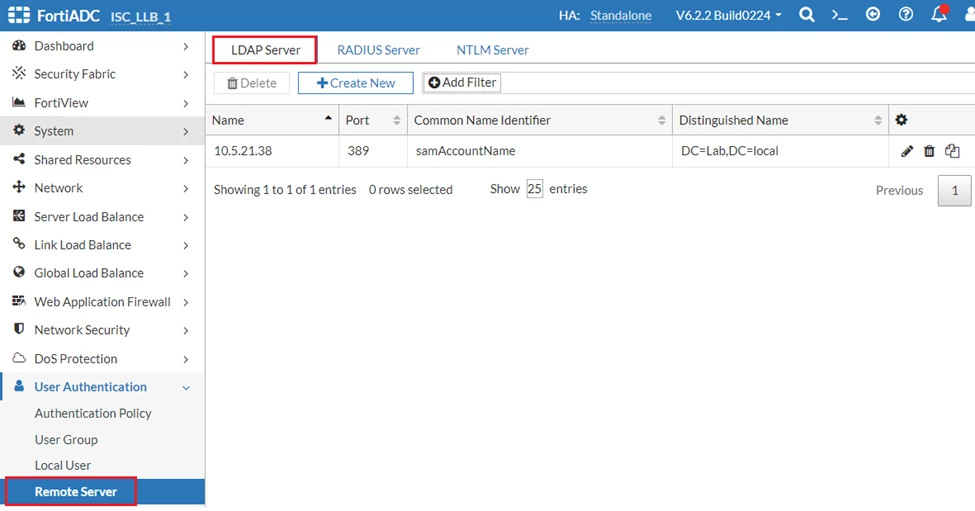

Add an LDAP server Entry

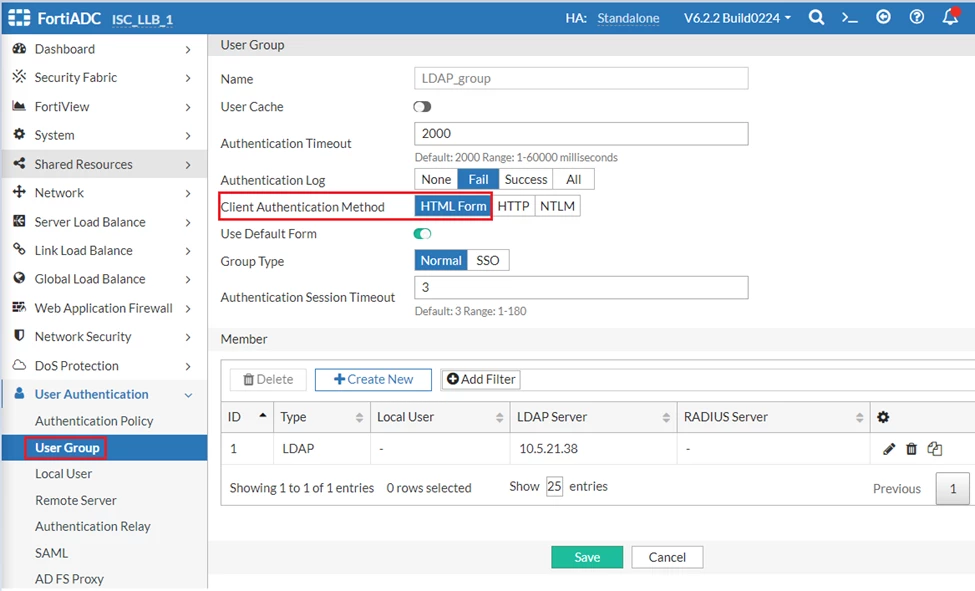

Add a User Group: Select the Client Authentication Method as ‘HTML form’ and Member as the LDAP server entry (added in the previous step)

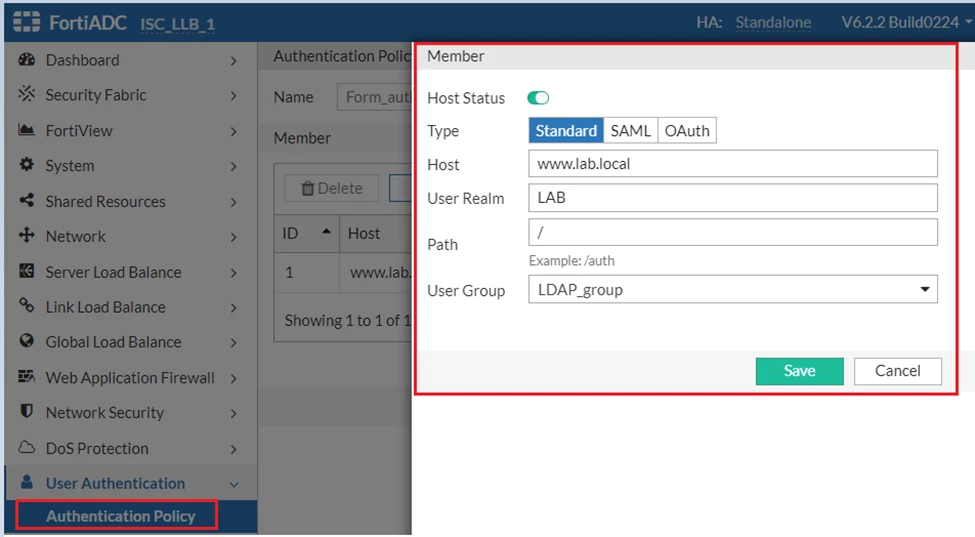

Create an Authentication Policy and select the User Group added in the previous step.

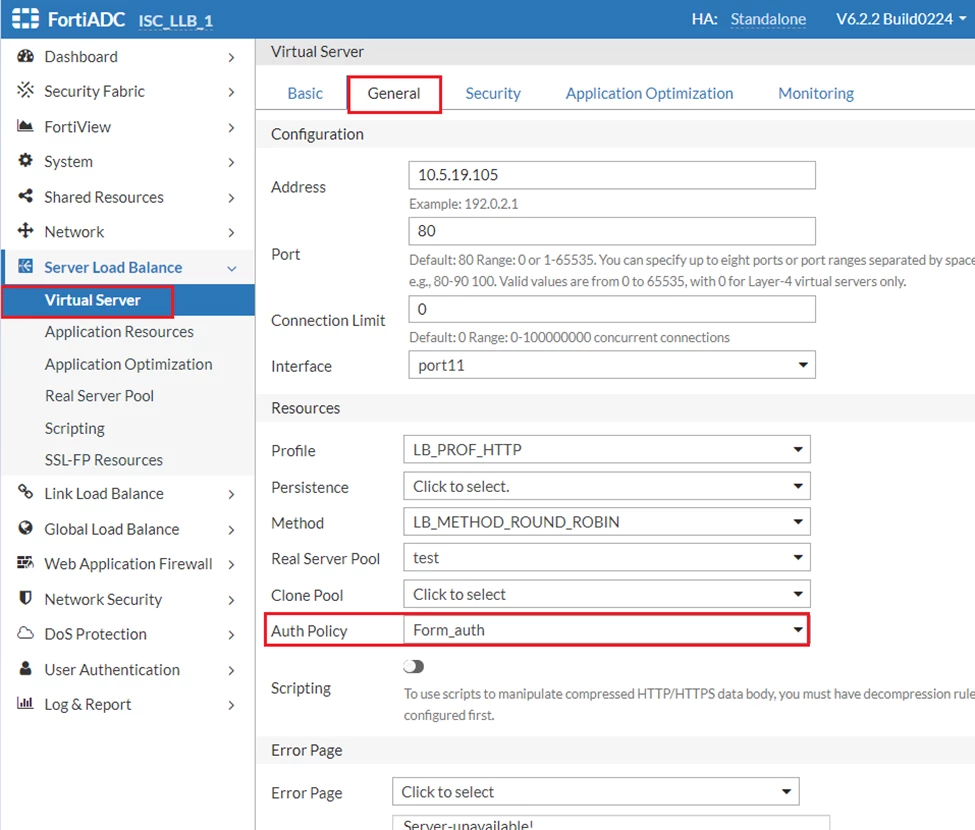

Call the Authentication Policy in the Virtual Server.

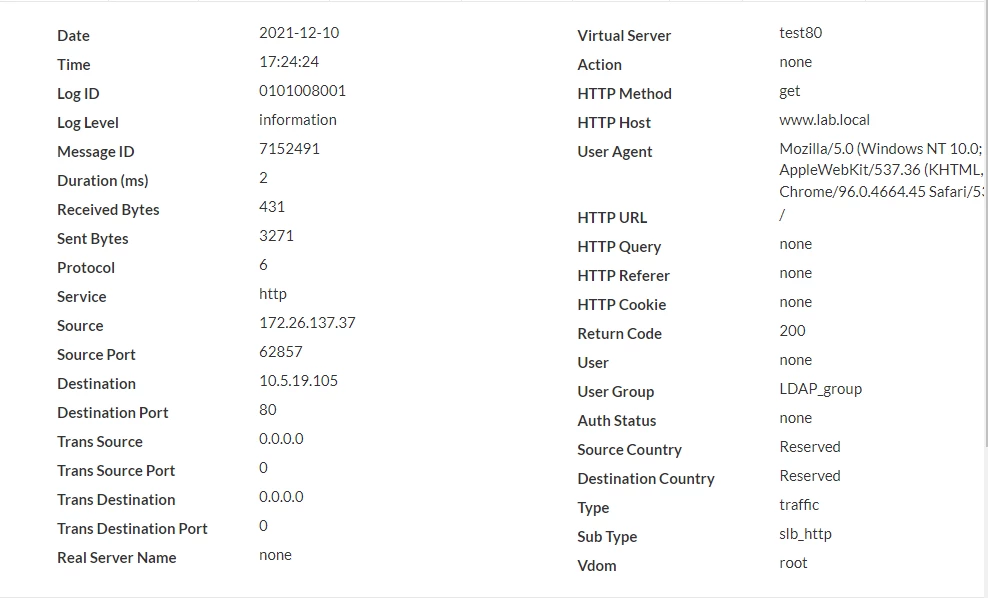

Test Result

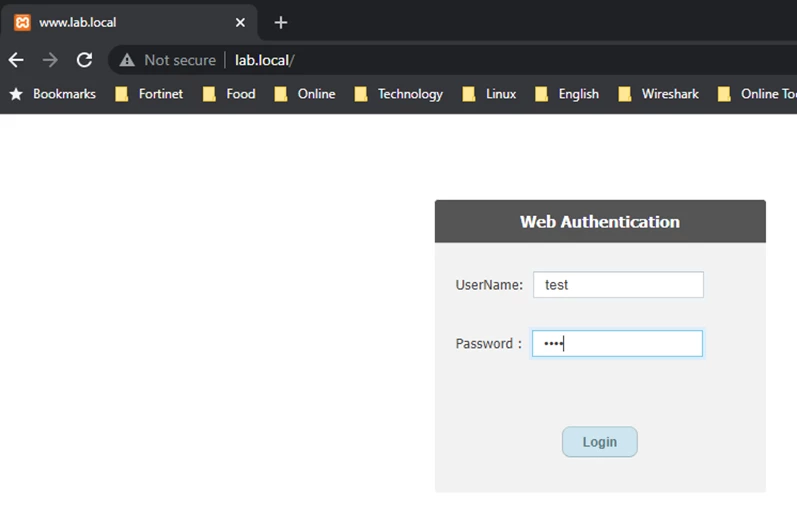

Access the website. FADC presents the HTML form to the client.

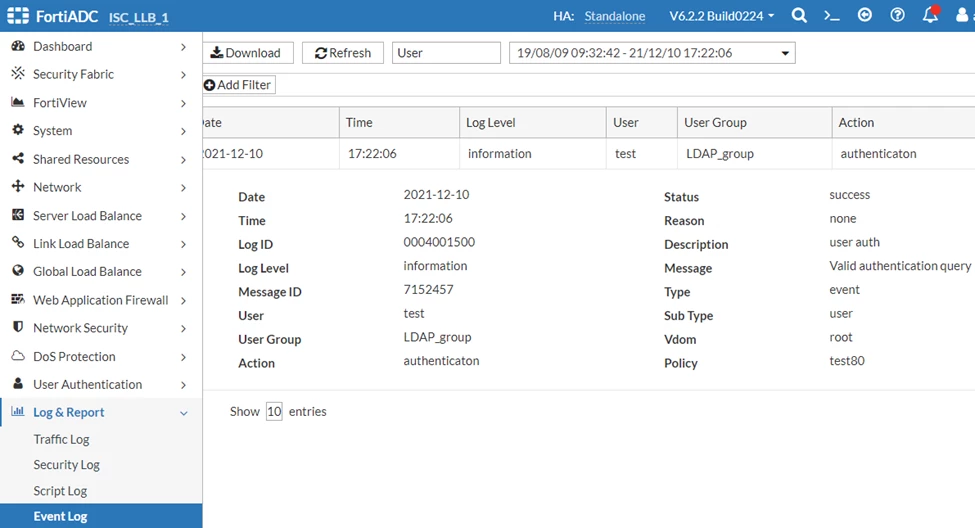

If the user credentials are correct, fortiADC forward the request to the webserver.




    ac1
    ac1Author
    Explorer III
    December 13, 2021

    Hi Denzil,

    The function HTML form forward the kerberos auhtentication to the Exchange?



    Thanks

    ddsouza_FTNT
    Staff
    ddsouza_FTNT
    Staff
    December 14, 2021

    Hi,

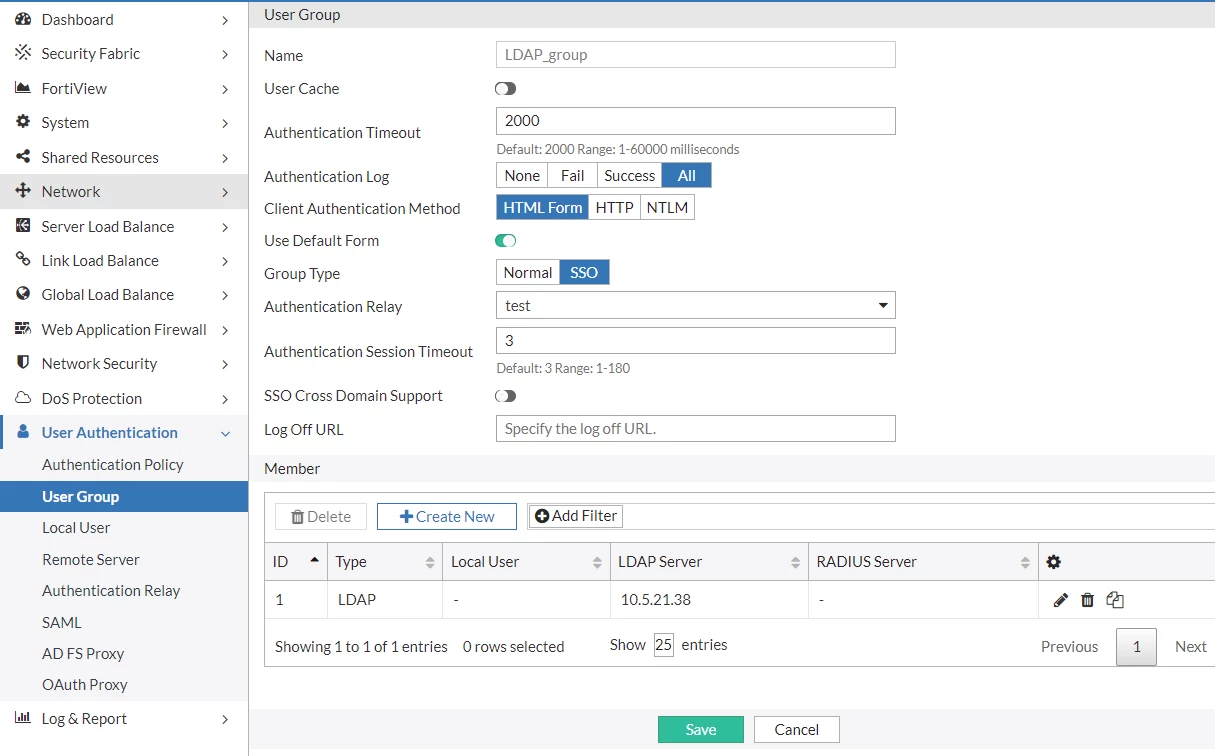

    You can configure Authentication Relay (User Authentication>Authentication Relay) with Delegation Type set to 'Kerberos" and then call the Authentication Relay in the User Authentication>User Group (used in the Authentication Policy)
