FGT - Optimize Memory consumption

hello,

FGT 60F, 7.0.12

I have issue with conserve mode when my fortigate take updates (AV, IPS def etc). Someone had also this kind of issue ??

I read techincal tips Technical Tip: Steps on how to optimize Memory consumption  and I have question
How to perform STEP 8 ?? (disable widgets )



Thanks



6 replies

ozkanaltas
Valued Contributor III
Dec 29, 2023 8:44 AM UTC

Hello @tedew ,

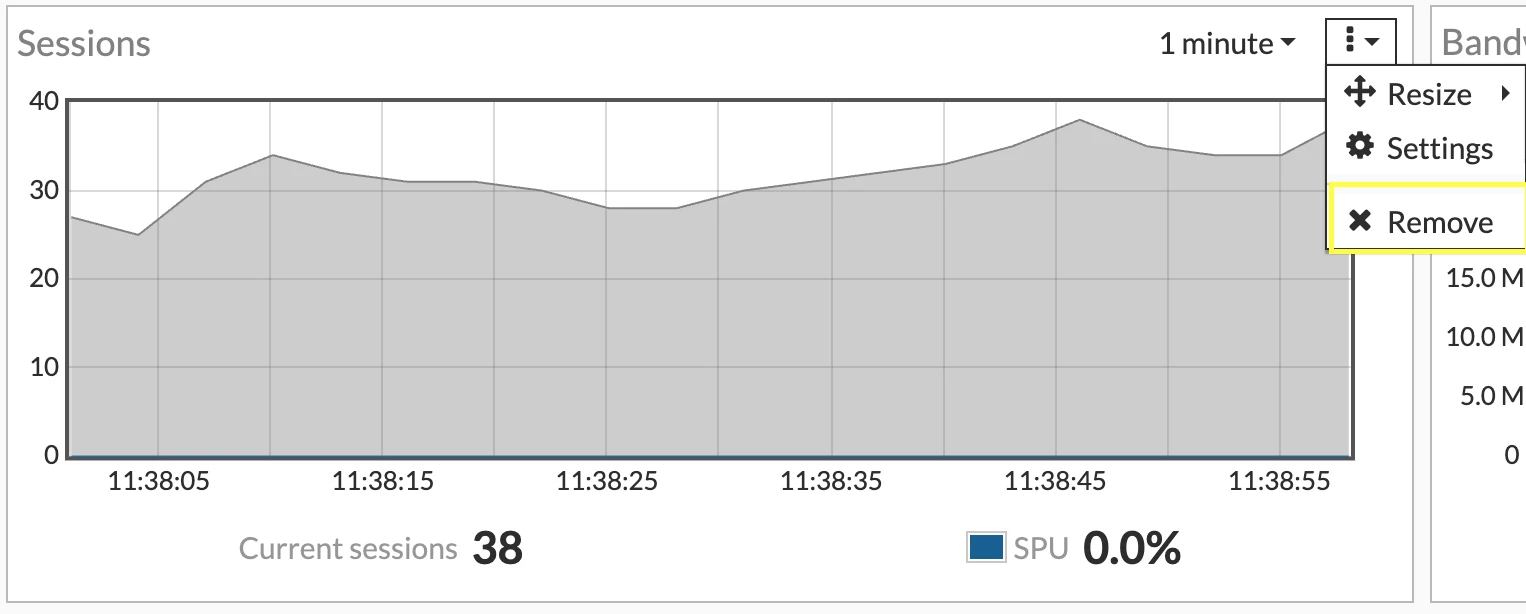

You can easily disable widgets on your dashboard by clicking 3 dots right side of the widget and then clicking remove. If you have multiple admin users. You can say this "Can you remove the widget on your dashboard? " or you can edit on cli, another admin user dashboard configuration.




Translate
tedew
tedewAuthor
New Member
Dec 29, 2023 9:17 AM UTC

hello,

@ozkanaltas

Even when nobody is logged to the firewall should we remove these widgets ??



Thanks,

Translate
ozkanaltas
Valued Contributor III
Dec 29, 2023 9:23 AM UTC

Hello @tedew ,



I think yes. Because these widgets collect data even if you are not logged in. If it doesn't act like this, you can't see any data related to the previous 24 hours. You can see just live data.

Translate
BillH_FTNT
Staff
Staff
Dec 30, 2023 8:10 AM UTC

Hi @tedew

When your device gets into conserve mode, you should call TAC. They will help you find the root cause. Then, to find a suitable solution. Optimizing parameters is one of the methods, but there are still many things to consider.

Bill

Translate
mpeddalla
Staff
Staff
Dec 30, 2023 1:24 PM UTC

Hello @tedew  ,



Thank you for contacting the Fortinet Forum portal.

-As suggested by my colleague it is better to contact support when the device triggers conserve mode so that they can document if it matches with any known issues they would suggest a precise workaround or verify the firmware version which can fix the issue.

-If fortiguard updates for AV, IPS are an issue please refer below article for suggested steps:

https://community.fortinet.com/t5/FortiGate/Technical-Tip-FortiGate-is-entering-into-Conserve-Mode-during/ta-p/287053#:~:text=A%20FortiGuard%20update%20process%20may,and%20subsequent%20processing%20during%20updates.





Best regards,

Manasa.



If you feel the above steps helped to resolve the issue mark the reply as solved so that other customers can get it easily while searching on similar scenarios.

Translate
akanibek
Staff
Staff
Dec 30, 2023 4:24 PM UTC

Have a look to the security profiles on the firewall policies. Not all policies need all security profiles on it.
