FAZ VM64 - CPU Allocation

Forum|Forum|2 years ago
March 20, 2024
7 replies
3771 views

Hi,

On Vmware ESXi platform is present a FAZ with version 7.2.4

Premise, on the vcenter where I am operating the cpu and ram resources are available I have performed similar operations on other Fortinet vm's (Fortigate, ect)

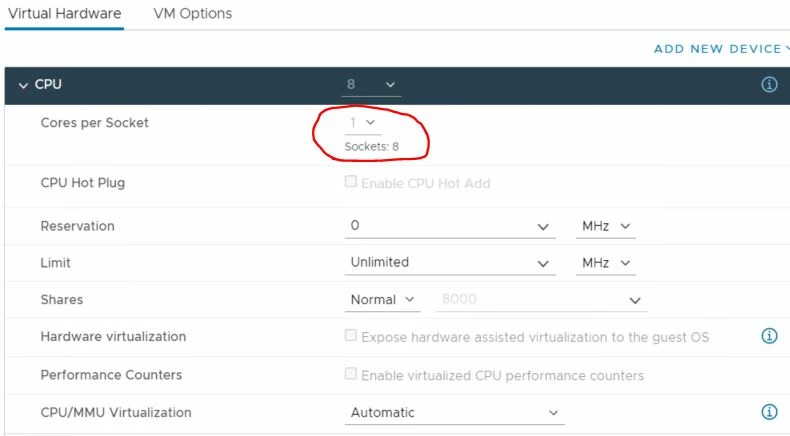

Under edit settings -> cpu

This is the situation

Has anyone had a similar problem is it possible to have to have 2 cores each with 8 sockets ?

I don't think it's a fortinet license issue or the vm image installed on the vm.

I thank you for your attention and look forward to your opinion.

Best Regards

FortiAnalyzer

Best answer by Mandalorian

Hi,

I inform you that we have found the cause of what was reported.

This limitation is due to the hardware version of the vm hosting the FAZ.

Updates will follow, in the meantime thank you for your support

Best Regards

ozkanaltas

Valued Contributor III

Hello @Mandalorian ,

FortiAnalyzer license doesn't have any restrictions about resources. If you have resources you can give them.

However, FortiGate has different license types. You need to configure how many resources your license includes.

Also, you can review this document about the minimum requirements for FortiAnalyzer.

https://docs.fortinet.com/document/fortianalyzer-private-cloud/7.4.0/vmware-esxi-administration-guide/583600/minimum-system-requirements

MandalorianAuthor

Explorer III

Hi @ozkanaltas
Thanks for reply, if you tell me that the faz vm has no licensing restrictions in this respect the only thing to think about is the image file installed on the vm.

"This is the way"

ozkanaltas

Valued Contributor III

Hi @Mandalorian ,

Yes you right.

MandalorianAuthorAnswer

Explorer III

Hi,

I inform you that we have found the cause of what was reported.

This limitation is due to the hardware version of the vm hosting the FAZ.

Updates will follow, in the meantime thank you for your support

Best Regards

"This is the way"

MandalorianAuthor

Explorer III

Hi,
I am just writing to let you know that after hardware upgrade of the vm hosting FAZ we were able to assign 16 cpu to the machine.
As a precautionary measure, a snapshot of the vm and backup of the FAZ config had been done.
This activity in our case did not result in any impact to the FAZ.

Best Regards

"This is the way"
