Hi

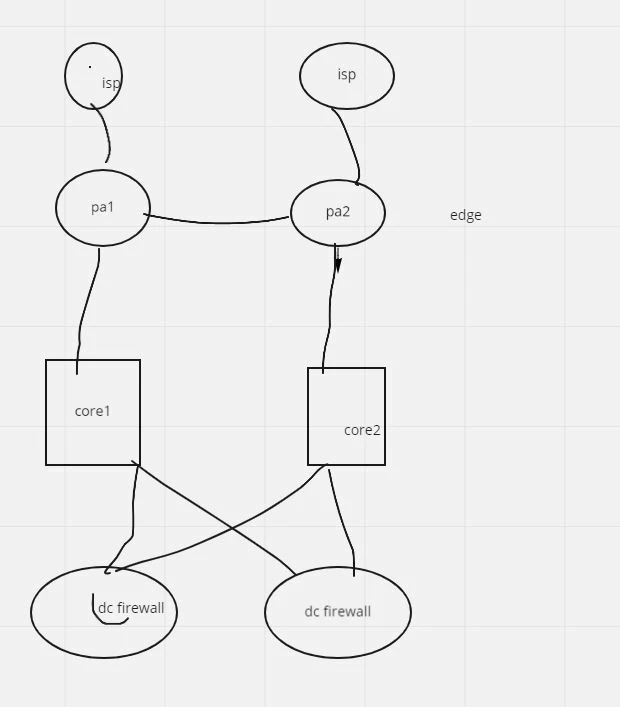

I have the below topology ,







Where should I create DMZ  zone  in the above topolgy , on edge firewall or dc firewall



Thanks pa dmz.JPG

3 replies

Toshi_Esumi
SuperUser
Toshi_Esumi
SuperUser
March 25, 2022

That would depend on where all internal devices are connected to in the diagram, and the purpose/role of "dc firewall" in addition to those PAs(PANs?). DMZ should be located on the border between "outside" and "inside", although nowadays you can have many different ways to place it physically wherever you choose, and set up networks to place it on the border logically.



Toshi

    sims
    simsAuthor
    Explorer II
    March 26, 2022

    Hi @Toshi_Esumi

    nd the purpose/role of "dc firewall" in addition to those PAs(PANs?)

    it is pal alto  and the dc firewall is  FortiGate

    The role of the dc firewall is to all the server VLANs svi are created on the dc firewall.

    If I want to create a DMZ on the dc firewall , do I need a dmz zone on the edge firewall too ?

    Can you please give me a typical dmz design for better understanding ?



    Thanks





    Toshi_Esumi
    SuperUser
    Toshi_Esumi
    SuperUser
    March 26, 2022

    Your network design is not typical. A typical network doesn't have both PANs and FGTs. You're still not giving us enough information to think where to place those servers in DMZ to let outside and inside access to them. Handling VLANs would be best if you let the Core SWs do it. You/your customer must have reasons to spend double for both PAN and FGT.



    But to let outside parties access the servers in DMZ, ether the servers need to have public IPs or a FW that has public IPs has DNATs(VIPs for FGT) mapped to local IPs on the servers. Depending on which FW, either PAN or FGT, is handling public IPs, I would let THAT FW to have the DMZ interface, then the other one would just routes DMZ accessing traffic to the FW.

      sims
      simsAuthor
      Explorer II
      March 26, 2022

      Hi @Toshi_Esumi



      Thanks for the clarification, I have couple of  web servers   and vdi desktop machines  , these servers need to be accessed local lan and  from internet

      the web servers need to communicate with database servers which in in dc . and  the  web  pages has authentication, the authentication must be done  against local  active directory

      Hope I could clarify

      Thanks

      Toshi_Esumi
      SuperUser
      Toshi_Esumi
      SuperUser
      March 26, 2022

      Sound like only PANs are handling public side and PANs communication to FGTs seems to be over private subnets. Then I would set your DMZ (you probably have it already as an interface) on PANs and place those servers facing both sides in the zone/on the interface. Then the servers' internal connection to devices like the DB server is just routing through the FGTs.



      Toshi

      sims
      simsAuthor
      Explorer II
      May 9, 2022
      @Toshi_Esumi wrote:

      Sound like only PANs are handling public side and PANs communication to FGTs seems to be over private subnets. Then I would set your DMZ (you probably have it already as an interface) on PANs and place those servers facing both sides in the zone/on the interface. Then the servers' internal connection to devices like the DB server is just routing through the FGTs.







      Both sides in the zone /on the interface , what does it mean ? . Can you Please elaborate



      Toshi



      Debbie_FTNT
      Staff & Editor
      Debbie_FTNT
      Staff & Editor
      May 9, 2022

      I'm pretty sure Toshi meant servers that deal with public and internal traffic (facing public side and internal side).

      -> those servers (accessible from outside) usually go into DMZ

      -> if the servers are connected to PAN firewalls, that's probably where you want to create and manage a DMZ
