Dear Team,

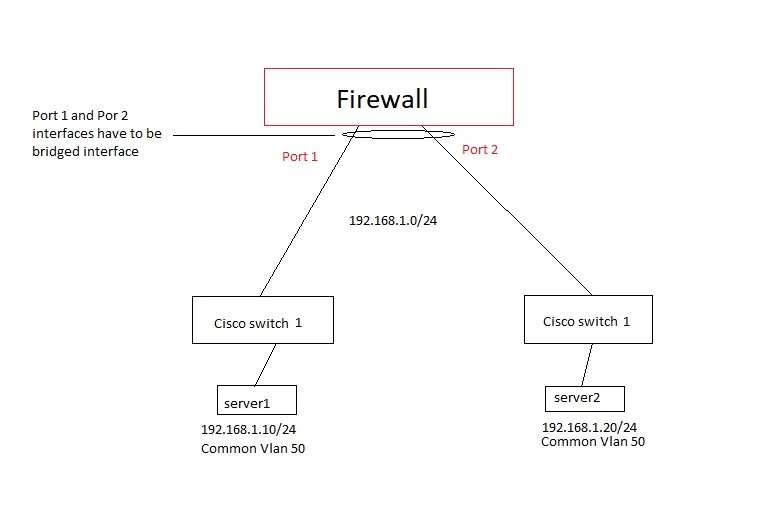

I have requirement like port 1 and port 2 have to be bridge interface and there is only same Vlan/subnet which is connected to different switch. Please refer the attached snapshot and provide solution, how can I achieve in fortigate.

bridge interface.jpg

Thank you in advanced

FortiGate

sw2090

SuperUser

maybe the easiest way would be to create a switch on the FGT that has Port 1 and 2 as members.

Then only the swithch itself has to have an ip in that subnet.

Traffic between the cisco switch will then remain subnet internal and traffic that goes outside the subnet will need some policy (and maybe routing) on the FGT.
