BGP MULTPATH

  • January 13, 2025
  • 2 replies
  • 1337 views

Hello team how to make the two interface to be best path i want each interface to carry different traffic but it canot work beacause the other interface is not best path

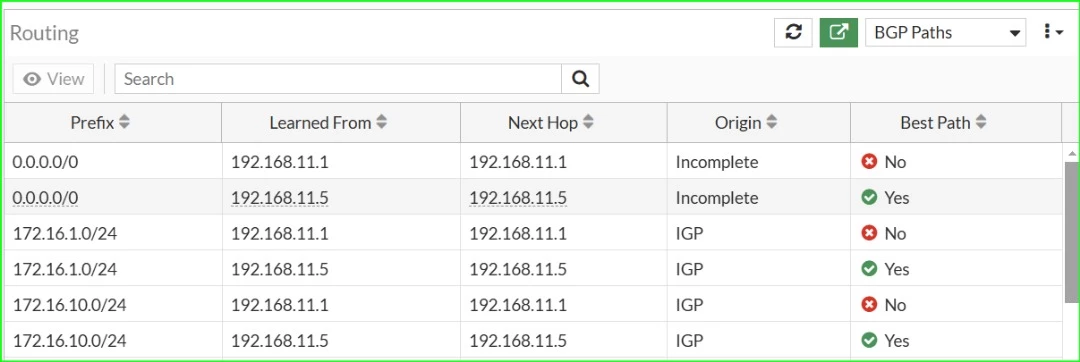

WhatsApp Image 2025-01-13 at 14.55.09_8410631c.jpg

Best answer by funkylicious

Hi,

To enable bgp multipath you would need to issue the command stated here, https://community.fortinet.com/t5/FortiGate/Technical-Tip-ECMP-routes-for-recursive-BGP-next-hop-resolution/ta-p/191461



config router bgp
set ibgp-multipath enable
end

2 replies

funkylicious
SuperUser
funkyliciousAnswer
SuperUser
January 13, 2025

Hi,

To enable bgp multipath you would need to issue the command stated here, https://community.fortinet.com/t5/FortiGate/Technical-Tip-ECMP-routes-for-recursive-BGP-next-hop-resolution/ta-p/191461



config router bgp
set ibgp-multipath enable
end

"jack of all trades, master of none"
    nalexiou
    Staff & Editor
    nalexiou
    Staff & Editor
    January 13, 2025

    Hi,



    By default multipath is disabled, you can refer to the below kb on how to enable multipath:

    https://community.fortinet.com/t5/FortiGate/Technical-Tip-Usage-of-BGP-multipath-and-description-of-the-BGP/ta-p/195919

    After enabling multipath make sure that the attributes are the same so both routes will be installed in the routing table.
