barrycuda72
barrycuda72
New Member
September 27, 2019
Question

Ap-error

  • September 27, 2019
  • 6 replies
  • 11340 views

I keep seeing these random errors in the logs from numerous ap's but I have yet to find any good information as to what they mean or if I should worry.  Seems like I will see a bunch all at once then everything settles down for a while

Log Description:  Physical AP error

Log ID: 0104043613

Reason:  80211 WLAN DEL error or 80211 WLAN ADD error



They are FAP221-E .  Firmware FP221E-v6.0-build0044

Forigate 300E:  Firmware 6.0.2 build0163

    6 replies

    eped
    eped
    New Member
    November 13, 2020

    I'm getting these "80211 WLAN ADD" errors on PU431F FortiAPs too. Have you figured out what they mean?

    nlict
    nlict
    New Member
    December 8, 2020

    We also have this issue on many PU431F FortiAP also. Anyone already found the issue?



    Fortigate 100E firmware: 6.4.3 build1778

    FortiAP firmware: PU431F-v6.0-build0080





    Seleblanc
    Seleblanc
    Visitor III
    February 8, 2022

    We are also getting both 80211 WLAN ADD error and 80211 WLAN DEL error



    FortiGate 100F and FAPC24JE-default
    FortiGate 61F and FAPC24JE-default
    usednet
    usednet
    Explorer
    March 28, 2023

    The same problem with FortiAP 221E (7.2.2)



    guilhermehenrique
    guilhermehenrique
    Explorer
    April 18, 2024

    Have anyone discover the solution to the fail of FortiAP on deleting WLAN Interface?

    Physical AP error on deleting WLAN Interface/ AP fail to delete WLAN Interface



    logdesc="Physical AP error" action="ap-error" reason="80211 WLAN DEL error" msg="Error happened on AP13."
    logdesc="Physical AP error" action="ap-error" reason="80211 WLAN DEL error" msg="Error happened on AP13."
    logdesc="Physical AP error" action="ap-error" reason="80211 WLAN DEL error" msg="Error happened on AP13."





    logdesc="Physical AP join" reason="N/A" msg="AP AP13 joined :D"
    logdesc="Physical AP leave" action="ap-leave" reason="AP reset" msg="AP AP13 left."
    logdesc="Physical AP reset" action="ap-reset" reason="N/A" msg="AP AP13 was reset."
    logdesc="Physical AP fail" action="ap-fail" reason="ECHO REQ is missing" msg="Failure happened on AP13."

    I'm using, at 2024 APRIL, a Cluster of 2 FG100F and FortiAP231F(s) with firmware v7.4.3 and v7.4.2 respectivaly.

    The ERROR on FortiAPs happen in the activation of the Passive FortiGate, with the Principal FortiGate, the FortiAPs works.

    Best Regards,
    Guilherme Henrique
      DavidArchambeau
      DavidArchambeau
      New Member
      September 26, 2024

      Hi,



      Did you have found a solution or an explanation to this ?

      I just upgraded to the FortiOS 7.4.5, and FortiAP 7.4.3 and now receive the same message.



      Downgrade the fortiap to 7.2.9 didn't resolve the problem.



      David



      heng
      Staff
      heng
      Staff
      February 6, 2025

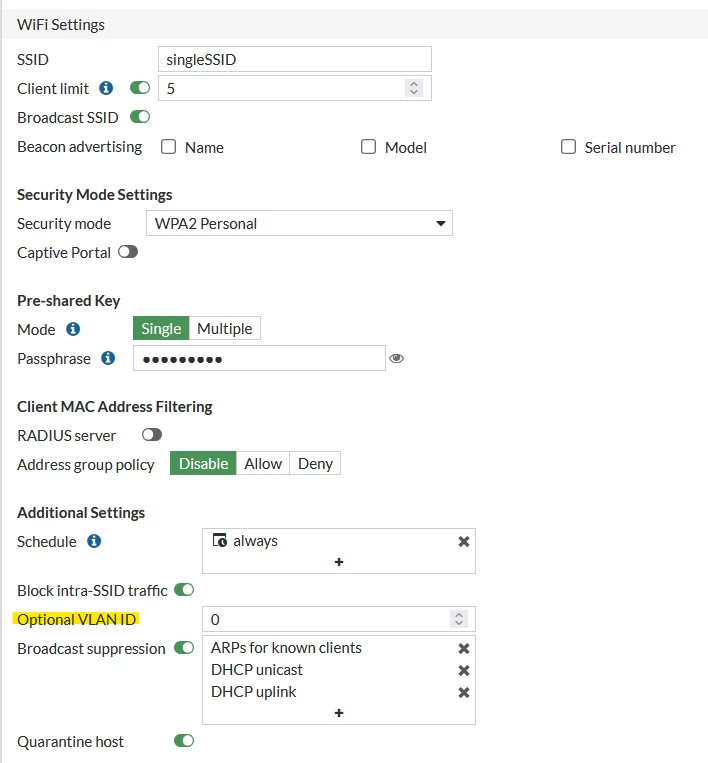

       You can try double check that the optional VLAN ID under the SSID is not set if you are not required.
