Technical Tip: FortiGate secure-explicit-proxy modes behavior

A secure-web-proxy option is available starting 7.4.0: New features or enhancements (ID - 829476).

This article explains the behavior of FortiGate while different options are adjusted. As per the description, there are three options to set up:

config web-proxy explicit

    set secure-web-proxy ?

disable    Disable secure webproxy.

enable     Enable secure webproxy access.

secure     Require secure webproxy access.

Meanings:

1. disable: HTTPS proxy connections between the client and the FortiGate proxy are disabled. All proxy traffic uses the HTTP protocol only.
2. enable: FortiGate supports both HTTP and HTTPS proxy connections, allowing clients to establish either type of connection with the proxy server.
3. secure: FortiGate allows only HTTPS connections between the client and the proxy server. HTTP connections are not permitted.

There are outputs for two different modes: secure and enabled only.

There are several browsers (for instance, Edge (some versions), and Firefox Mozilla) using an ‘HTTP CONNECT' to establish a proxy connection, which could be rejected by FortiGate configured with the ‘secure’ mode.

Test 1. FortiGate's explicit-proxy settings:

config web-proxy explicit

    set status enable

    set secure-web-proxy secure    <---

    set http-incoming-port 8080

    set https-incoming-port 8081

    set secure-web-proxy-cert "mu.fgt-nonCA"

end

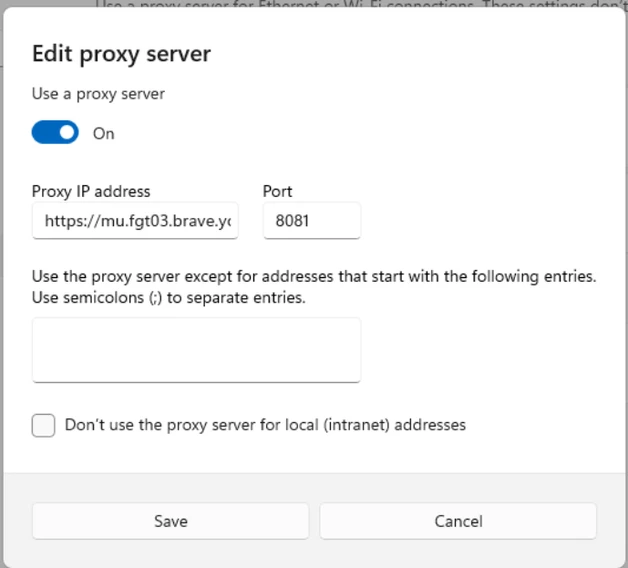

Proxy client system settings:

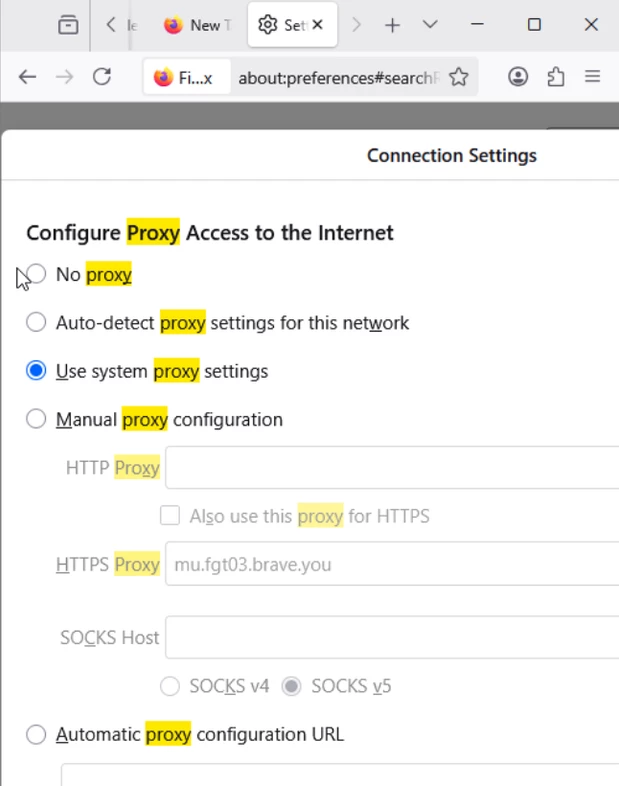

Firefox Mozilla settings on the same host:

Results:

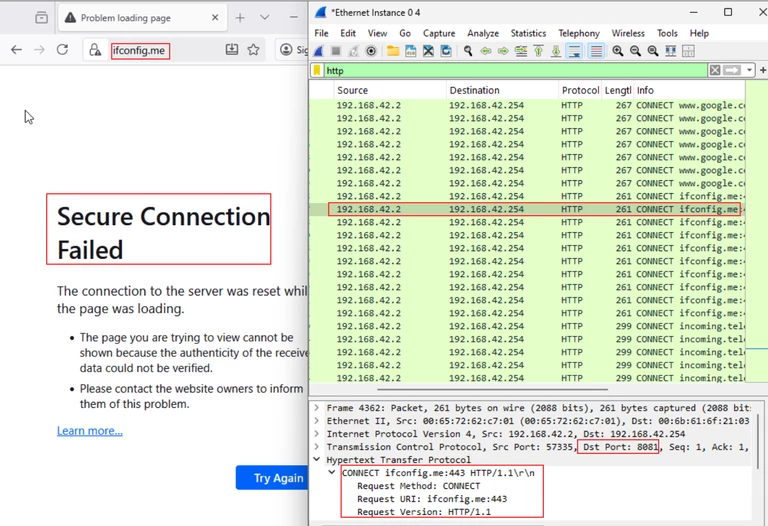

Client tried to connect to a 'https://www.ifconfig.me'. As per Wireshark outputs captured in the proxy client, Mozilla tried to establish a proxy connection with the 'HTTP CONNECT' message:

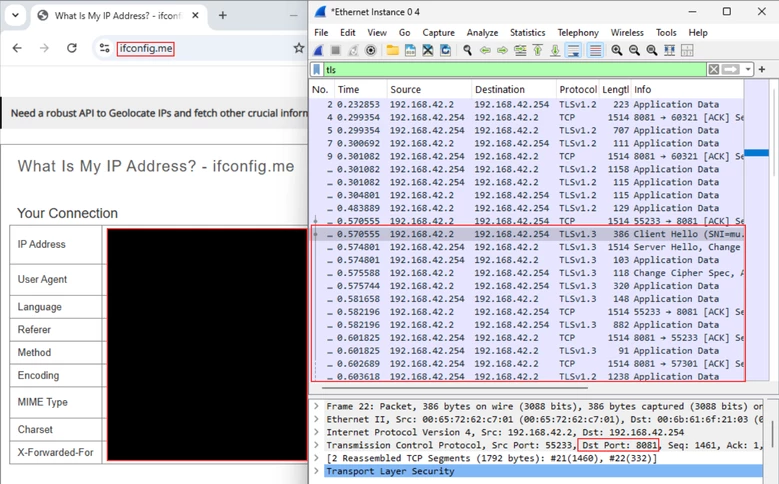

Outputs while using Chrome browser:

Test 2. Behavior of Firefox Mozilla when the 'secure-proxy-mode enable' is applied.

config web-proxy explicit

    set status enable

    set secure-web-proxy enable

    set http-incoming-port 8080

    set https-incoming-port 8081

    set secure-web-proxy-cert "mu.fgt-nonCA"

end

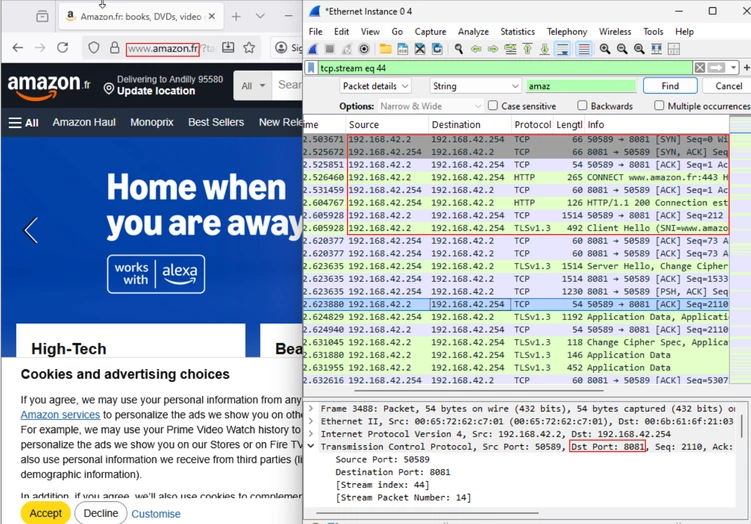

Firefox Mozilla outputs while connecting to 'amazon.fr':
