Technical Tip: Error on console output: 'NP6XLITE: Error:'

Description

This article describes a possible error that may occur during the boot-up process.

Scope

FortiGate (NP6, NP6lite, & NP6XLite models).

Solution

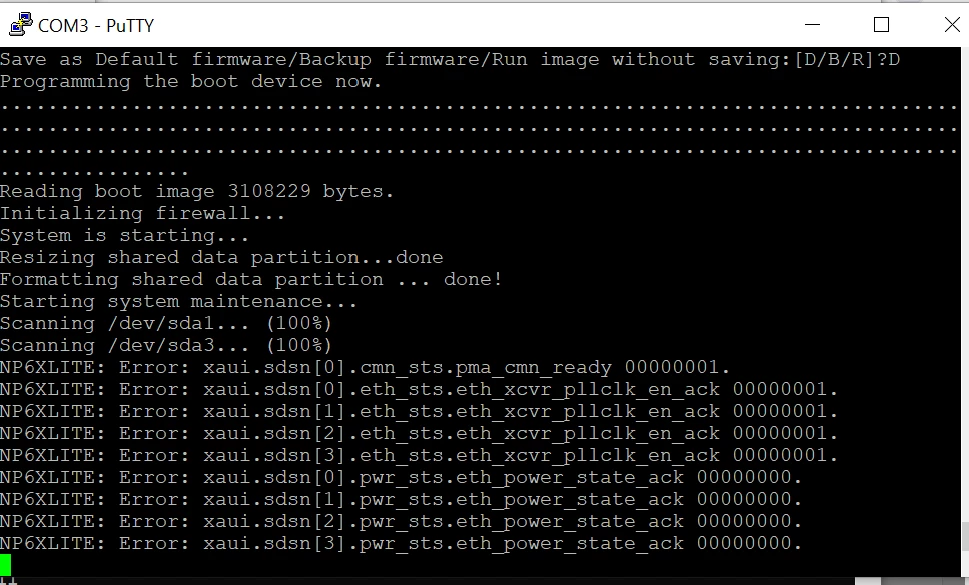

This error usually appears in the console output when the image is loaded to boot up after a manual or automatic reboot.

Restarting system.

FortiGate-101F (02:28-02.13.2020)
Ver:05000020
Serial number: FG101FTK20007904
CPU: 1400MHz
Total RAM: 4 GB
Initializing boot device...
Initializing MAC... nplite#0
Please wait for OS to boot, or press any key to display configuration menu......

Booting OS...
Initializing firewall...

System is starting...
NP6XLITE: Error: xaui.sdsn[0].cmn_sts.pma_cmn_ready 00000001.
NP6XLITE: Error: xaui.sdsn[0].eth_sts.eth_xcvr_pllclk_en_ack 00000001.
NP6XLITE: Error: xaui.sdsn[1].eth_sts.eth_xcvr_pllclk_en_ack 00000001.
NP6XLITE: Error: xaui.sdsn[2].eth_sts.eth_xcvr_pllclk_en_ack 00000001.
NP6XLITE: Error: xaui.sdsn[3].eth_sts.eth_xcvr_pllclk_en_ack 00000001.
NP6XLITE: Error: xaui.sdsn[0].pwr_sts.eth_power_state_ack 00000000.
NP6XLITE: Error: xaui.sdsn[1].pwr_sts.eth_power_state_ack 00000000.
NP6XLITE: Error: xaui.sdsn[2].pwr_sts.eth_power_state_ack 00000000.
NP6XLITE: Error: xaui.sdsn[3].pwr_sts.eth_power_state_ack 00000000.

To resolve this issue:

• Do the hard reset (Format the unit with an external button) of FortiGate and allow the boot up again.
• Use the article below to check how to do a hard reset of FortiGate: Technical Tip: How To Reset To Factory Default Configuration using external button.

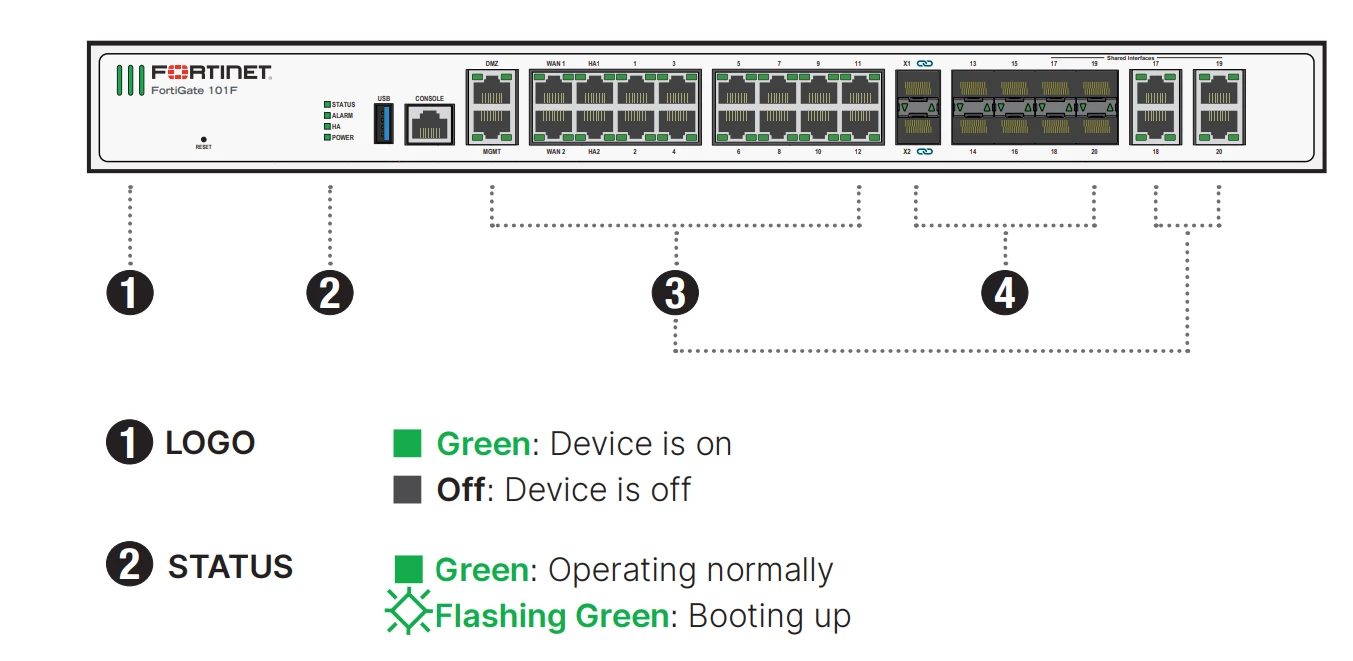

Below is the FortiGate 101F's front.

• Before doing a hard reset, take a valid backup.
• After doing this If the issue persists, open a ticket with Fortinet Support.
• Attach the console output to the ticket.
