Technical Tip: Decrypt ESP packets

Forum|Forum|6 years ago
April 17, 2020
0 replies
36430 views

Description

This article describes how to decrypt captured Encapsulated Security Payload (ESP) packets initiated or terminated on FortiGate using Wireshark.

Scope

FortiGate.

Solution

In some cases, network administrators need to track specific packets that are encrypted and transferred through IPsec VPN tunnels.

ESP packets can be captured from the GUI under Network -> Packet capture or from the CLI with the following command:

diagnose sniffer packet any "esp and host x.x.x.x" 6 0 a <----- Where x.x.x.x is the IP address of the remote gateway.

Note:

If the tunnel is configured at port 4500, then packet capture needs to be taken at port 4500.

diagnose sniffer packet any "port 4500 and host x.x.x.x" 6 0 a <----- Where x.x.x.x is the IP address of the remote gateway.

Use the following command to capture both esp and port 4500 with the remote host:

diagnose sniffer packet any "(esp or port 4500) and host x.x.x.x" 6 0 a <----- Where x.x.x.x is the IP address of the remote gateway.

After capturing traffic with full packet payload ('6 0 a in the command above) from the CLI, the output will not be Wireshark readable.

The sniffer output needs to be converted from text to a Wireshark-readable PCAP file.

To convert, follow the instructions described in this KB article: Technical Tip: How to import 'diagnose sniffer packet' data to WireShark.

To decrypt ESP packets, Security Association (SA) information needs to be available. List it from the CLI using this command:

diagnose vpn tunnel list

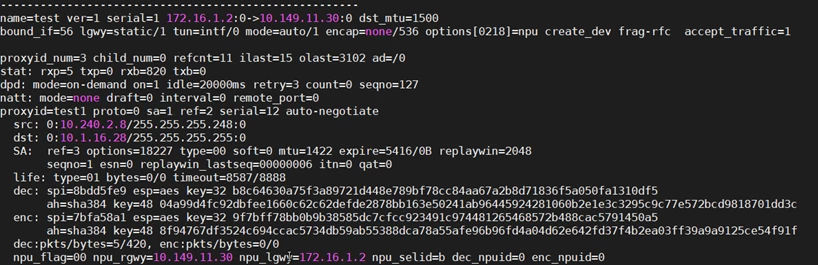

The output must be similar to this:

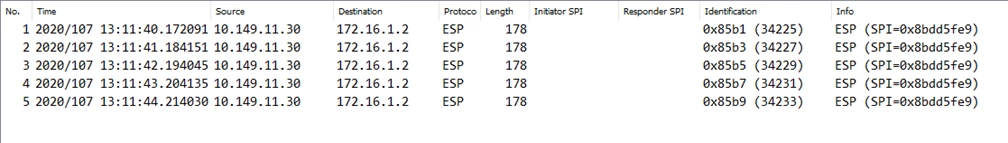

On Wireshark, open the PCAP file:

Note:

The Wireshark capture should exhibit traffic in a bidirectional state for ESP packets, and if traffic is seen only for one direction, then the decryption will not take place.

Make use of the filter in Wireshark: ip.src==x.x.x.x --->(Replace x.x.x.x with the local gateway IP, and again use the same filter to replace x.x.x.x with the remote gateway IP, and the protocol 'column' should show ESP in both cases to confirm that ESP packets are coming in from both source IPs).

Edit the protocol preferences as follows:

Go to Edit -> Preferences -> Protocol -> ESP.
Enable the last 3 check-boxes and select 'Edit' next to ESP SAs.

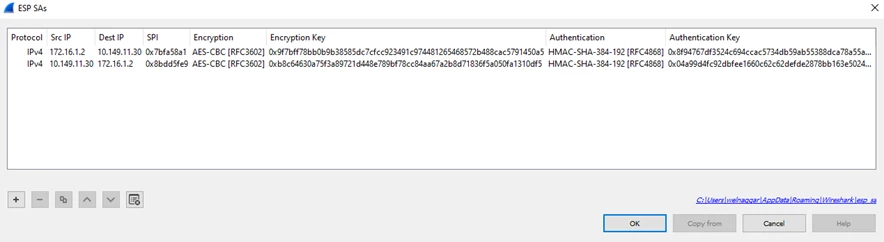

Create two entries for the incoming and outgoing SAs.

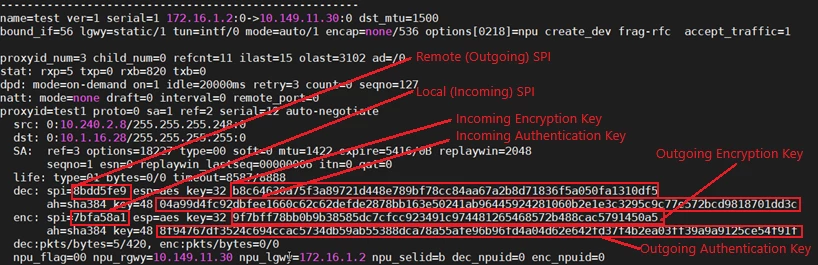

For each line, add the information obtained from the VPN tunnel list.

It is necessary to add 0x to the very beginning of every key; for example, 9f7bff78bb0b9b38585dc7cfcc923491c974 -> 0x9f7bff78bb0b9b38585dc7cfcc923491c974.

Outgoing ESP.

Protocol: Choose the IP protocol version, for example, IPv4.
Src IP: The IP address of the local gateway; for example, 172.16.1.2.
Dst IP: The Ip address of the remote gateway; for example, 10.149.11.30.
SPI: local SPI; for example, 0x7bfa58a1.
Encryption: Choose the encryption type from the drop-down that matches the used algorithm; for example, AES-CBC [RFC3602].
Encryption Key: The key after the encryption type; for example, 0x9f7bff78bb0b9b38585dc7cfcc923491c974481265468572b488cac5791450a5.
Authentication: Choose the authentication type from the drop-down that matches the used algorithm; eg. HMAC-SHA-384-192 [RFC4868].
Authentication Key: The key after the authentication type; for example, 0x8f94767df3524c694ccac5734db59ab55388dca78a55afe96b96fd4a04d62e642fd37f4b2ea03ff39a9a9125ce54f91f.

Incoming ESP.

Protocol: Choose the IP protocol version; e.g, IPv4.
Src IP: The IP address of the local gateway; e.g, 10.149.11.30.
Dst IP: The Ip address of the remote gateway; e.g, 172.16.1.2.
SPI: remote SPI; e.g, 0x8bdd5fe9.
Encryption: Choose the encryption type from the drop-down that matches the used algorithm; e.g., AES-CBC [RFC3602].
Encryption Key: The key after the encryption type; e.g, 0xb8c64630a75f3a89721d448e789bf78cc84aa67a2b8d71836f5a050fa1310df5.
Authentication: Choose the authentication type from the drop-down that matches the used algorithm; e.g, HMAC-SHA-384-192 [RFC4868].
Authentication Key: The key after the authentication type; e.g, 0x04a99d4fc92dbfee1660c62c62defde2878bb163e50241ab96445924281060b2e1e3c3295c9c77e572bcd9818701dd3c.

Finally, select 'OK'. All encrypted packets can now be viewed.

When NAT Traversal is enabled, the ESP traffic will be encapsulated as UDP/4500 packets. Wireshark can read UDP/4500 packets as ESP traffic and decrypt them using the method described above. In FortiOS 7.0 and above, FortiGate has the functionality to change the IKE port:

config system settings
set ike-port <integer>
end

If a custom port has been defined, Wireshark will not be able to decrypt the UDP-encapsulated ESP packets. To resolve this issue, 'right-click' on the UDP-encapsulated ESP packets, select Decode As..., select Current, and select UDPENCAP from the drop-down menu, then select 'OK' to save the change.

Wireshark will now read the custom port as UDP-encapsulated ESP traffic and can decrypt it.

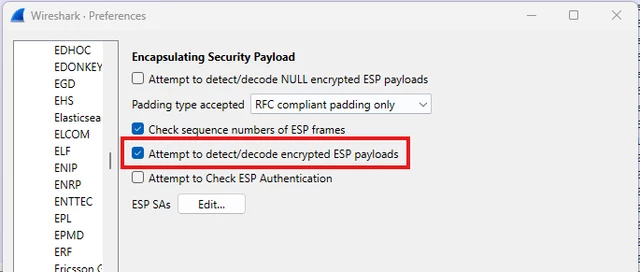

Also, make sure to check "Attempt to detect/decode encrypted ESP payloads" option in Wireshark. Otherwise, packets will not be decrypted. To enable this option in Wireshark, navigate to Edit -> Preferences -> Protocols -> ESP -> Enable "Attempt to detect/decode encrypted ESP payloads" -> Apply -> OK.

Note:

Suppose the IPsec encryption algorithm (Phase 2 Proposal) is set to AES-GCM. In that case, it may be necessary to select 'AES-GCM with 16 octet Integrity Check Value (ICV) [RFC4106]' under the Wireshark ESP SAs dropdown for Encryption (if the option specifying the ICV length is not present on Wireshark, try updating the Wireshark version).

To check the exact ICV length used, refer to the IKE debugs for the tunnel negotiation; otherwise, it will be necessary to use trial and error with different ICV lengths.

Here are some extracts of IKE debugs where the ICV length can be seen. In this case, the value is 16:

2025-10-17 12:42:59.824528 ike V=root:0:VPN1_ISP1:77895: initiator received SA_INIT response
...
2025-10-17 12:42:59.825484 ike V=root:0:VPN1_ISP1:77895: incoming proposal:
2025-10-17 12:42:59.825566 ike V=root:0:VPN1_ISP1:77895: proposal id = 1:
2025-10-17 12:42:59.825657 ike V=root:0:VPN1_ISP1:77895: protocol = IKEv2:
2025-10-17 12:42:59.825739 ike V=root:0:VPN1_ISP1:77895: encapsulation = IKEv2/none
2025-10-17 12:42:59.825819 ike V=root:0:VPN1_ISP1:77895: type=ENCR, val=AES_GCM_16 (key_len = 256)
...
2025-10-17 12:42:59.826063 ike V=root:0:VPN1_ISP1:77895: matched proposal id 1
...
2025-10-17 12:42:59.826376 ike V=root:0:VPN1_ISP1:77895: type=ENCR, val=AES_GCM_16 (key_len = 256)

The image below highlights the relevant option within Wireshark's preference settings. Encryption is configured as AES-GCM with a 16-octet ICV in accordance with [RFC4106], while Authentication is set to NULL.

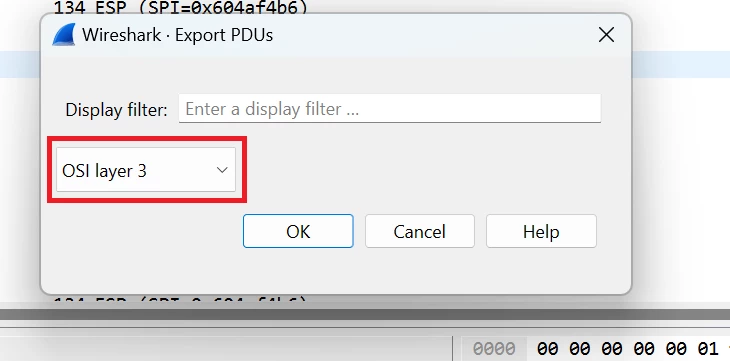

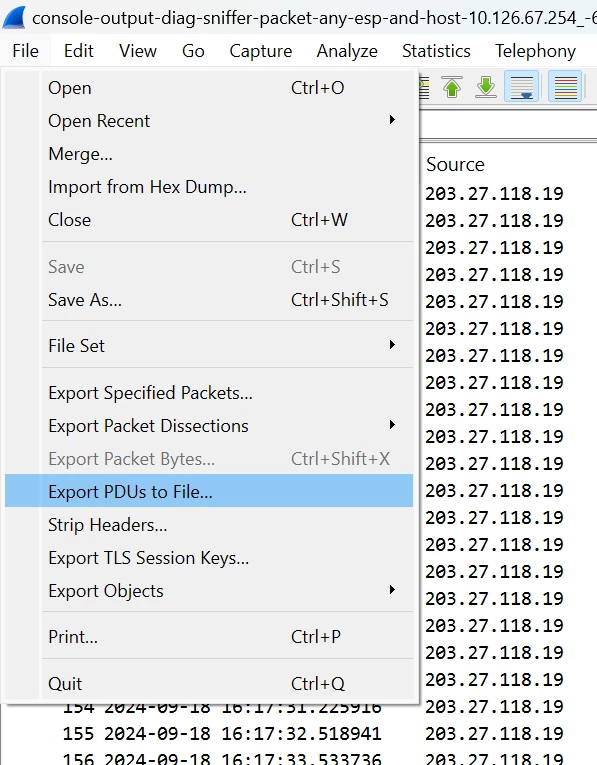

ESP preferences are local to the machine to which the details are added. To share the decrypted ESP packets with someone else, go to Wireshark, select File, export PDUs to File, and select OS I Layer 3 from the dropdown:
