Article Id 208876
Description

This article describes how to decrypt IPSec Phase-1(ISAKMP) packets.

Scope FortiGate.
Solution

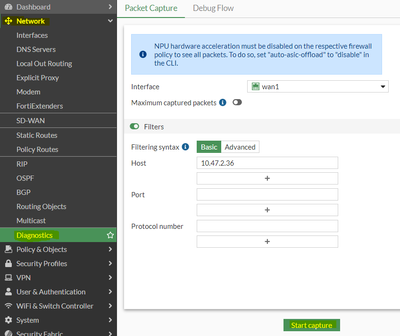

1). Start capture and enable filters in GUI -> Network -> Diagnostics > Packet Capture.






2). Enable the IKE debug and filter in CLI then restart the VPN tunnel that needs to be captured.



# diagnose vpn ike log-filter dst-addr4 10.47.2.36

# diagnose debug application ike -1

# diagnose debug enable



# diagnose vpn ike gateway clear name <phase1 tunnel name>



3). Stop the capture and debug on CLI. Save the packet capture.



# diagnose debug disable

# diagnose debug reset



4). On the CLI debug. Save the ISAKMP SA which will be used to decrypt the packets. It should look like the message below.



ISAKMP SA 44bccc59eacea672/3477d67621c2c4d5 key 16:5821AD4D929637E363BE4172EEA4C16A

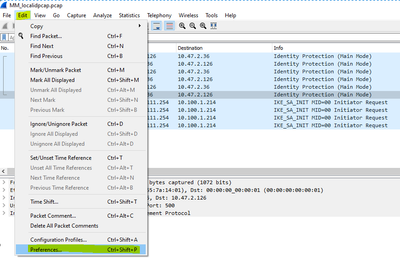

5). Open the pcap file on Wireshark. In Wireshark, go to Edit > Preferences.




6). Select Protocols -> ISAKMP -> Edit (In this case it is IKEv1).






7). Select the '+' button twice and add the SAs and their symmetrical key then press 'OK'.

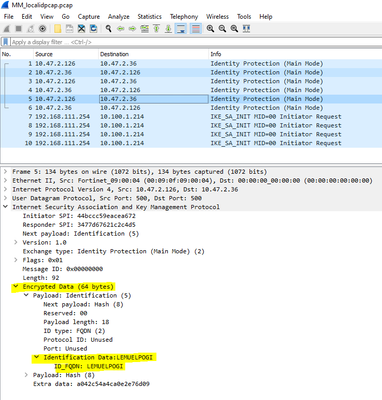

8). Now there is a decrypted Phase-1(ISAKMP) negotiation.
