Technical Tip: How to Monitor Virtual IP Current Bandwidth Utilization using FortiView Destination Firewall Objects

[adimailig]

Description	This article describes how to monitor Virtual IP current bandwidth utilization using FortiView Destination Firewall Objects.
Scope	FortiGate.

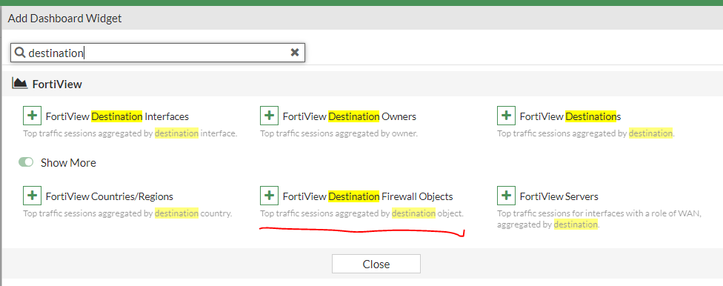

Solution	Realtime bandwidth utilization, Sessions, Source IP, etc., of configured and active Virtual IP, can be monitored using FortiView Destination Firewall Objects. To enable, add Widget or Monitor under Dashboard or FortiView. Note that this will only show the real-time (now) utilization of the Destination Firewall Objects. Selecting other timeframes is not supported. The below example assumes that there is already a Virtual IP configured and used on the Firewall Policy. Static virtual IPs Add a Widget on the Dashboard. Go to Dashboard -> Network -> Add Widget. Search for 'destination' and select/add 'FortiView Destination Firewall Objects'. Then 'Add Widget'.       Add Monitor on FortiView. Go to Dashboard. Select the '+' sign on FortiView then 'Add Monitor'.   Search for 'destination' and select/add 'FortiView Destination Firewall Objects'. Then 'Add Widget'. Drill Down Details. Filter Virtual IP name. Select to drill down or 'Right click' and select 'Drill Down to Details'.
