Technical Tip: POE power allocation process
| Description | This article describes a flowchart on how POE power allocation process works when any PD is connected to the FortiSwitch. |
| Scope | FortiSwitch v7.2 and above |
| Solution | Related documents: Configuring power over Ethernet on a port

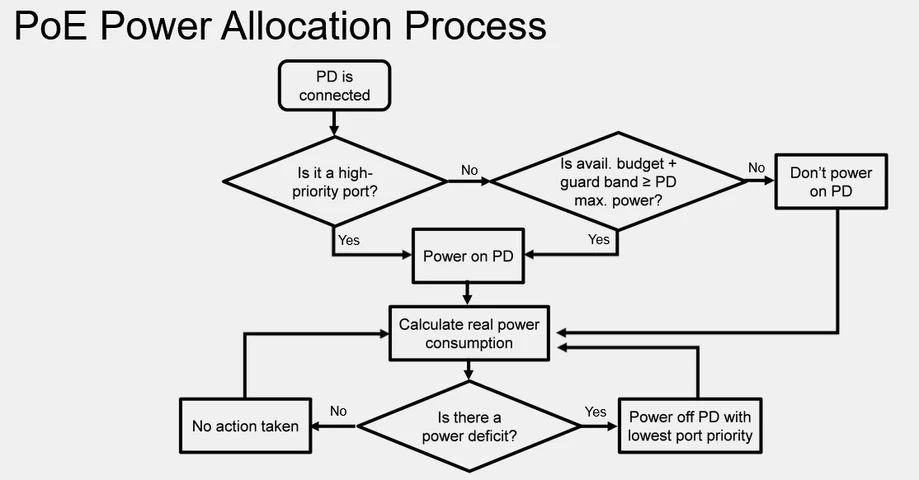

Refer to the below flowchart to understand POE power allocation process:
|
