Technical Tip: LDAP authentication on FortiProxy

  • July 7, 2020
  • 1 reply
  • 8043 views

Description


This article describes how to configure LDAP server and authentication scheme.

LDAP User authentication in Explicit-Proxy mode.

  • Configure the LDAP server.
  • Configure Authentication Scheme/rules and proxy auth settings.
  • Configure firewall policies with LDAP authentication by selecting the explicit mode.
  • Enabling proxy settings on the workstation and test the authentication.



Scope



FortiProxy

Solution

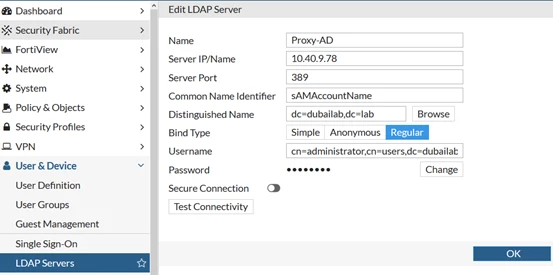

Configuring LDAP server.




config user ldap
    edit "Proxy-AD"
        set server "10.40.9.78"
        set cnid "sAMAccountName"
        set dn "dc=dubailab,dc=lab"
        set type regular
        set username "cn=administrator,cn=users,dc=dubailab,dc=lab"
        set password xxxxxx
    next
end

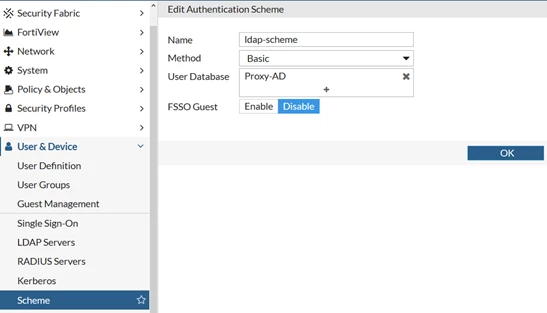

Configure Authentication Scheme.



config authentication scheme
    edit "ldap-scheme"
        set method basic
        set user-database "Proxy-AD"
    next
end

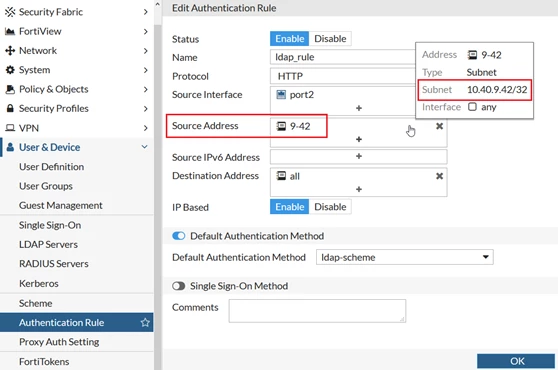

Configuring Authentication Rule.


For testing purposes source address is added as 10.40.9.42/32, LDAP users can authenticate from this IP address only.

config firewall address
    edit "9-42"
        set subnet 10.40.9.42 255.255.255.255
    next
end

config authentication rule
    edit "ldap_rule"
        set srcintf "port2"
        set srcaddr "9-42"
        set dstaddr "all"
        set active-auth-method "ldap-scheme"
    next
end

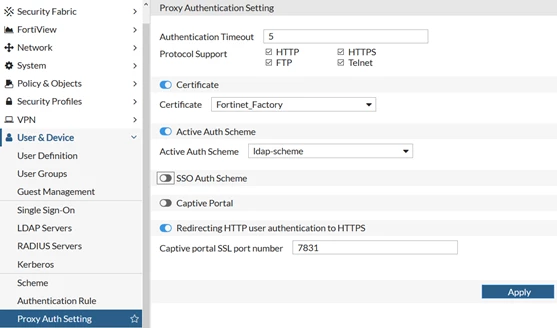

Configure Proxy Authentication Settings.


config authentication setting
    set active-auth-scheme "ldap-scheme"
end

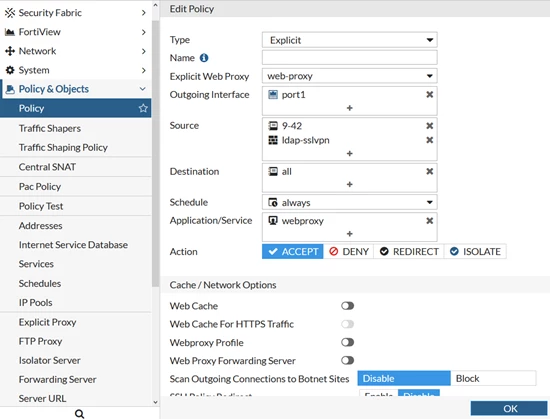

Configure firewall policies with LDAP authentication by selecting the explicit mode.




config firewall policy
    edit 1
        set type explicit-web
        set explicit-web-proxy "web-proxy"
        set dstintf "port1"
        set srcaddr "9-42"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "webproxy"
        set groups "ldap-sslvpn"
        set utm-status enable
    next
end

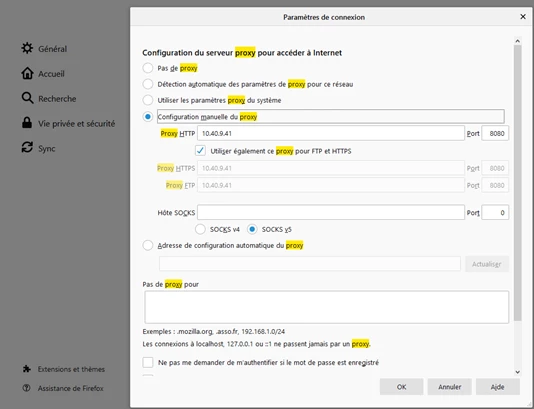

Configuring User browser and validation.


User authentication.

Once the user is authenticated, the user under FortiView -> User can be seen.




Note:

Only  HTTP, HTTPS, FTP, and Telnet protocols are supported by LDAP.



Troubleshooting:

Useful debug command:



diagnose wad filter src <source IP>

diagnose wad debug enable category auth

diagnose wad debug enable category policy

diagnose wad debug enable level verbose

diagnose debug application fnbamd -1

diagnose debug enable



To disable debug:



diagnose debug disable

diagnose debug reset



Then, run the below command on FortiProxy to verify whether user authentication working correctly with the LDAP server or not.


diagnose test authserver ldap <server_name> <username> <password>



Related document:

Configuring an LDAP server
