Technical tip: Export Persistent Agent configuration from Windows hosts

  • May 10, 2022
  • 0 replies
  • 668 views
Description



This article describes how to export the Persistent Agent configuration from a windows host.

This is useful for sharing with TAC when performing Persistent Agent troubleshooting.



Scope



FortiNAC.



Solution

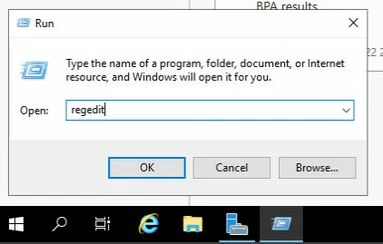

1) Open Windows registry editor:

Press WIN+R and type 'regedit'.

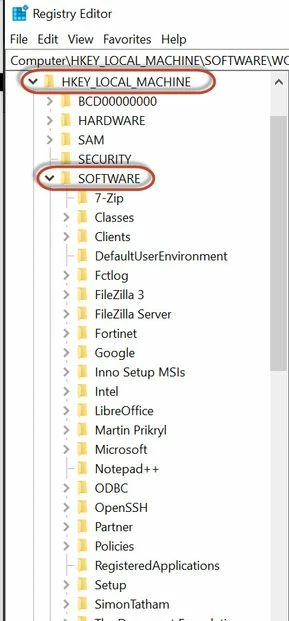

2) Navigate to HKLM\Software\Bradford:

Networks\Client Security Agent.


Note.

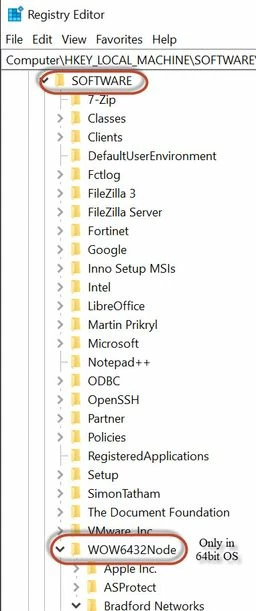

On 64-bit operating systems in RegEdit, these registry values will appear in the following

key:



HKLM\Software\wow6432node

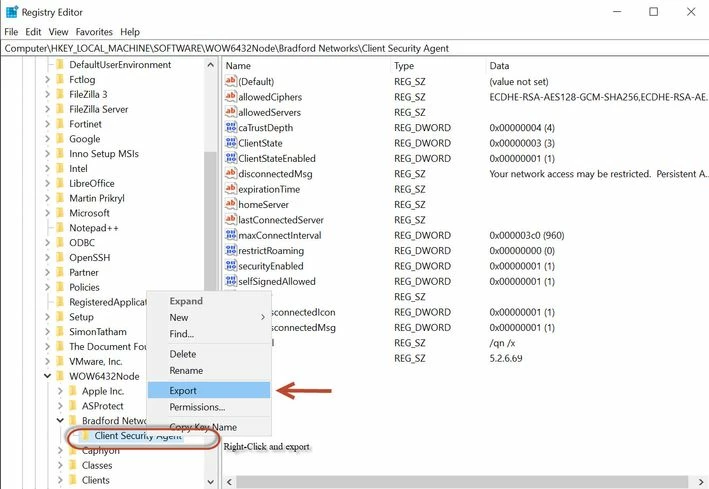

3) Select with right-click 'Client Security Agent' folder and export.








Save the file and share it.



Related document:
https://docs.fortinet.com/document/fortinac/9.2.0/administration-guide/613843/persistent-agent-on-windows
