| SCEP Configuration: config vpn certificate ca
edit "CA_Cert_1"
set range global
set scep-url "https://82.218.17.22/cert/scep"
set last-updated 1743459249
next
end
The output of the following debug commands should be collected in order to confirm the error:
diagnose debug console timestamp enable
diagnose debug application scep -1
diagnose debug enable The following errors are observed in debug log output: FortiGate# 2025-11-28 07:47:20 __scep_get_ca_cert: starting sscep, version 20030417
2025-11-28 07:47:20 __scep_get_ca_cert: hostname: 82.218.17.22
2025-11-28 07:47:20 __scep_get_ca_cert: directory: /app/cert/scep/
2025-11-28 07:47:20 __scep_get_ca_cert: port: 443(https)
2025-11-28 07:47:20 __get_ca_cert_req: SCEP_OPERATION_GETCA
2025-11-28 07:47:20 __get_ca_cert_req: requesting CA certificate, msg: GET /app/cert/scep/?operation=GetCACert&message=CAIdentifier HTTP/1.0
Host: 82.218.178.22
Connection: close 2025-11-28 07:47:20 __send_recv: dest ip 82.218.17.22, port 443, use_ssl 1, source_ip 0
2025-11-28 07:47:20 __ssl_cert_verify_cb: Certificate verification preverify_ok = 0, depth = 0, subject = 'CN = *.category.co.at'
2025-11-28 07:47:20 __ssl_cert_verify_cb: Certificate verification failed, error 20 (unable to get local issuer certificate)
2025-11-28 07:47:20 __ssl_cert_verify_cb: untrusted CA but let it pass
2025-11-28 07:47:20 __ssl_cert_verify_cb: server cert ok?1
2025-11-28 07:47:20 __ssl_cert_verify_cb: Certificate verification preverify_ok = 0, depth = 0, subject = 'CN = *.category.co.at'
2025-11-28 07:47:20 __ssl_cert_verify_cb: Certificate verification failed, error 64 (IP address mismatch)
2025-11-28 07:47:20 __ssl_cert_verify_cb: server cert ok?0

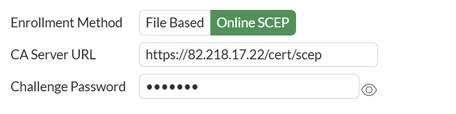

2025-11-28 07:47:20 __send_recv: tcps_connect failed. (ssl_connect() failed: 167772294 (error:0A000086:SSL routines::certificate verify failed)) Workaround: When generating CSR for SCEP, use 'http' instead of 'https' in 'CA Server URL'. Before the change:
config vpn certificate ca
edit "CA_Cert_1"
set range global
set scep-url "https://82.218.17.22/cert/scep" ------------->>
set enroll-protocol scep
set auto-regenerate-days 7
set auto-regenerate-days-warning 14
next
end
After the change:
config vpn certificate ca
edit "CA_Cert_1"
set range global
set scep-url "http://82.218.17.22/cert/scep" <-----
set enroll-protocol scep
set auto-regenerate-days 7
set auto-regenerate-days-warning 14
next
end
This is identified as a known issue ID:1142387, which has been resolved in firmware version 7.6.5. Related article: Technical Tip: FortiGate Certificate enrollment and renewal using SCEP |
