Troubleshooting Tip: GUI Error when adding the ssl.root Interface to a Route Map

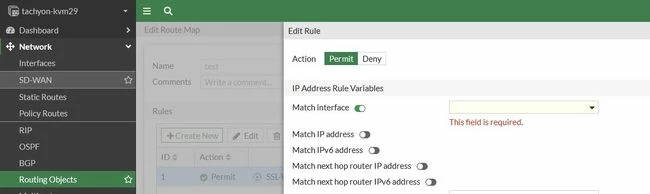

If there is a requirement to match the ssl.root interface in the route map, the configuration can be performed through the CLI. However, an error is encountered when attempting the same action through the GUI.

This GUI error, where the interface is not displayed as expected, is only a cosmetic issue and does not impact functionality:

config router route-map
    edit "test"
        config rule
            edit 1
                set match-interface "ssl.vdom1"
                unset set-ip-prefsrc
            next
        end
    next
end

This is identified as a known issue: 1142290 and is observed in versions 7.0.14, 7.2.11, 7.4.7, and earlier. It has been resolved in versions 7.4.9, 7.6.4, 8.0.0, and later.
