| If the connectivity between Hub and Spoke is as expected, capture IKE debug logs to further analyze the details for the ADVPN shortcut.
HUB:
2024-11-29 09:06:17.664997 ike V=root:0: shortcut Hub_1:10.9.11.9510.9.11.95:0 to Hub_2:10.9.10.111:0 for 192.168.123.22->192.168.133.1 0 2024-11-29 09:06:17.665767 ike 0 ike_ui_admin_caps_trigger sport 2048, dport 0, proto 1, iif 25 2024-11-29 09:06:17.666301 ike V=root:0 send shortcut-offer to Hub_1 2024-11-29 09:06:17.666736 ike 0:Hub_1:58: enc 917CA6352F2BFADA4C2C93144219611A0810050136541FDA000000F40B000024C926F6B6478F1CC2560D13AA99CA3794A3AD3E9FABD6197C68FF628F BC41CBD3000000B40000000001007DFBEFBEADDE000000000100000000010004C0A87B1600030004C0A88501000700408E9D36EF852F9ACD64DEE18EF717E9737C79178487D51C2140CF9C29ADFD6DD3A12552F 29F97EEDCC247E03EC2921BC97487BAC7AA08C81C7355FA32BE5C29AD000B000101000000000C0001000100000010000100000000000D00040A090A6F000F000200006D69001600020800206300170002000000 0000180001010000000019000419000000 2024-11-29 09:06:17.669441 ike 0:Hub_1:58: out 917CA6352F2BFADA4C2C93144219611A0810050136541FDA000000FC88973EA636F84C030A4729204A87A1CC42163A9507975A6E42A6FBFFFD508C79 48338B9A0573B4894884FDCBFCB1E61B4A1B3CF2D899C49FECC939D70E31246CD5DA17B19F478301D0EE73DF01E4D0C40521C6C2016934136865DD6FF0A055A9AF8C231C6144E6ED32AE725C1645E146C1C3B5E FB81AEA8727E569AC099A4BEB4473061623F0869B54BA96AC2D9B73AD2795131CD84419D521A109048A44815C8D28D1D811BD708A4E4836B2BDC71565AE87750E5024BAE274660D881A75E3E7F3BA546DF7651D FB81AEA8727E569AC099A4BEB4473061623F0869B54BA96AC2D9B73AD2795131CD84419D521A109048A44815C8D28D1D811BD708A4E4836B2BDC71565AE87750E5024BAE274660D881A75E3E7F3BA546DF7651D 04DBE72B29C53C8A8868346D942A3F06BA71BB5206DD9C9DEB 2024-11-29 09:06:17.672196 ike V=root:0:Hub_1:58: sent IKE msg (SHORTCUT-OFFER): 10.9.11.33:500->10.9.11.95:500, len=252, vrf=0, id=917ca6352f2bfada/4c2c93144219611a:3 6541fda 2024-11-29 09:06:17.688432 ike V=root:0: comes 10.9.11.95:500->10.9.11.33:500,ifindex=4,vrf=0,len=300.... 2024-11-29 09:06:17.689057 ike V=root:0: IKEv1 exchange=Informational id=917ca6352f2bfada/4c2c93144219611a:b6ff971f len=300 vrf=0 2024-11-29 09:06:17.689763 ike 0: in 917CA6352F2BFADA4C2C93144219611A08100501B6FF971F0000012CF24F4D1AAFA181052A82B477D1988DEFAF39EA062E4C4579357C7EDE48C2FA23DB55E1B1EC 2EDEF0A4814E4C3468397263F111633C97A7CD78DEF098DE07B649F948763195A46B2EB7F9705AB2CBF3F3E8037B946539E30749082B05BE08DAD41B1F7366E818B9CEA8FDBCC0E7B90F8C248036D51DD4D06DB F14B85399D1D47915E8B596593F09331B7F0BF19321CAB684E562E5D5AE6D5A84AACCCC8281E1E212B86F47F4CA50BEAA17EC5FB6A652EB4568549AC923110ED29285B7377C4E92AC429402E40881DB324661DF 618FD4583B7CBB73820292E90F14E088F8198D7B0A570F04A84346E716BDE1377BED6F6E47BEE004C4C9A7EBB03A34FBC1F2C1A6FC0A125D4B438854999633746D435A64 2024-11-29 09:06:17.692896 ike 0:Hub_1:58: dec 917CA6352F2BFADA4C2C93144219611A08100501B6FF971F0000012C0B000024F268065FF88942DA02628005339742AC9B07DA49B0353F516009CA81 94F04D1E000000E81100000001007DFCB7C3AF335A6C8531200000000008001009DA6D185F230DA40000000000000000001B0024000000000000000000000000000000000000000000000000000000000000000 00000000000010004C0A87B1600030004C0A88501000500040A090B5F00160002080000000017000200000000000700408E9D36EF852F9ACD64DEE18EF717E9737C79178487D51C2140CF9C29ADFD6DD3A12552 F29F97EEDCC247E03EC2921BC97487BAC7AA08C81C7355FA32BE5C29AD000B000101000000000C000100000000001000010000000000110001000000000012000100000000AABAD403 2024-11-29 09:06:17.696054 ike V=root:0:Hub_1:58: notify msg received: SHORTCUT-QUERY 2024-11-29 09:06:17.696554 ike V=root:0:Hub_1: recv shortcut-query 3568377414430999479 09da6d185f230da4/0000000000000000 10.9.11.95 192.168.123.22:2048->192.168.133.1: 0 0 psk 64 ppk 0 ttl 32 nat 0 ver 1 mode 0 network-id 0 2024-11-29 09:06:17.698312 ike V=root:0:Hub_1: forward shortcut-reply 3568377414430999479 09da6d185f230da4/bb726c34209edd6d 10.9.10.111 to 192.168.123.22 0 psk 64 ppk 0 ttl 31 ver 1 mode 0 ext-mapping 10.9.10.111:0 2024-11-29 09:06:17.699459 ike 0:Hub_1:58: enc 917CA6352F2BFADA4C2C93144219611A081005015302AC3A000001300B0000240EEA06533F43A78E71ADD502AC2F68A17E1DFB4A2E9A2F48E3608729 61A20618002300F00000000001007DFDB7C3AF335A6C85311F00000000010004C0A8850100030004C0A87B16000500040A090A6F000D00040A090A6F000F0002000000040008001009DA6D185F230DA4BB726C3 4209EDD6D001B0024000000000000000000000000000000000000000000000000000000000000000000000000000700408E9D36EF852F9ACD64DEE18EF717E9737C79178487D51C2140CF9C29ADFD6DD3A12552 F29F97EEDCC247E03EC2921BC97487BAC7AA08C81C7355FA32BE5C29AD000B000101000000000C0001000000000010000100000000001100010000000000130001000000000014000100000000 2024-11-29 09:06:17.702659 ike 0:Hub_1:58: out 917CA6352F2BFADA4C2C93144219611A081005015302AC3A0000013CBFA07556456001DE9E5585DA24EC153A656C69D7178680C3BB4470DCDDA2E82B 886E4881BB22ED0AB92D344BE246AEEF68EE10C117C8172D40260DC7A6D54AC767F721932C481CC9310C3D5EABCF5B32C90D282E7353CDACCF7D5BA7ECB83E1FACFF3E784CDCE64EAC04F21522511FDFF53C40F 41A3E17F1F99B3794AE168F102B3D2D5AAA4160BDC0E135E8552CD14812DE45AB2AFA6D75D2AB7F75063B0D12DD962D207F012EB97B0430CB728EE4368554E59AC7B9DEB678109A0D8032ABDA32003B880A4B79 8B01A6EA4F57AB998A98EDAAEDD03943CD12720880175DF6AD635A56C4B184939F6F5E1966A576EAA63A2D58866C69A3D78E21ED88F70B891F9EADF611623BE6534F7DC5248B4D69D9DBC9B9415F5C601645A0E C59644267E7 2024-11-29 09:06:17.705945 ike V=root:0:Hub_1:58: sent IKE msg (SHORTCUT-REPLY): 10.9.11.33:500->10.9.11.95:500, len=316, vrf=0, id=917ca6352f2bfada/4c2c93144219611a:5 302ac3a 2024-11-29 09:06:27.662888 ike :shrank heap by 159744 bytes
Capture the debug output on the spoke to collect the shortcut negotiation: FGT SDW 1 # diagnose debug reset FGT SDW 1 # diagnose vpn ike log-filter clear FGT SDW 1 # diagnose vpn ike log-filter mdst-addr4 x.x.x.x y.y.y.y FGT SDW 1 # diagnose debug application ike -1 FGT SDW 1 # diagnose debug console timestamp enable FGT SDW 1 # diagnose debug enable
Starting from FortiOS 7.4.1, the log filter commands have been changed (see Troubleshooting Tip: IPsec Tunnel (debugging IKE)).
diagnose vpn ike log filter mrem-addr4 x.x.x.x y.y.y.y
The above IKE debug command on Spoke-1 is filtered for multiple IP addresses (mrem-addr4): - ISP1 IP address of the Hub (x.x.x.x).
- ISP1 IP address of Spoke-2 (y.y.y.y).

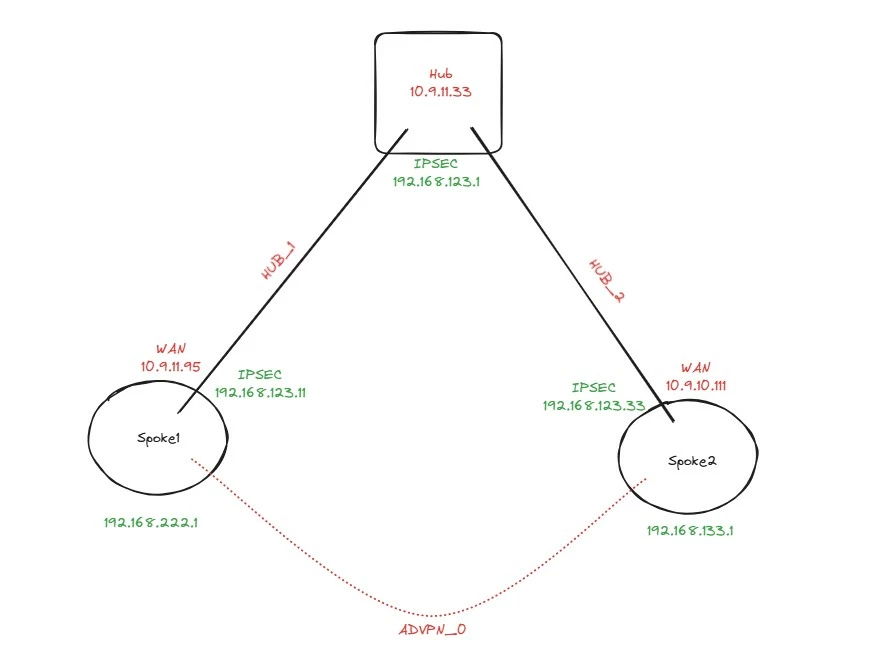

It allows capturing the shortcut negotiation between Spoke1↔Hub as well as the shortcut tunnel establishment between Spoke-1<->Spoke-2. Next, trigger the shortcut by sending traffic from the Spoke-1 source to the Spoke-2 destination. Wait for 15 seconds and then stop the debugging: diagnose debug reset Verify and view whether packets are being forwarded via the created shortcut: diagnose sniffer packet any "host <destination_ip> and icmp" 4 0 l | grep <tunnel-interface-name>
Verify whether the new connected route via the shortcut is installed in the routing table: get router info routing-table all

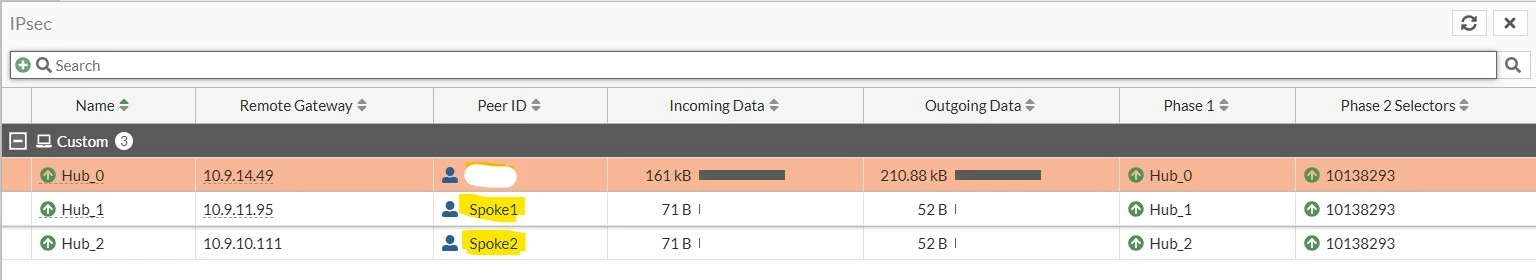

The command below will list the shortcut created and the parent IPsec tunnel. get vpn ipsec tunnel summary
|
