Troubleshooting Tip: Adding interface in different VDOM

Description

This article describes the reason why the interfaces are not in use but cannot be added to a different VDOM.

Scope

FortiGate.

Solution

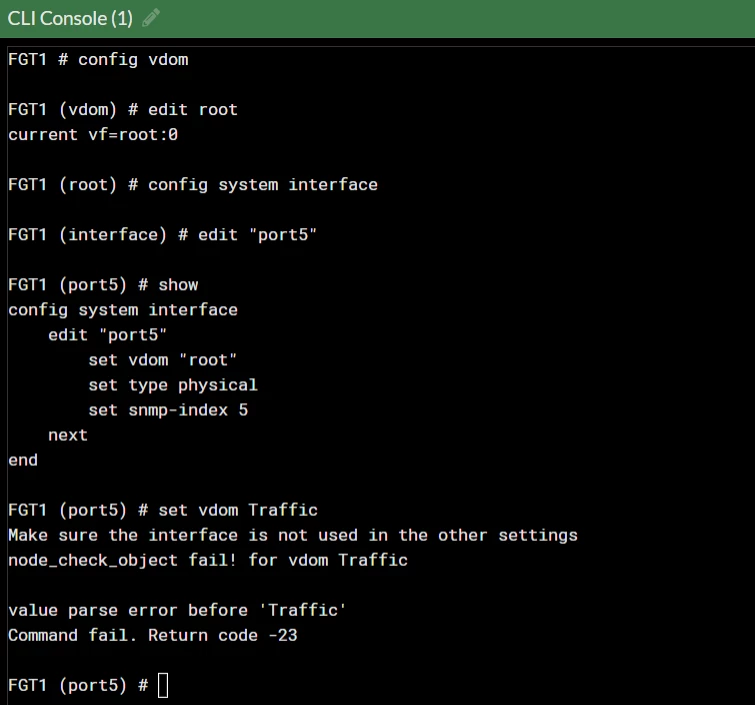

In this case, port 5 is not in use but when trying to assign to another VDOM, the error can be seen.

vdom interface.PNG



This happens due to the interface is being referenced in other settings. To check the reference of the interface, refer to the following articles:
Technical Note: How to Check Referenced Objects
Troubleshooting Tip: Verifying FortiGate configuration object references and dependencies

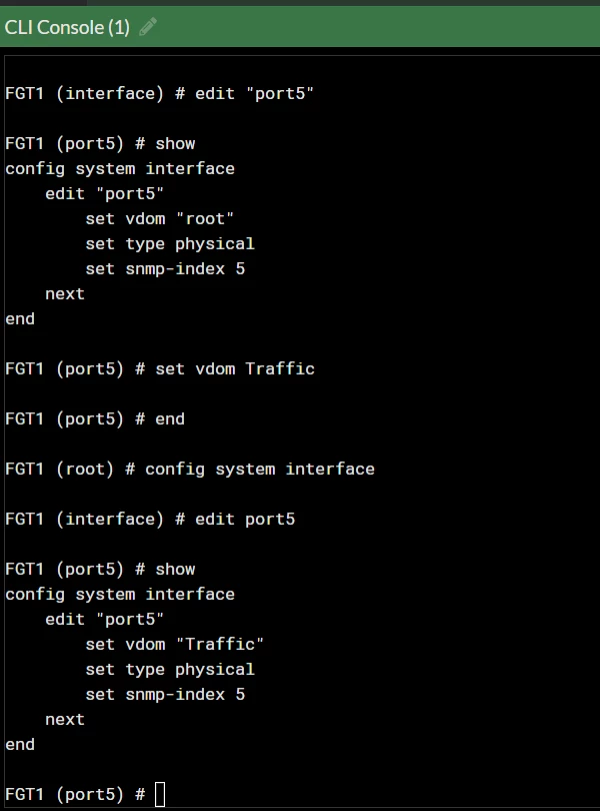

After all of the references are removed, the interface will be able to move to different VDOMs.


added interfaces.PNG
