Technical Tip: Using multihop bidirectional forwarding detection (BFD)

BFD is UDP based  protocol that helps in detecting faults  in the bidirectional path between two devices.

It is defined in RFC 5880.

After detecting the link fault through BFD, the upper-layer protocol (here BGP) can take measures to promptly rectify the fault.

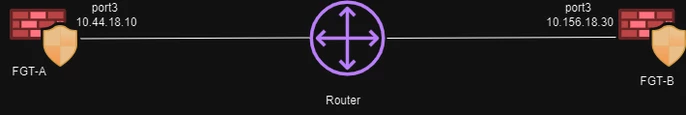

Multihop-template config is required to make BFD work over multiple hops.

FGT-A.

config router bfd

    config multihop-template

        edit 1

            set src 10.0.0.0 255.255.192.0

            set dst 10.156.0.0 255.255.192.0

            set auth-mode md5

            set md5-key set md5-key <key>

        next

    end

end

config router bgp

    set as 65050

    set router-id 2.2.2.2

        config neighbor

            edit "10.156.18.30"

                set bfd enable

                set ebgp-enforce-multihop enable

                set soft-reconfiguration enable

                set remote-as 65412

            next

    end

FGT-B.

config router bfd

    config multihop-template

        edit 1

            set src 10.156.0.0 255.255.192.0

            set dst 10.0.0.0 255.255.192.0

            set auth-mode md5

            set md5-key <key>

        next

    end

end

config router bgp

    set as 65412

    set router-id 1.1.1.1

        config neighbor

            edit "10.0.18.10"

                set bfd enable

                set ebgp-enforce-multihop enable

                set soft-reconfiguration enable

                set remote-as 65050

            next

    end

BFD neighborship can be verified using the following commands.

FGT-B # get router info bfd neighbor

OurAddress      NeighAddress    State       Interface       LDesc/RDesc

10.156.18.30    10.0.18.10      UP          port3           2/2/M

FGT-A # get router info bfd neighbor

OurAddress      NeighAddress    State       Interface       LDesc/RDesc

10.0.18.10      10.156.18.30     UP          port4           2/2/M

Note:
Keep in mind that multihop BFD uses UDP port 4784, normal BDD uses UDP 3784.
If for BFD is used loopback , make sure that the proper rules are configured and traffic to/from loopback is allowed for UDP 4784.

For BFD troubleshooting, refer to Technical Tip: Bi-directional Forwarding Detection failure detection timer. BFD Multihop traffic may drop by the local-in policy.
