Technical Tip: Security profiles enhancements

  • October 10, 2020
  • 0 replies
  • 1848 views

Description



This article describes the following features:

To more clearly show the features specific to proxy-based mode, use the new feature set option to select 'Flow-based' or 'Proxy-based'.
When 'Flow-based' or 'Proxy-based' is selected, only the features for that mode are available.



Scope



FortiGate.

Solution



The following pages have the Feature set option.



  • Security Profiles -> AntiVirus.
  • Security Profiles -> Web Filter.
  • Security Profiles -> Email Filter.
  • Security Profiles -> Data Leak (CLI only).
  • Policy & Objects -> Protocol Options.

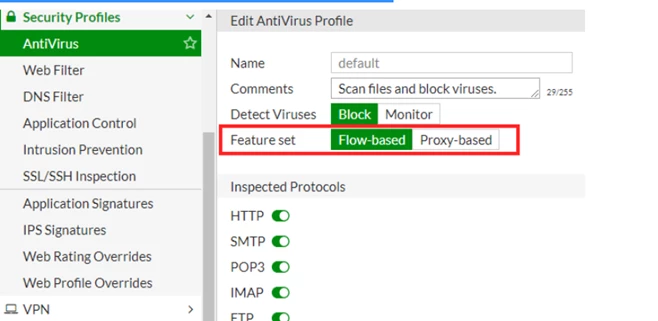

Example of the Feature set option in Security Profiles  -> AntiVirus.

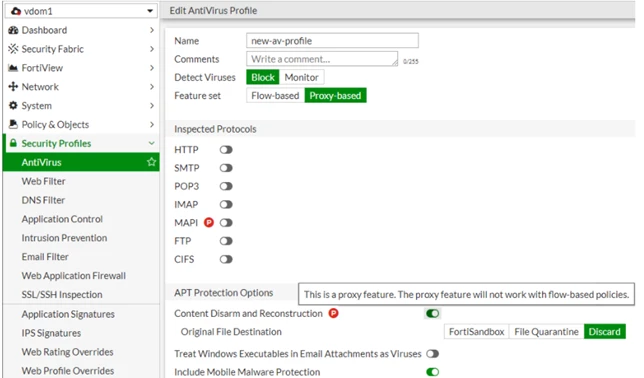

If 'Proxy-based' is selected, a red 'P' icon indicates the proxy-only features.


When firewall policies are configured.

  • If the inspection mode is flow-based, the dropdown menus only display profiles with flow-based feature sets.
  • If the inspection mode is proxy-based, the dropdown menus display profiles with flow-based or proxy-based feature sets.

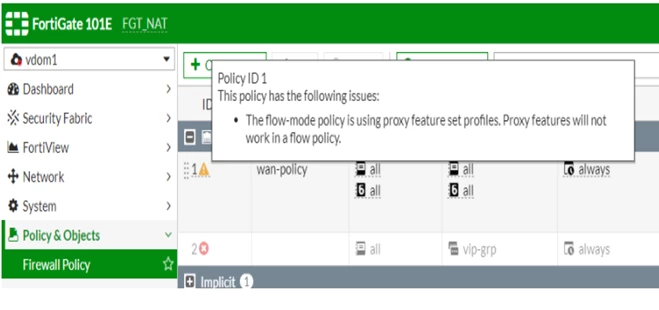

If a flow-based inspection policy has a proxy-based profile assigned, a warning icon and tooltip inform that proxy features do not work in a flow-based policy. This warning also appears when the CLI is used to assign security profiles.
