Technical Tip: Outgoing interface selection for RADIUS using Local out routing

To configure the outgoing interface for RADIUS using Local out routing, the option has to be enabled explicitly.

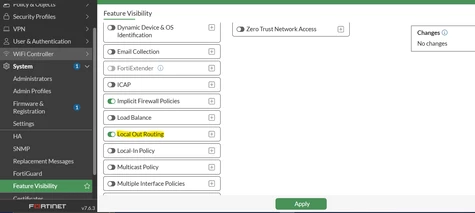

From Feature visibility, enable Local out routing.

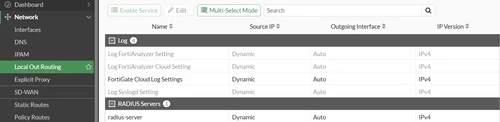

Once it is enabled, it will be available under the Network option.

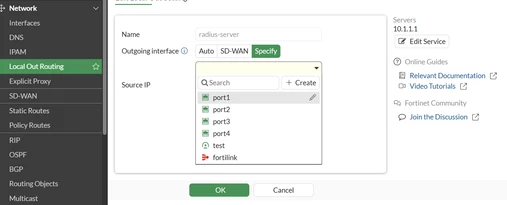

Edit the available RADIUS server and set the specific outgoing interface.

By the above setting, the RADIUS traffic will use the specified outgoing interface.

CLI commands:

config user radius

edit "radius-server"

set interface-select-method specify
set interface "port1"

end
