Technical Tip: Modify default firewall policy columns

Use this option to change the default firewall policy column settings and select which columns are displayed.

Note: from 7.0 there is a change of naming:

Previous versions: 'srcaddr', 'dstaddr', 'source', 'destination', 'poolname'.

Current verion: 'consolidated-srcaddr', 'consolidated-dstaddr', 'consolidated-source', 'consolidated-destination', 'consolidated-poolname'.

CLI:

config system settings

    set gui-default-policy-columns "av-profile" "name" "ips-sensor"

end

Example:

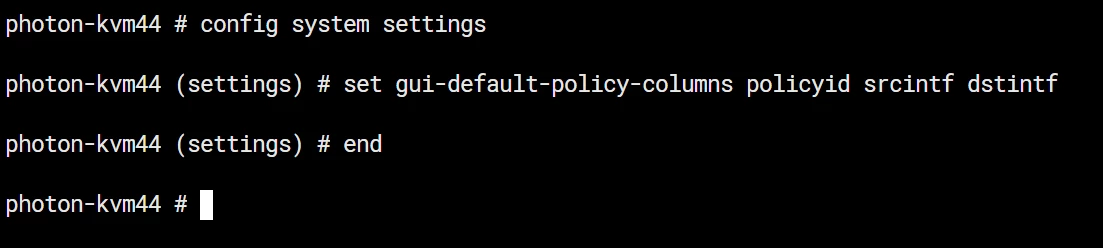

Current config:

To modify, see screenshot below.

Result:

In certain situations, the options may not update correctly when modifying an existing configuration. In such cases, consider using the 'unset' command before applying the new options with the 'set' command.

For example, current config:

config system settings

    set gui-default-policy-columns "policyid" "name" "consolidated-srcaddr" "profile" "service" "action" "consolidated-poolname" "bytes"

end

To modify:

Step 1: unset.

config system settings

    unset gui-default-policy-columns

end

Step 2: set.

config system settings

    set gui-default-policy-columns "policyid" "service" "action" "profile" "bytes" "name" "consolidated-poolname" "consolidated-srcaddr" "consolidated-dstaddr"

end
